Description

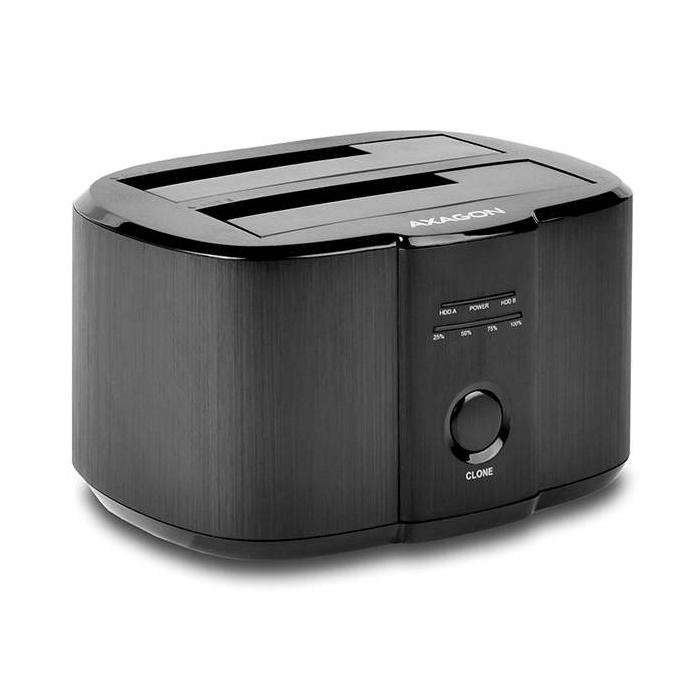

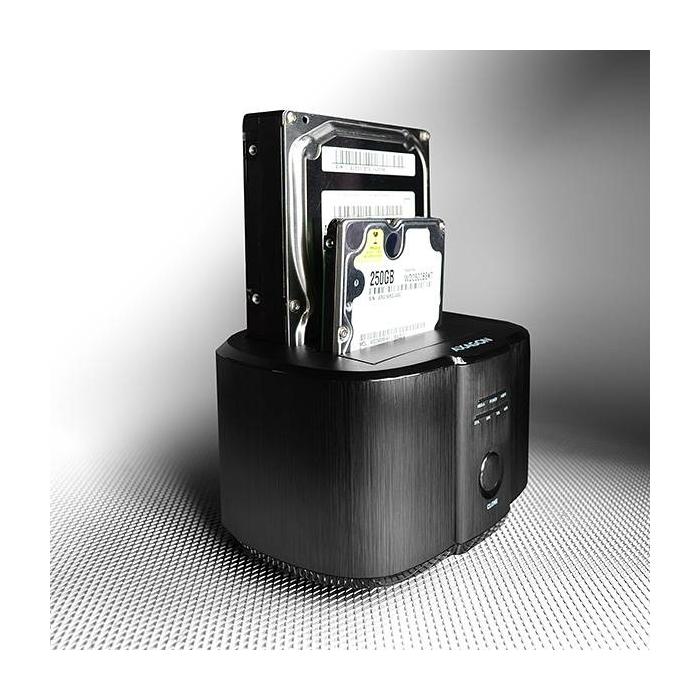

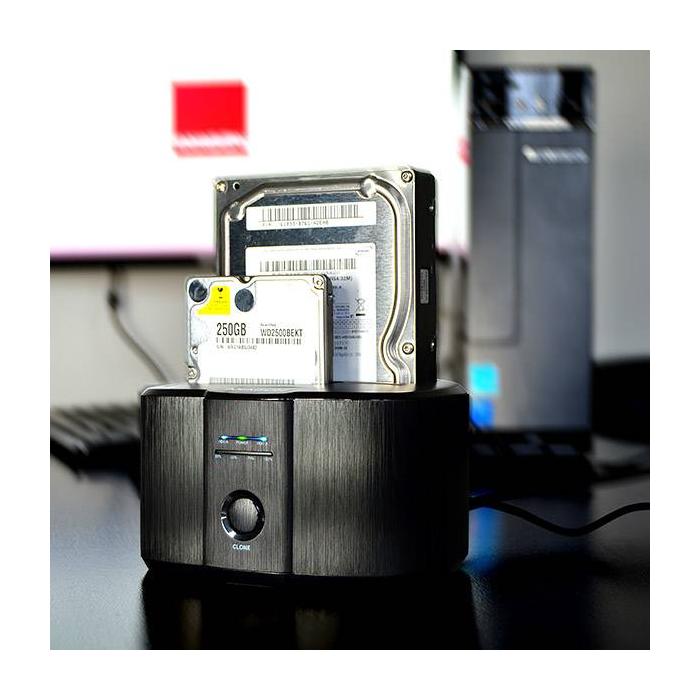

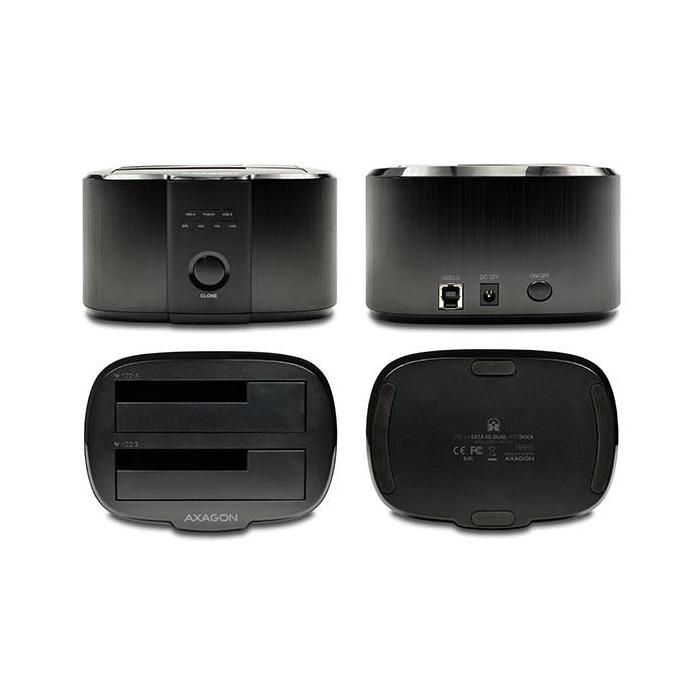

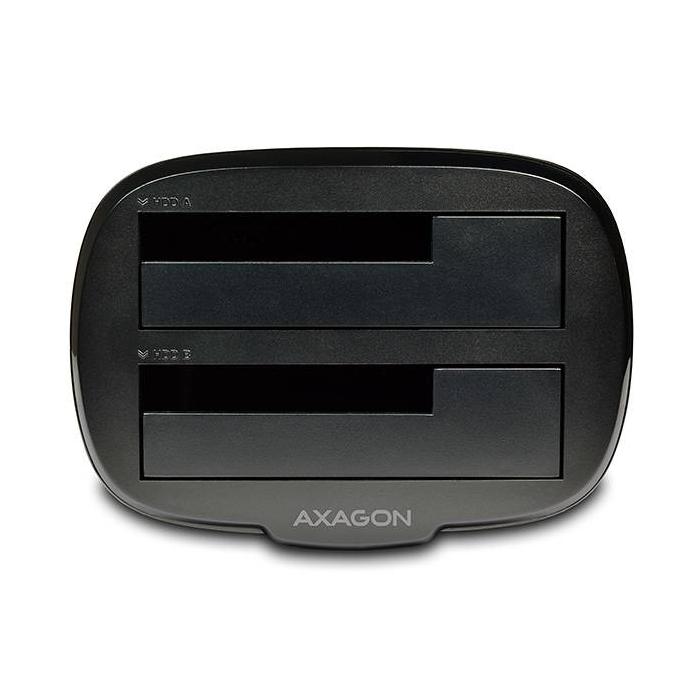

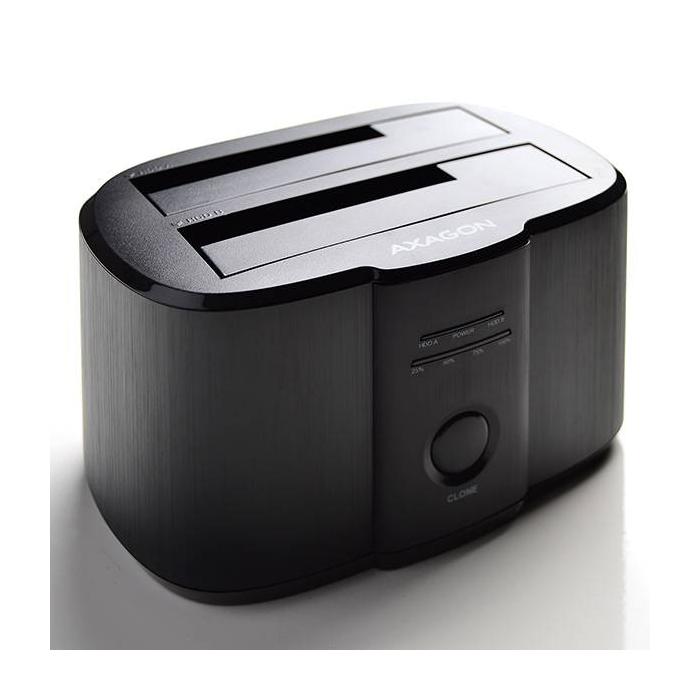

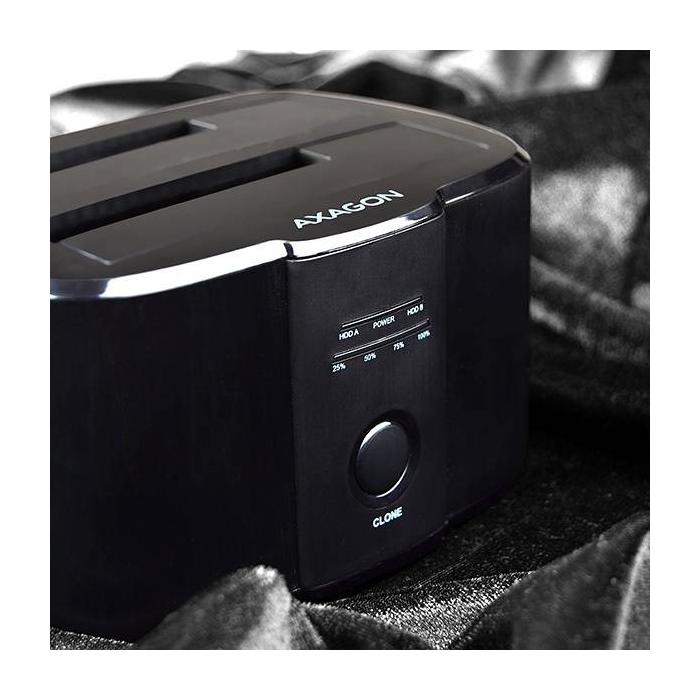

AXAGON ADSA-ST hard drive docking station allows connecting 2.5 and 3.5 inch SATA drives, both hard drives and SSDs, and supports up to two compatible drives at once. Its black colour and aluminium body give it a sober look, with dimensions of 142 x 80 x 102 mm (width x height x depth) and a weight of 330 g that keep it stable on the desk. The host interface is USB 3.2 Gen 1 (3.1 Gen 1) Type-B, with one USB port, and it reaches a maximum transfer rate of 5 Gbit/s. It features a power on/off switch, LED indicators and hot-swap and Plug and Play functions to start working without complications. It also offers S.M.A.R.T. support, TRIM support and UASP support, useful for the maintenance and performance of the installed drives. It has a DC power input connector and CE and FCC certification.
Specifications
Hard drive
- Storage media type: HDD, SSD
- Storage drive interface: Serial ATA, Serial ATA II, Serial ATA III
- Storage drive sizes supported: 2.5, 3.5"
- Number of storage drives supported: 2
Ports & interfaces

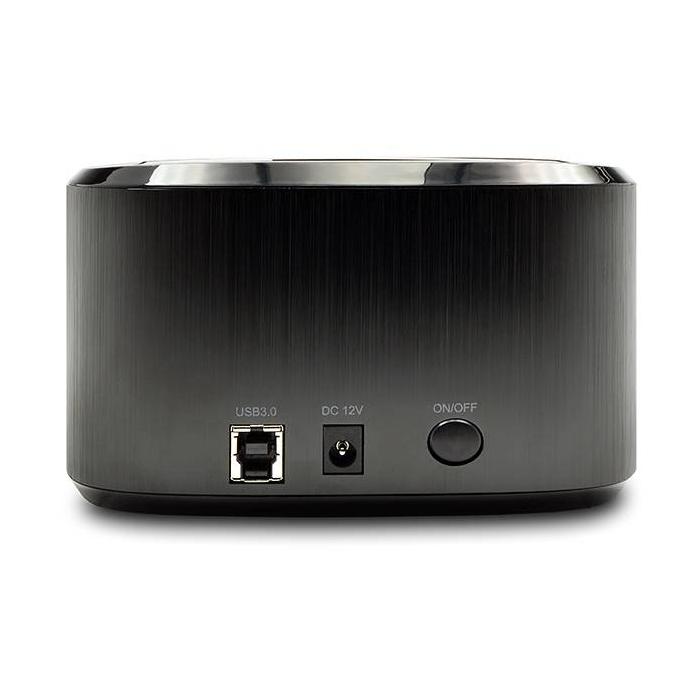

- Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B
- USB 3.2 Gen 1 (3.1 Gen 1) ports quantity: 1
- DC-in jack: Yes
Features
- S.M.A.R.T. support: Yes
- TRIM support: Yes

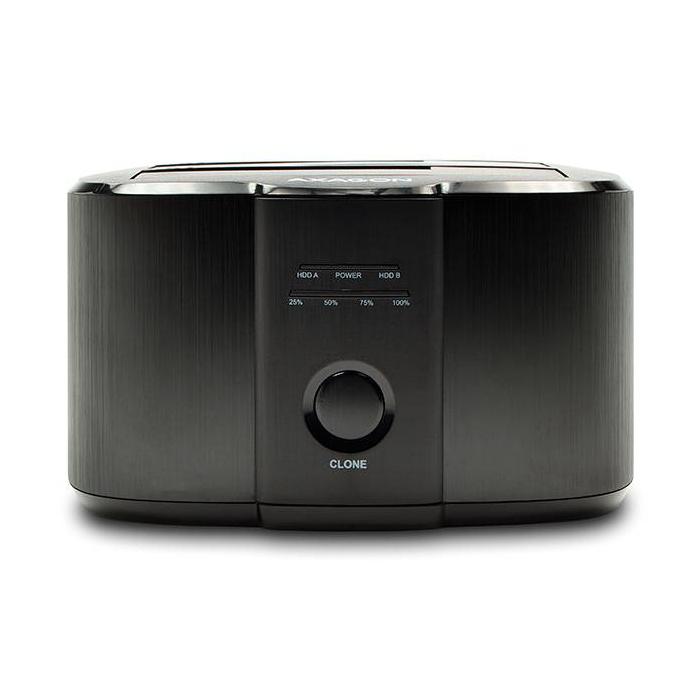

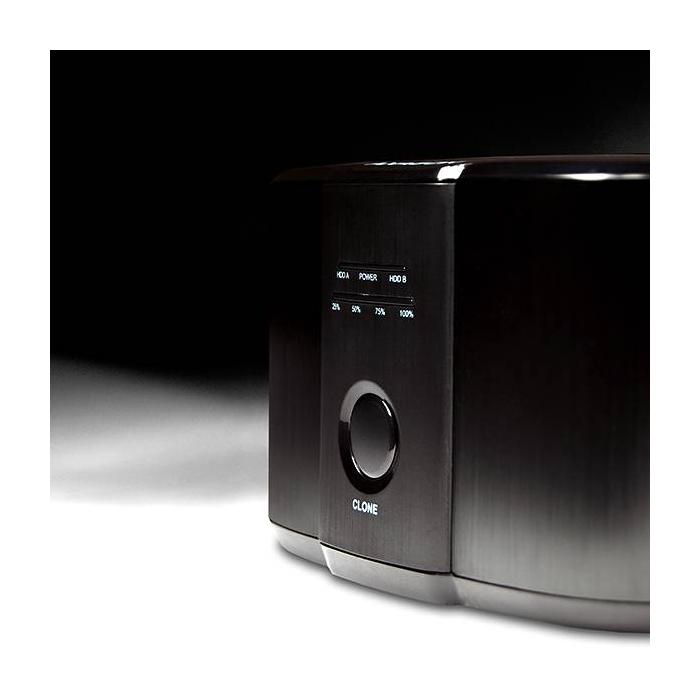

- LED indicators: Yes
- On/off switch: Yes
- UASP support: Yes
- Certification: CE, FCC
- Product colour: Black
- Material: Aluminium
- Maximum data transfer rate: 5 Gbit/s
- Plug and Play: Yes
- Hot-Plug support: Yes
Cooling
- Built-in fan: No
Power
- AC input voltage: 100 - 240 V
- Output voltage: 12 V
- Output current: 2.5 A
Software
- Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
- Linux operating systems supported: Yes
- Mac compatibility: Yes
- Mac operating systems supported: Yes
Weight & dimensions
- Width: 142 mm
- Depth: 102 mm
- Height: 80 mm
- Weight: 330 g
Packaging data
- Package width: 145 mm
- Package depth: 180 mm
- Package height: 140 mm
- Package weight: 679 g
- Package type: Box

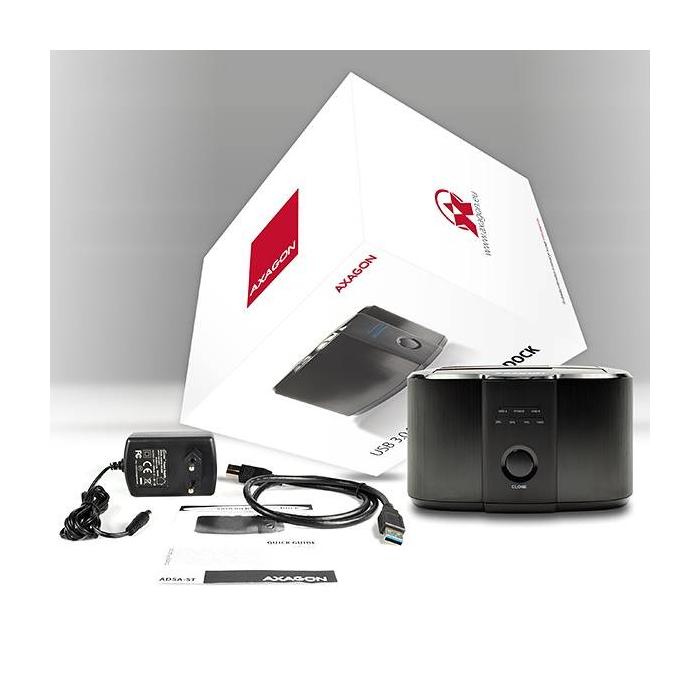

Packaging content
- AC adapter included: Yes
- Cables included: USB Type-A to USB Type-B
- Manual: Yes
- Included power plug types: EU
Other features
- Connection to PC: Yes
- Compliance certificates: RoHS
Logistics data
- Country of origin: China
