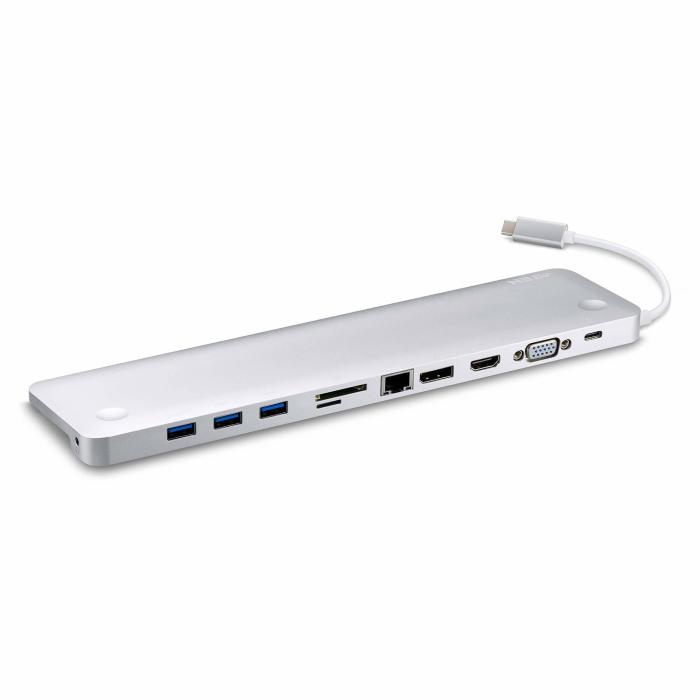

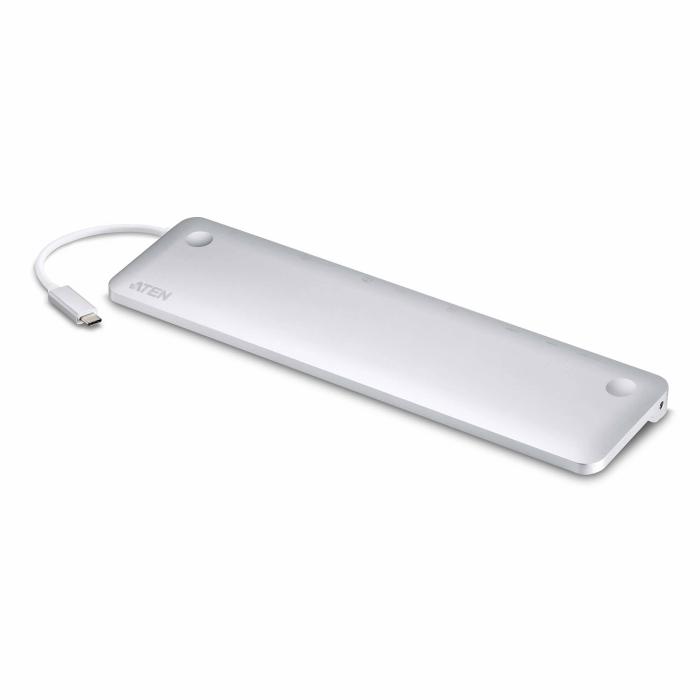

ATEN USB-C Multiport Dock with Power Pass-Thr

Not avaliable

Amount

Brand: ATEN

SKU: 81517 PRC: 240520 EAN: 4719264647352 PN: UH3234

Description

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB Power Delivery (USB PD): Yes
USB Power Delivery revision: 2.0
USB Power Delivery up to: 60 W
HDMI ports quantity: 1
VGA (D-Sub) ports quantity: 1
DisplayPorts quantity: 1
Combo headphone/mic port: Yes
Headphone outputs: 1

Network

Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10, 100, 1000 Mbit/s

Performance

Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
Maximum memory card size: 128 GB
Maximum digital resolution: 3840 x 2160 pixels
Maximum analog resolution: 1920 x 1200 pixels
Number of displays supported: 2
Maximum refresh rate: 60 Hz
Product colour: Silver
Charging function: Yes
Housing material: Aluminium

Power

Power source type: USB
Output voltage: 5 V
Power consumption (typical): 15 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 75 mm
Depth: 280 mm
Height: 14.5 mm
Weight: 321 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 115 mm
Package depth: 340 mm
Package height: 35 mm
Package weight: 460 g

Packaging content

Manual: Yes

Technical details

Compliance certificates: RoHS

Logistics data

Products per master (outer) case: 10 pc(s)
Master (outer) case width: 250 mm
Master (outer) case length: 360 mm
Master (outer) case height: 200 mm
Master (outer) case gross weight: 4.88 kg
Master (outer) case net weight: 3.21 kg
Harmonized System (HS) code: 84733020
