Description

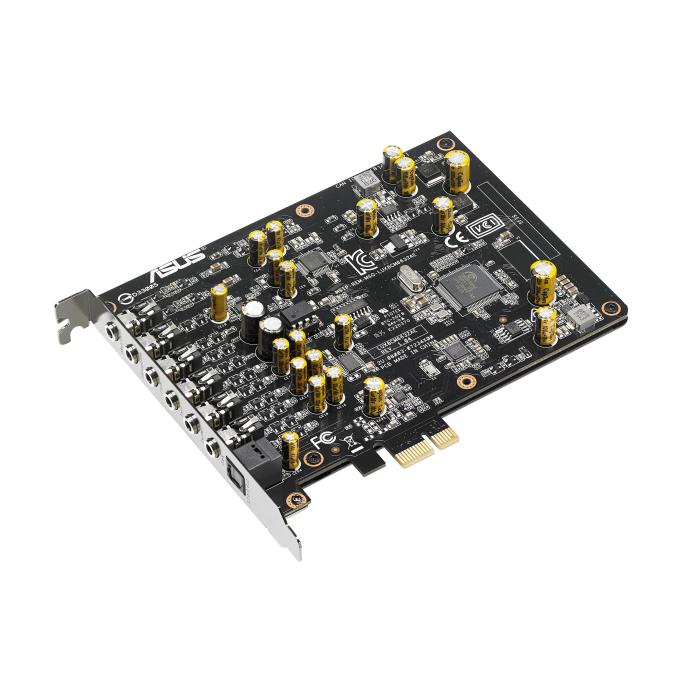

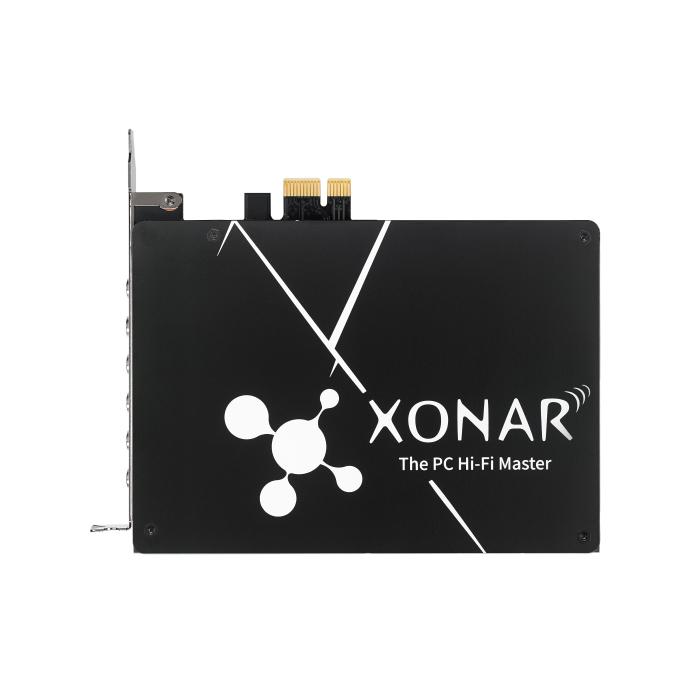

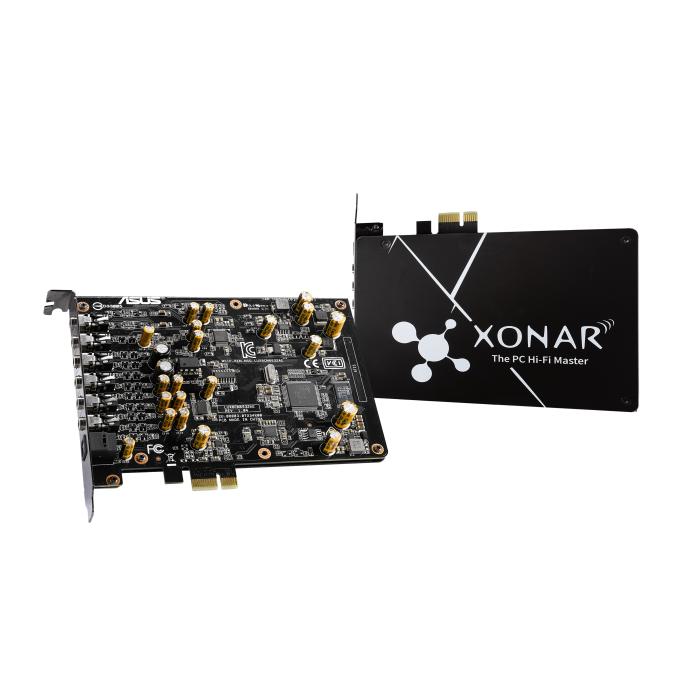

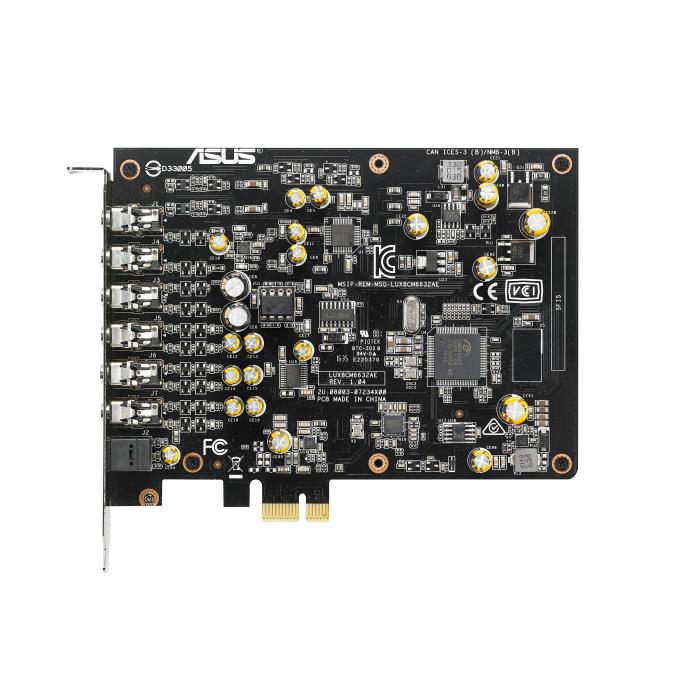

The ASUS Xonar AE is an internal PCI-E sound card with 7.1 channels, designed for desktop computers seeking dedicated audio. It features a 6632AE processor and offers digital-to-analogue and analogue-to-digital conversion at 24-bit/192 kHz, with 32-bit audio quality. On the output line it reaches a signal-to-noise ratio of 110 dB and a total harmonic distortion of 0.00158%, while on the input it registers 103 dB and 0.0022%. It covers a frequency range of 10 to 650000 Hz and has S/PDIF output, subwoofer output and a 3.5 mm headphone output. It is compatible with Windows operating systems and includes a quick start guide.
Specifications
Audio
- Internal: Yes
- Audio quality: 32 bit
- Audio output channels: 7.1 channels
- Line-out Signal-to-Noise Ratio (SNR): 110 dB
- Line-in Signal-to-Noise Ratio (SNR): 103 dB
- Audio A/D Converter (ADC): 24-bit/192kHz
- Digital-to-Analog Conversion (DAC): 24-bit/192kHz
- Line-in Total Harmonic Distortion (THD): 0.0022%
- Line-out Total Harmonic Distortion (THD): 0.00158%
- Frequency range: 10 - 650000 Hz
Ports & interfaces
- Host interface: PCI-E

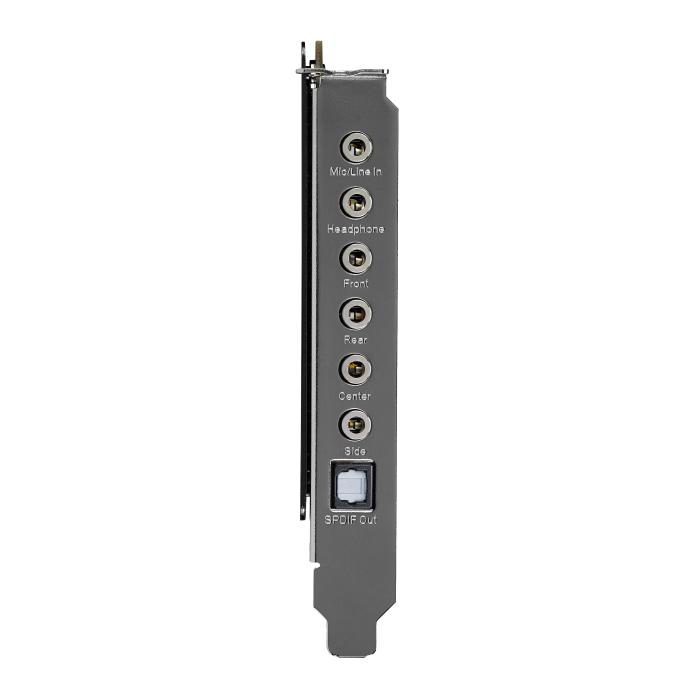

- Headphone outputs: 1
- Headphone connectivity: 3.5 mm
- S/PDIF out port: Yes
- Subwoofer out: Yes
Software
- Windows operating systems supported: Yes
Other features
- Processor model: 6632AE
- Quick start guide: Yes
- Mic/line-in combo port: Yes
Logistics data
- Harmonized System (HS) code: 84733020
