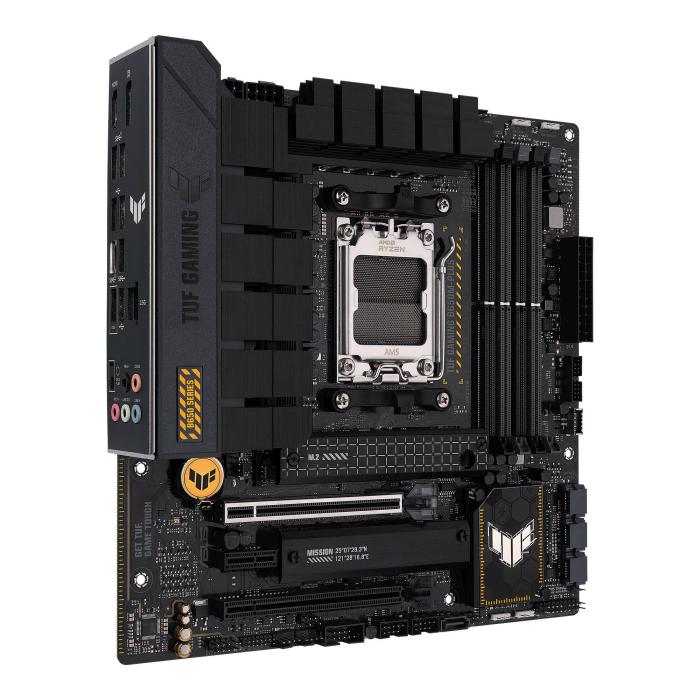

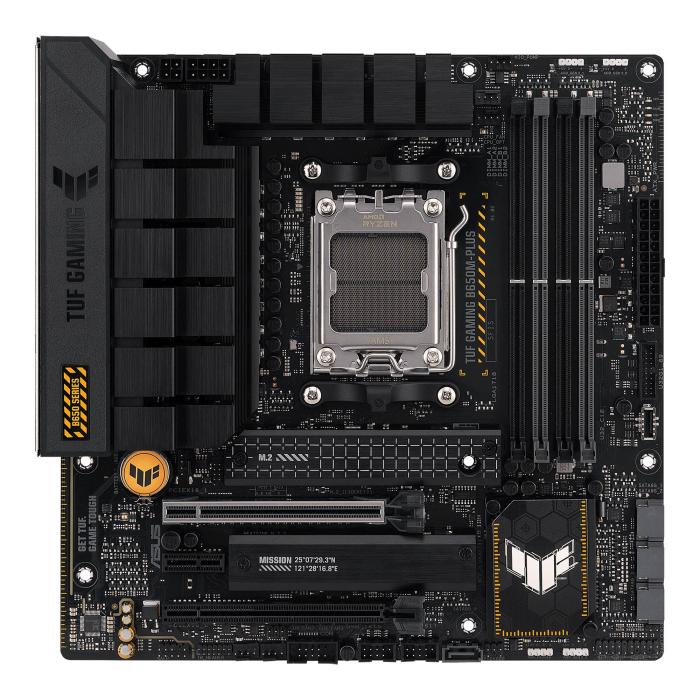

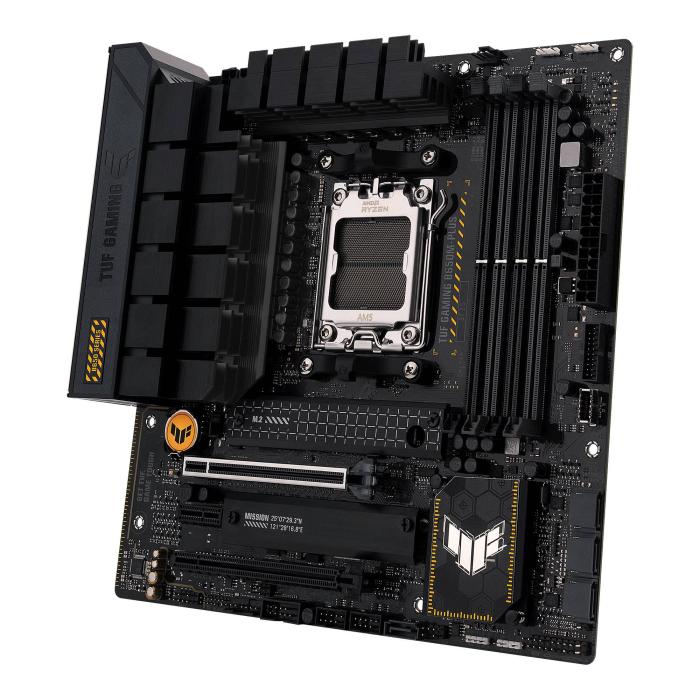

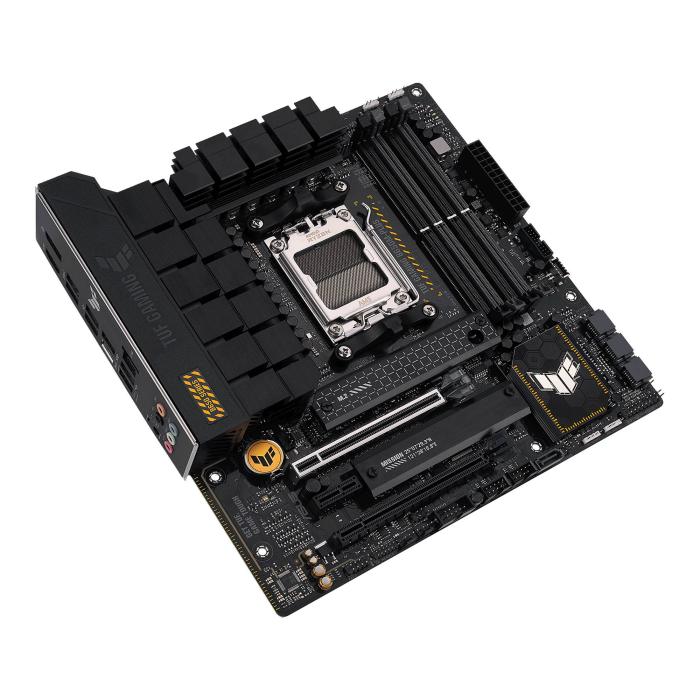

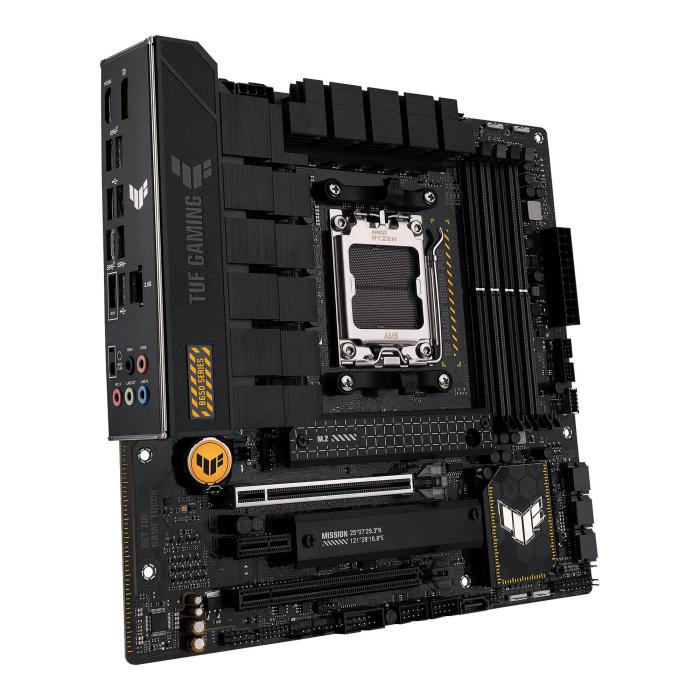

Name: ASUS TUF GAMING B650M-PLUS AMD B650 Socket AM5 micro ATX
Brand: ASUS
Price: 179.96 USD
Availability: InStock

ASUS TUF GAMING B650M-PLUS AMD B650 Socket AM5 micro ATX

$179.96

$179.96 without VAT

ASUS TUF GAMING B650M-PLUS AMD B650 Socket AM5 micro ATX. More info

Amount

Brand: ASUS

SKU: 96544 PRC: 396716 EAN: 4711081912392 PN: 90MB1BG0-M0EAY0

Description

Specifications

Processor

Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series
Supported processor sockets: Socket AM5

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Supported memory clock speeds: 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400 MHz
Supported memory clock speed (max): 6400 MHz
Maximum internal memory: 128 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
RAID levels: 0, 1, 10

Graphics

Parallel processing technology support: Not supported

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 3
EPS power connector (8-pin): Yes
Number of COM connectors: 1
Thunderbolt headers: 1
12V power connector: Yes
RGB LED pin header: Yes

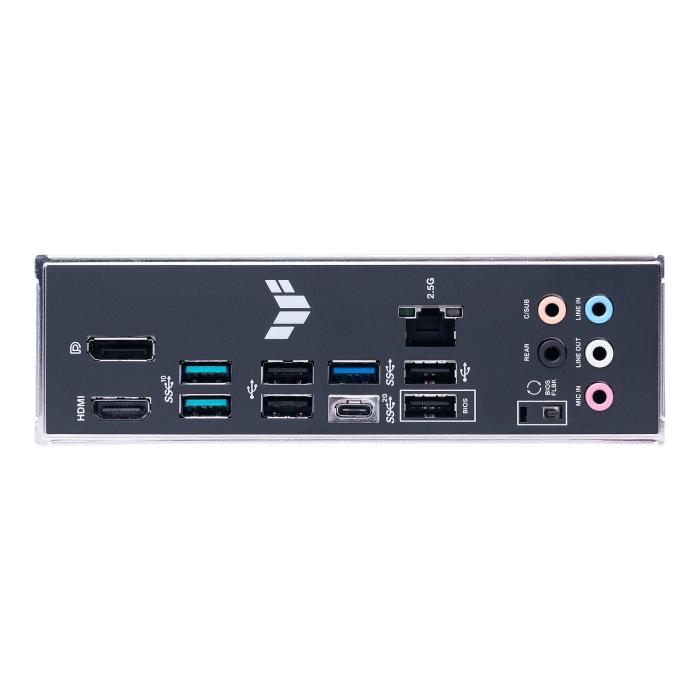

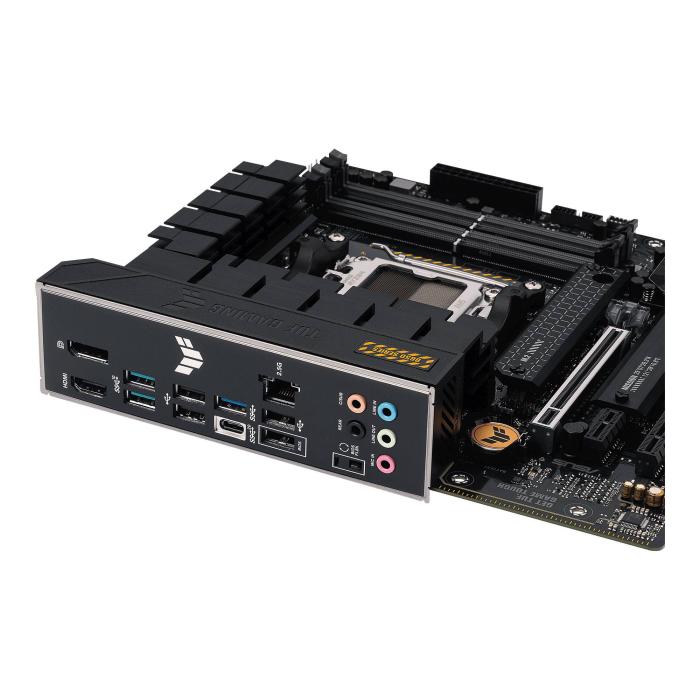

Rear panel I/O ports

USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: No

Features

Motherboard chipset: AMD B650
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Power source type: ATX
Windows operating systems supported: Windows 10, Windows 11 x64

Expansion slots

PCI Express x4 (Gen 1.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 2
Number of M.2 (M) slots: 2

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit

Weight & dimensions

Width: 244 mm
Depth: 244 mm

Other features

Back-to-BIOS button: Yes
