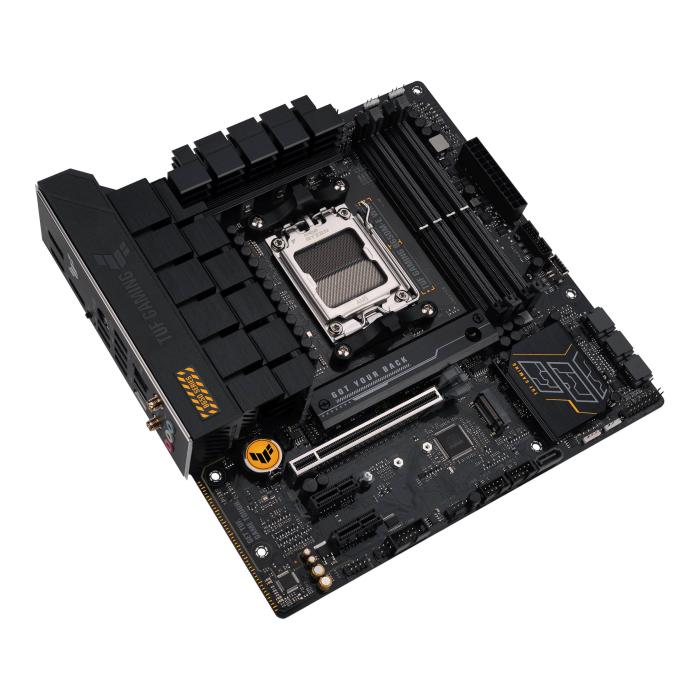

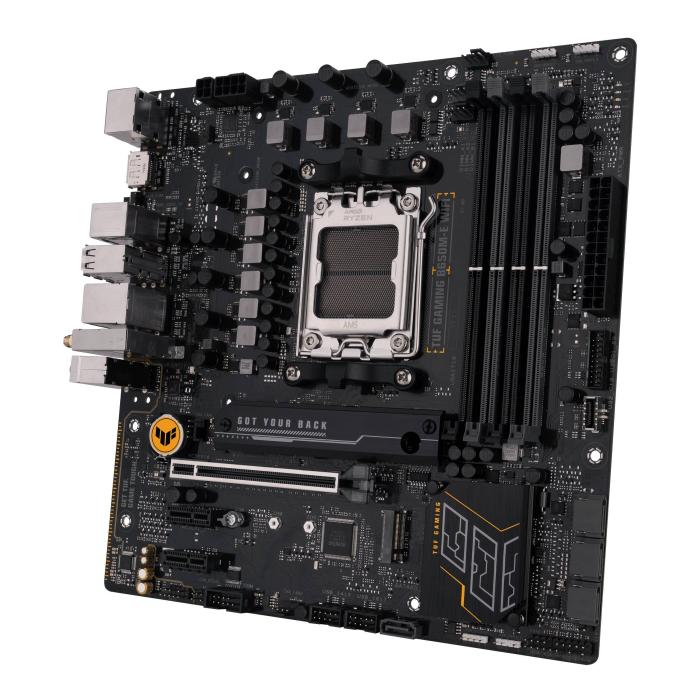

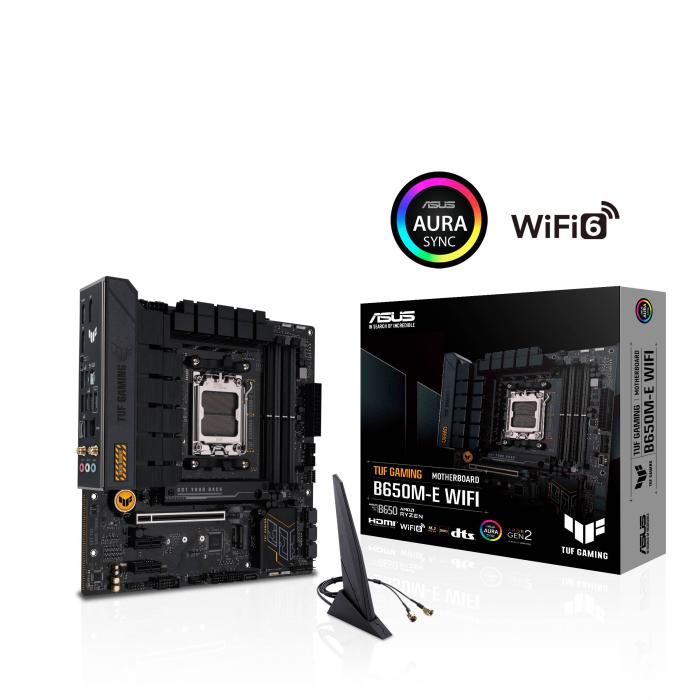

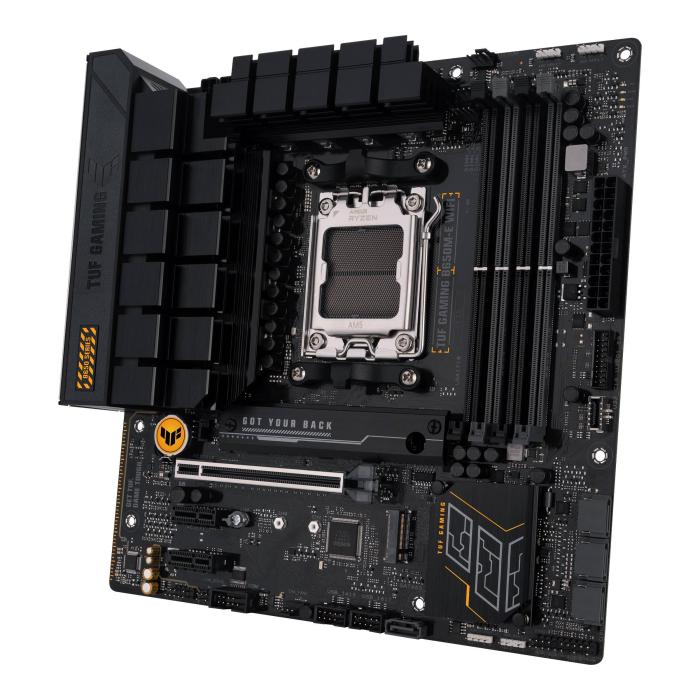

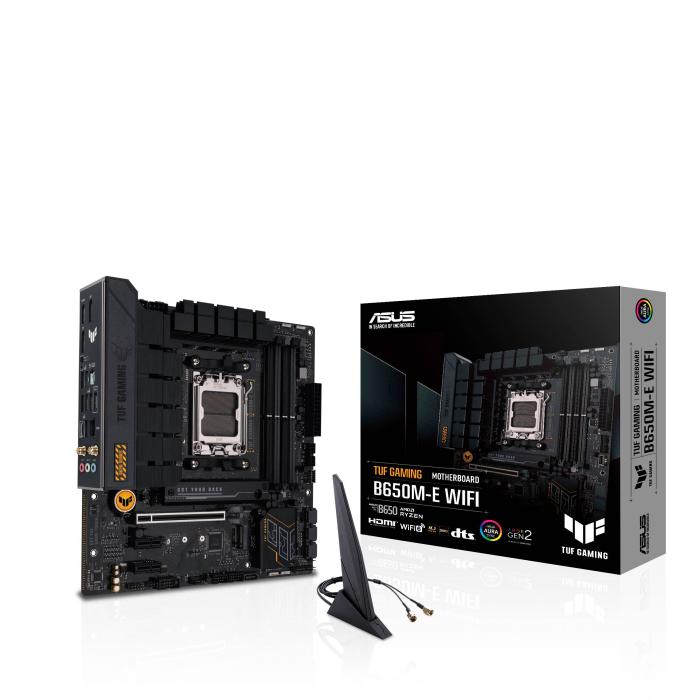

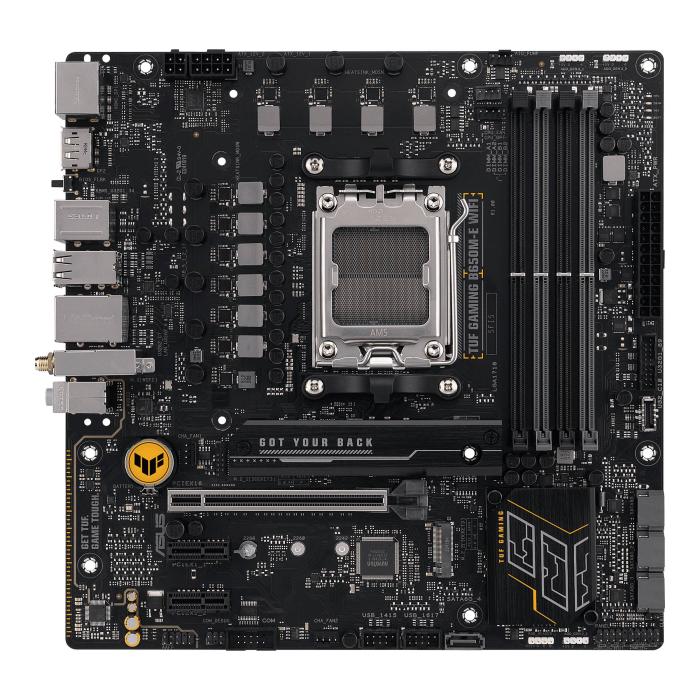

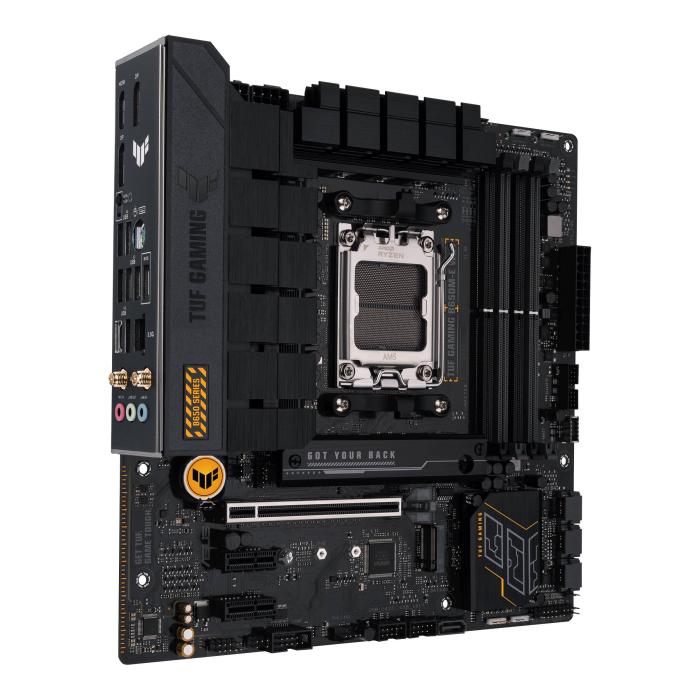

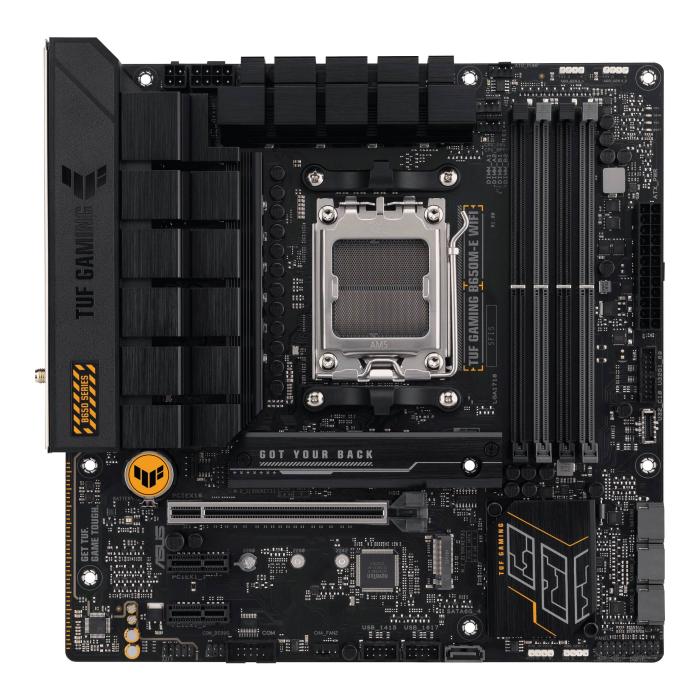

ASUS TUF GAMING B650M-E WIFI AMD B650 Socket AM5 micro ATX

$186.63
$186.63 without VAT

More info

Brand: ASUS
SKU: 101700 PRC: 452086 EAN: 4711387222041 PN: 90MB1FV0-M0EAY0

Description

ASUS TUF GAMING B650M-E WIFI, AMD, Socket AM5, AMD Ryzen 7000 Series, DDR5-SDRAM, 128 GB, DIMM

Specifications

Processor

  • Processor manufacturer: AMD
  • Processor socket: Socket AM5
  • Compatible processor series: AMD Ryzen 7000 Series

Memory

  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 4
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: ECC & Non-ECC
  • Supported memory clock speeds: 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400 MHz
  • Maximum internal memory: 128 GB
  • Unbuffered memory: Yes

Storage controllers

  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, SATA III
  • Number of HDDs supported: 4
  • Number of storage drives supported: 6
  • RAID support: Yes
  • RAID levels: 0, 1, 10

Internal I/O

  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
  • Number of SATA III connectors: 4
  • Front panel audio connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • Number of chassis fan connectors: 2
  • EPS power connector (8-pin): Yes
  • 12V power connector: Yes
  • RGB LED pin header: Yes
  • USB 2.0 connectors: 2

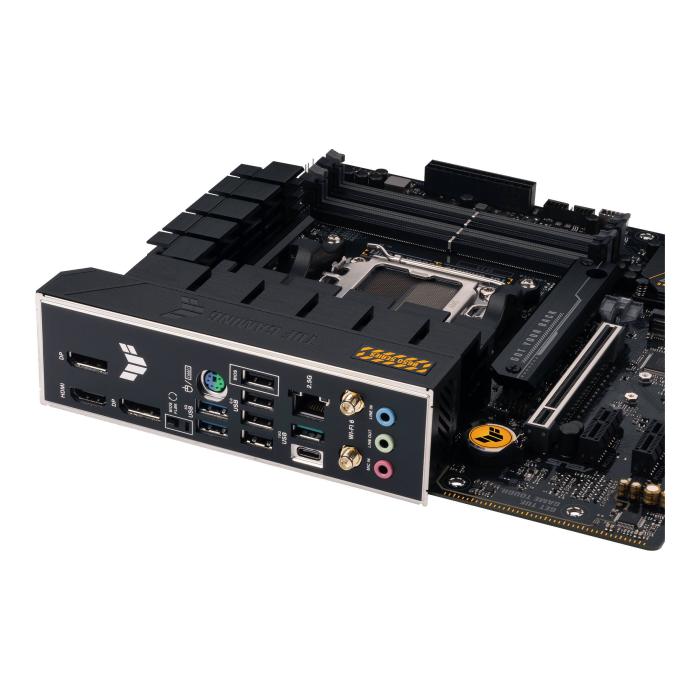

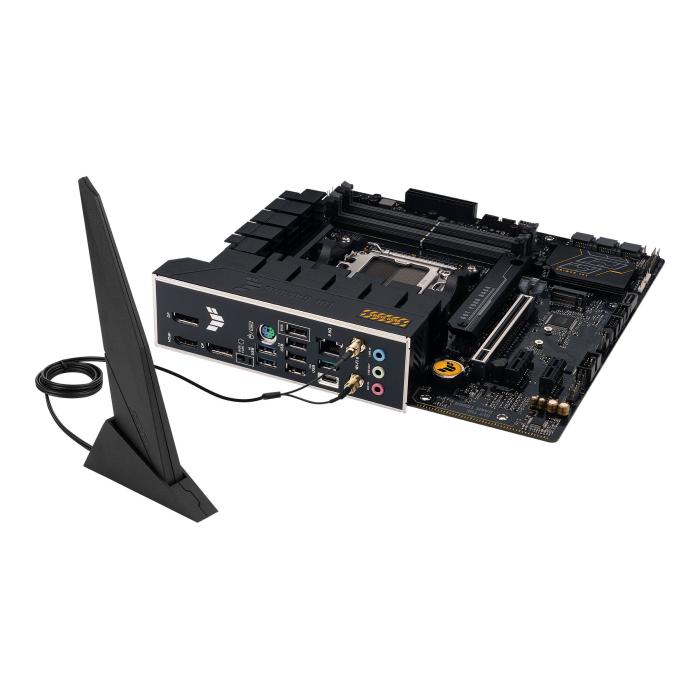

Rear panel I/O ports

  • USB 2.0 ports quantity: 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 1
  • PS/2 ports quantity: 1
  • HDMI ports quantity: 1
  • DisplayPorts quantity: 2
  • Microphone in: Yes

Network

  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet
  • Wi-Fi: Yes
  • Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
  • Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
  • Bluetooth: Yes
  • Bluetooth version: 5.2

Features

  • Motherboard chipset: AMD B650
  • Audio output channels: 7.1 channels
  • Component for: PC
  • Motherboard form factor: micro ATX
  • Motherboard chipset family: AMD
  • Windows operating systems supported: Windows 10 x64, Windows 11

Expansion slots

  • PCI Express x1 (Gen 4.x) slots: 2
  • Number of M.2 (M) slots: 2

BIOS

  • BIOS type: UEFI AMI
  • BIOS memory size: 256 Mbit

Packaging data

  • Package width: 275 mm
  • Package depth: 275 mm
  • Package height: 67.4 mm
  • Package weight: 1.7 kg

Weight & dimensions

  • Width: 244 mm
  • Depth: 244 mm
  • Height: 50 mm

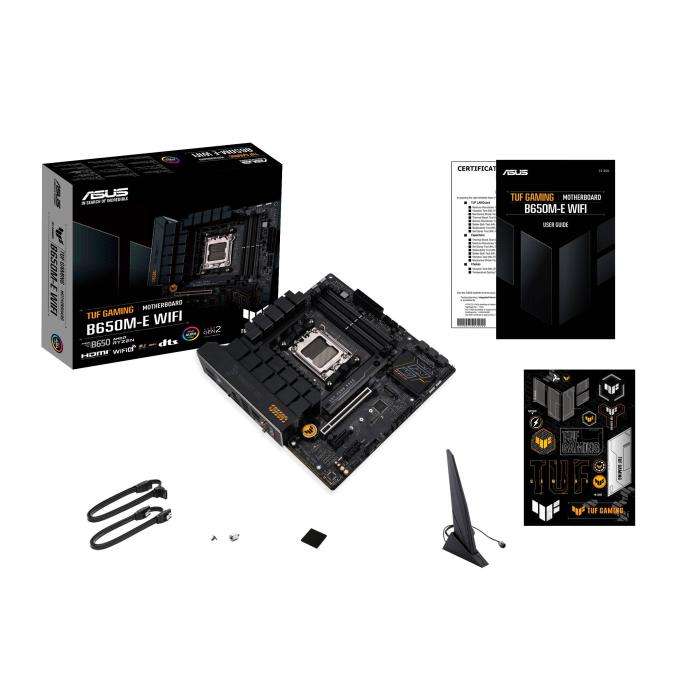

Packaging content

  • Cables included: SATA

Other features

  • Weight: 1.01 kg
