Description

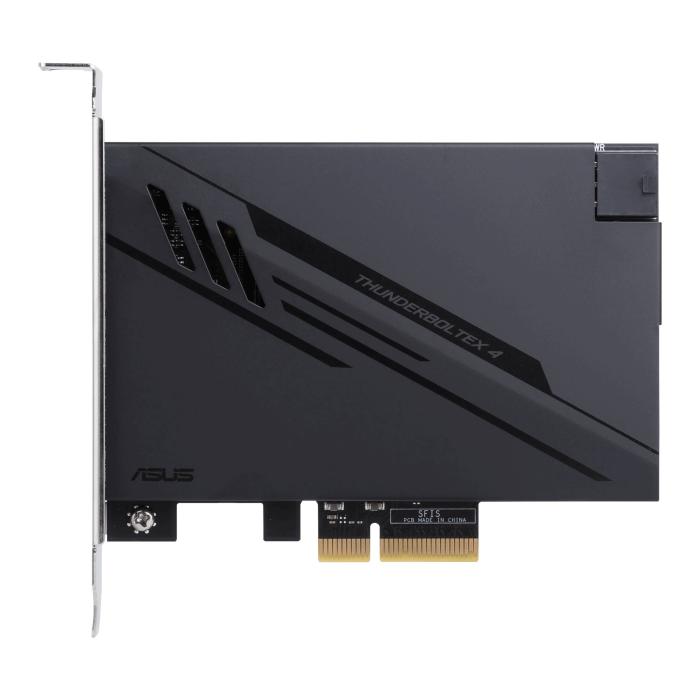

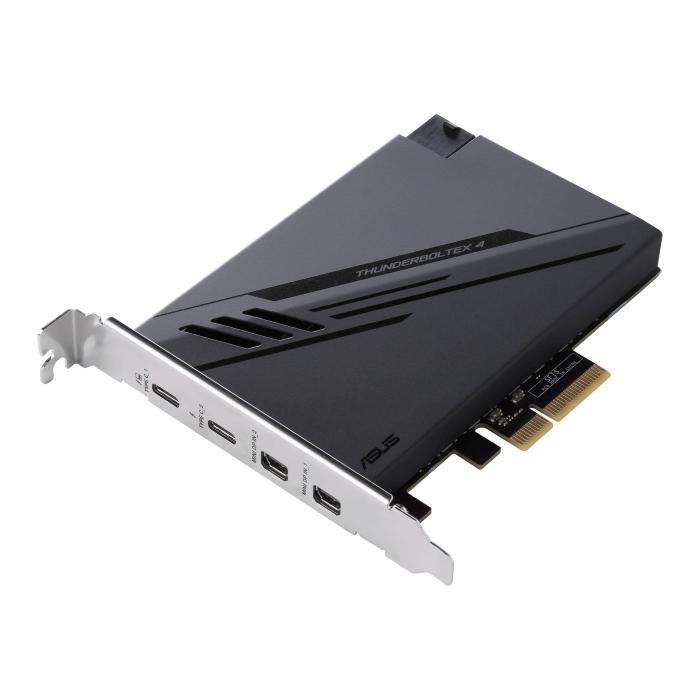

The ASUS ThunderboltEX 4 card expands your PC with Thunderbolt connectivity via a PCIe host interface and a PCIe 3.0 expansion standard. Its Intel Thunderbolt 4 JHL8540 chipset enables a maximum data transfer rate of 40 Gbit/s. It offers Mini DisplayPort, PCIe, Thunderbolt, USB 2.0 and USB 3.2 Gen 2 (3.1 Gen 2) as output interface, and integrates two USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports and one USB 2.0 port. It is an internal component for use with PC, in black, and supports Plug and Play connection. It works with the Windows 10 x64 operating system. Its dimensions are 117.7 mm wide and 180.5 mm deep. The package includes drivers, user manual and Mini DisplayPort, Thunderbolt and USB cables.
Specifications
Ports & interfaces
- Host interface: PCIe
- Output interface: Mini DisplayPort, PCIe, Thunderbolt, USB 2.0, USB 3.2 Gen 2 (3.1 Gen 2)
- Expansion card standard: PCIe 3.0
- USB 2.0 ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Design
- Internal: Yes
- Product colour: Black
- Purpose: PC
Features
- Chipset: Intel Thunderbolt 4 JHL8540
- Data transfer rate (max): 40 Gbit/s
- Plug and Play: Yes
System requirements
- Windows operating systems supported: Windows 10 x64
Weight & dimensions
- Width: 117.7 mm
- Depth: 180.5 mm
Packaging data
- Quantity: 1

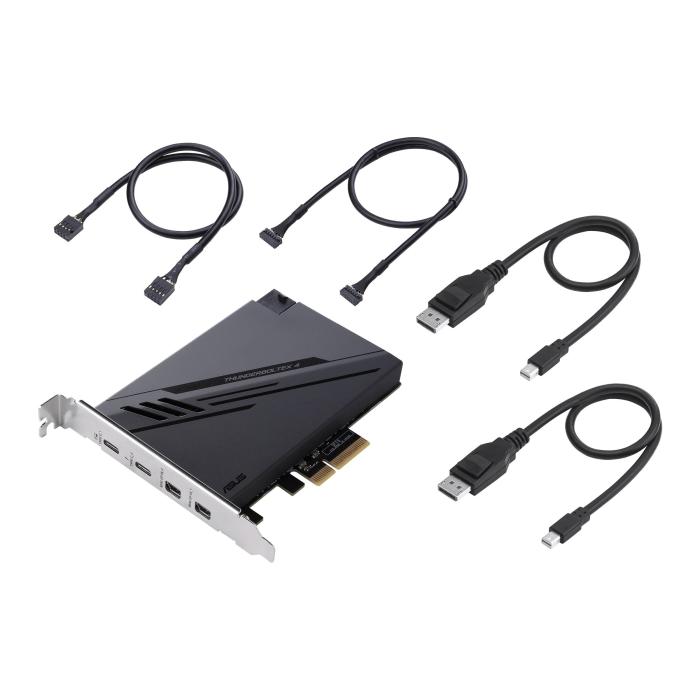

- Cables included: Mini DisplayPort, Thunderbolt, USB
- Drivers included: Yes
- Manual: Yes
- Package type: Box
Logistics data
- Harmonized System (HS) code: 84733020
Other features
- Maximum resolution: 7680 x 4320 pixels
- Compatibility: ASUS Intel 500
