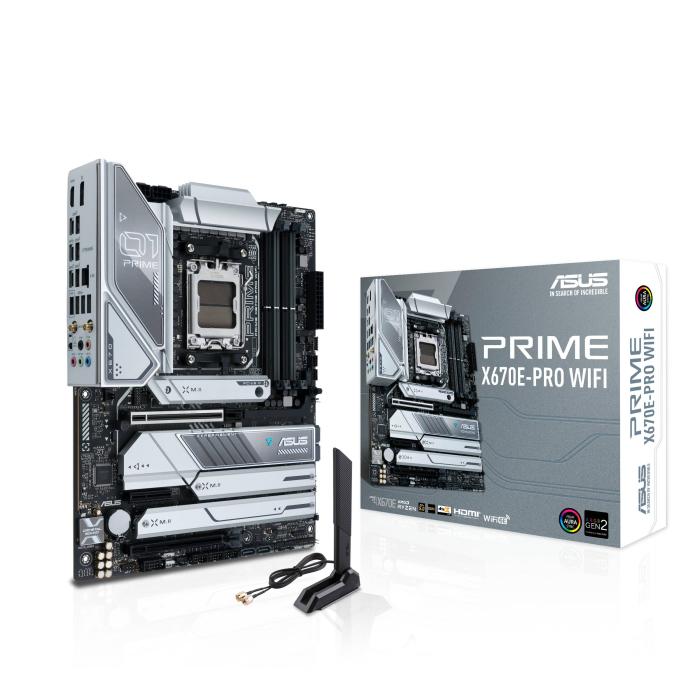

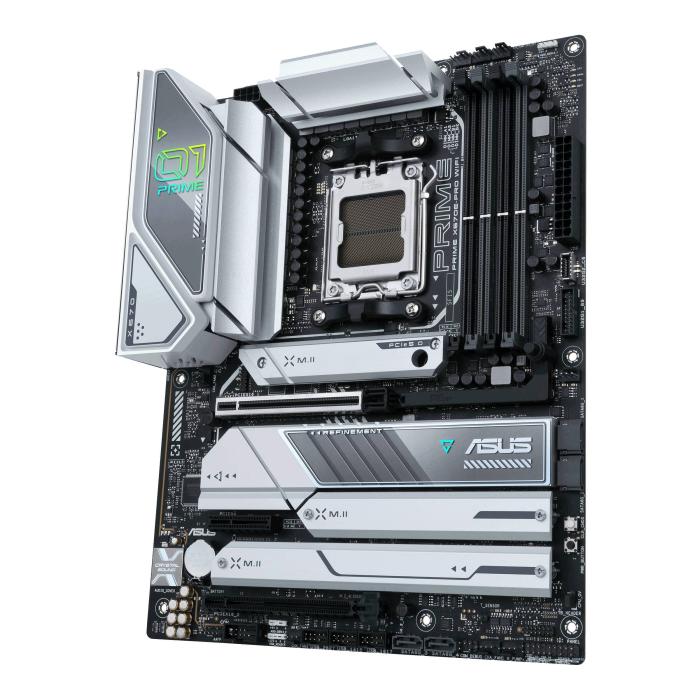

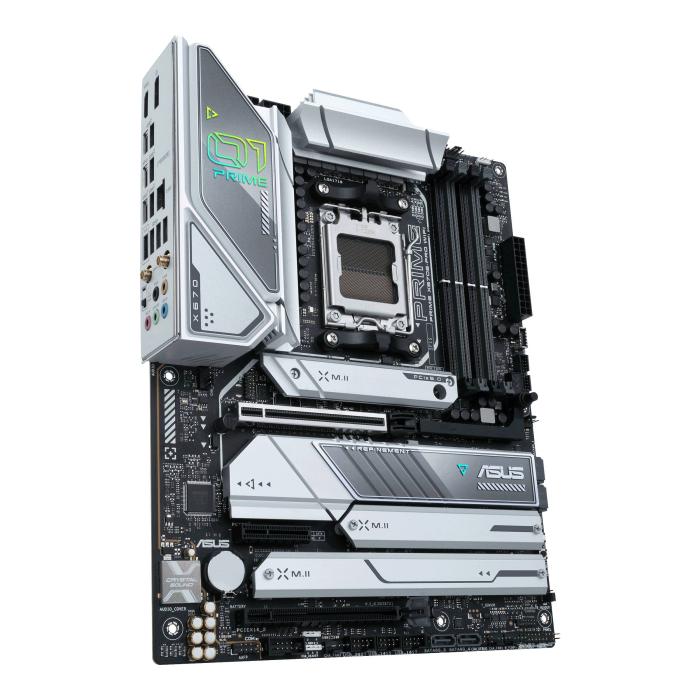

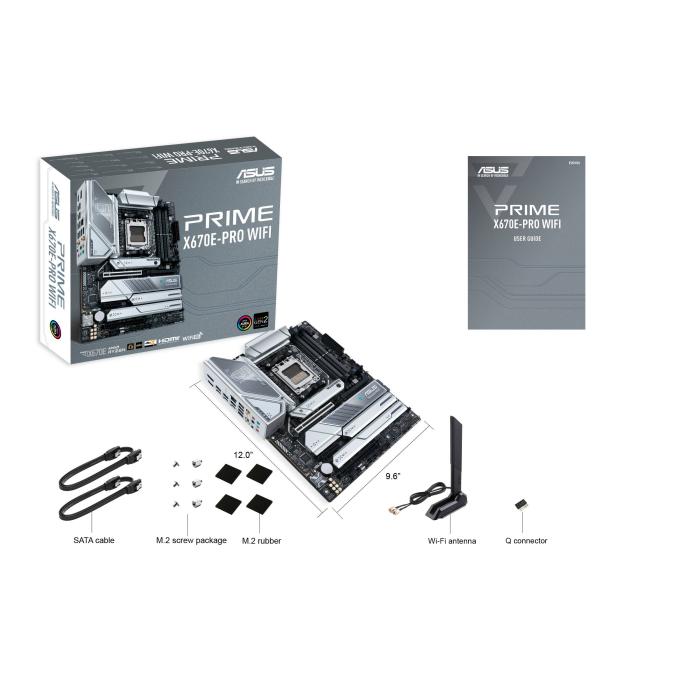

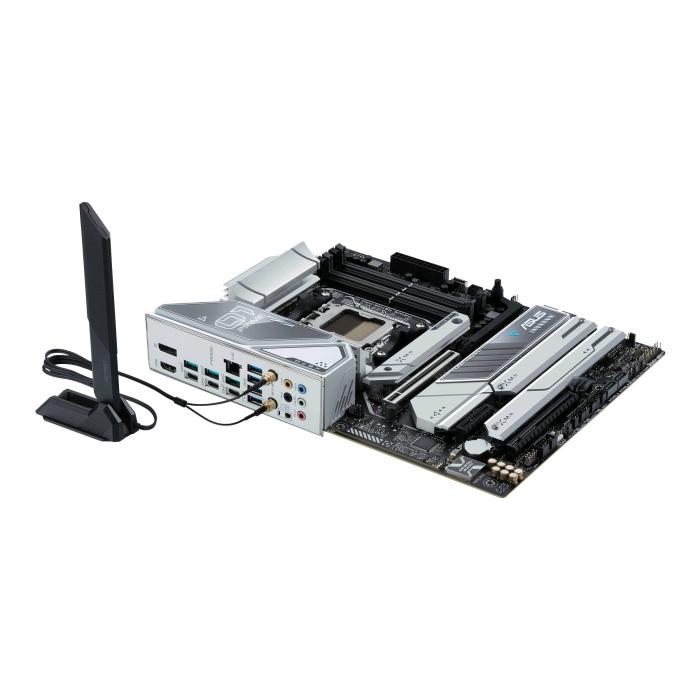

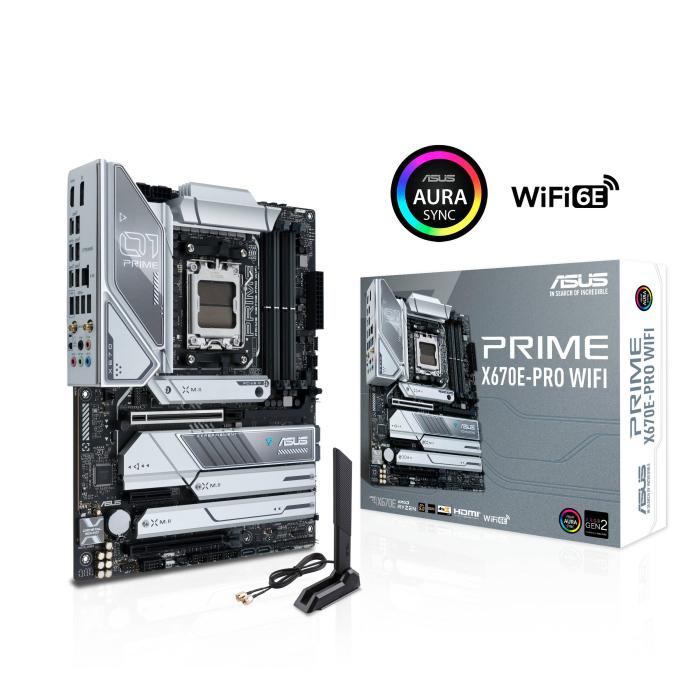

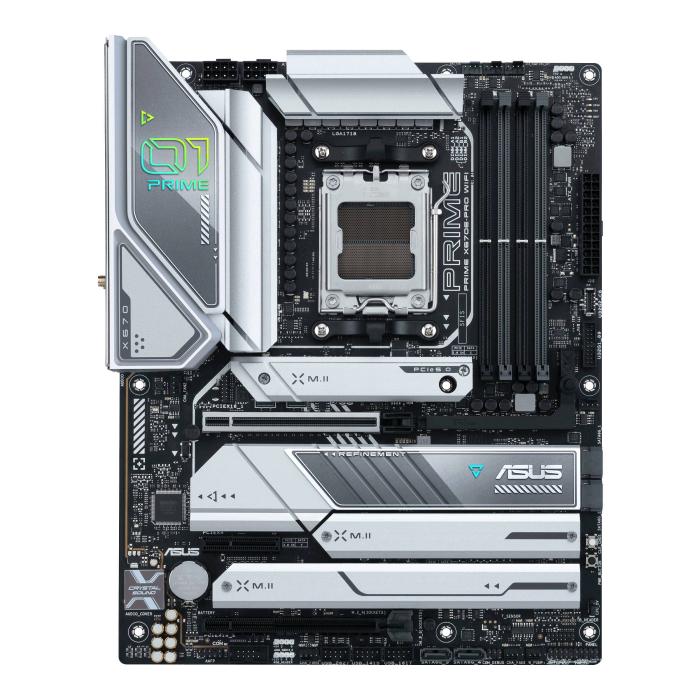

ASUS PRIME X670E-PRO WIFI AMD X670 Socket AM5 ATX

Not avaliable

ASUS PRIME X670E-PRO WIFI AMD X670 Socket AM5 ATX.   More info

Brand: ASUS
SKU: 96298 PRC: 395004 EAN: 4711081905660 PN: 90MB1BL0-M0EAY0

Description

Specifications

Processor

  • Processor manufacturer: AMD
  • Processor socket: Socket AM5

Memory

  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 4
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: ECC & Non-ECC
  • Supported memory clock speeds: 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400 MHz
  • Maximum internal memory: 128 GB
  • Unbuffered memory: Yes

Storage controllers

  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, SATA III
  • Number of storage drives supported: 8
  • RAID support: Yes

Graphics

  • On-board graphics card: No

Internal I/O

  • USB 2.0 connectors: 3
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
  • Number of SATA III connectors: 4
  • Front panel audio connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • Number of chassis fan connectors: 4
  • EPS power connector (8-pin): Yes
  • Number of COM connectors: 1
  • TPM connector: Yes
  • Thunderbolt headers: 1

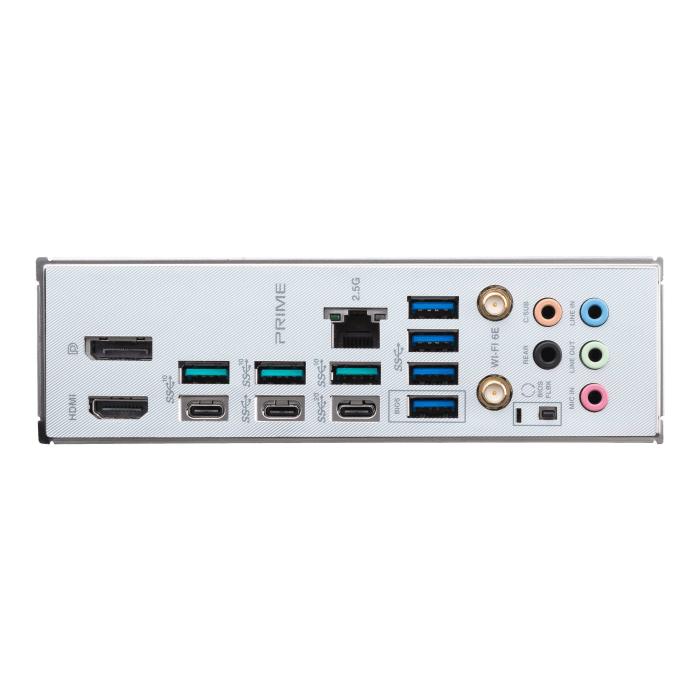

Rear panel I/O ports

  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
  • USB 3.2 Gen 2x2 Type-C ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 1
  • HDMI ports quantity: 1
  • DisplayPorts quantity: 1
  • Line-in: Yes
  • Microphone in: Yes

Network

  • Ethernet LAN: Yes
  • Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
  • Wi-Fi: Yes
  • Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
  • Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
  • Bluetooth: Yes
  • Bluetooth version: 5.2

Features

  • Motherboard chipset: AMD X670
  • Audio chip: Realtek S1220A
  • Audio output channels: 7.1 channels
  • Product colour: Aluminium, Black
  • Component for: PC
  • Motherboard form factor: ATX
  • Motherboard chipset family: AMD
  • Windows operating systems supported: Windows 10 x64, Windows 11 x64

Expansion slots

  • PCI Express x4 (Gen 4.x) slots: 1
  • PCI Express x16 (Gen 4.x) slots: 1
  • PCI Express x16 (Gen 5.x) slots: 1
  • Number of M.2 (M) slots: 4

BIOS

  • BIOS type: UEFI AMI
  • BIOS memory size: 256 Mbit
  • Clear CMOS button: Yes

Packaging data

  • Package width: 338 mm
  • Package depth: 68 mm
  • Package height: 273 mm
  • Package weight: 2.55 kg

Weight & dimensions

  • Width: 305 mm
  • Depth: 244 mm

Other features

  • Weight: 1.7 kg
