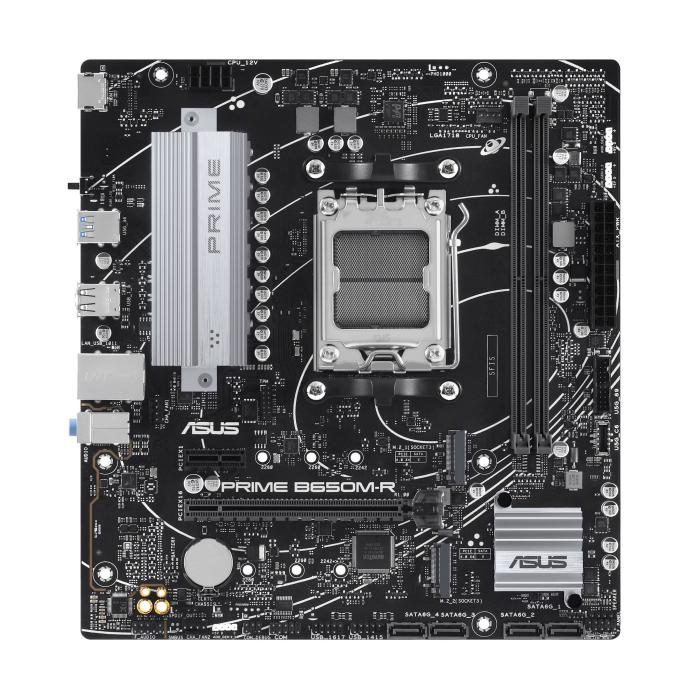

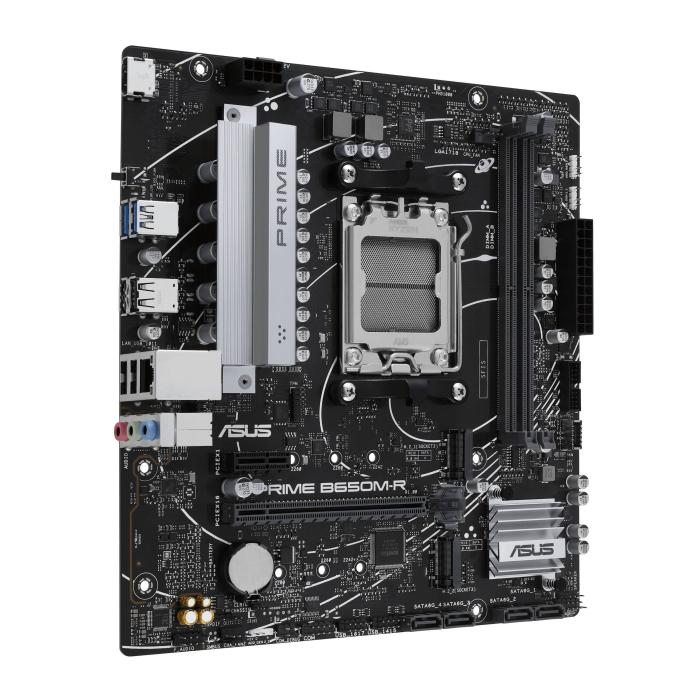

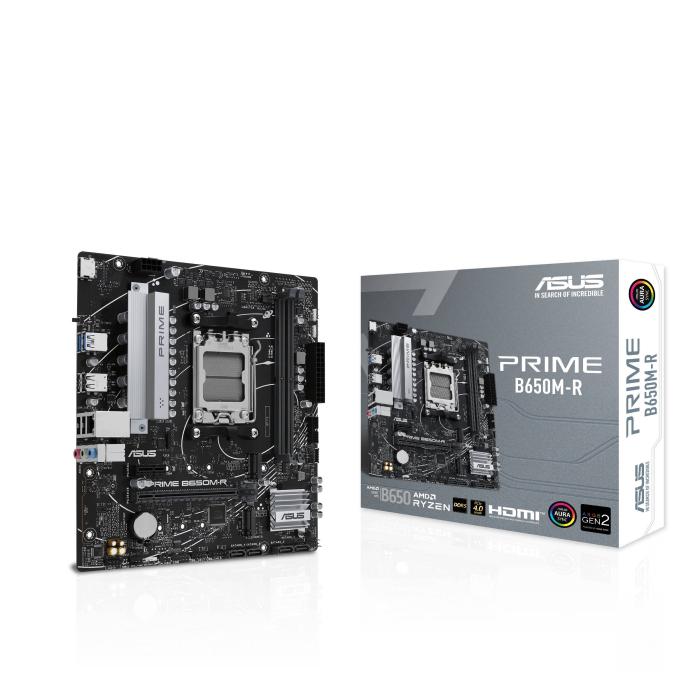

Name: ASUS PRIME B650M-R AMD B650 Socket AM5 micro ATX
Brand: ASUS
Availability: OutOfStock

ASUS PRIME B650M-R AMD B650 Socket AM5 micro ATX

Not avaliable

ASUS PRIME B650M-R AMD B650 Socket AM5 micro ATX. More info

Amount

Brand: ASUS

SKU: 116302 PRC: 509134 EAN: 4711387429761 PN: 90MB1H30-M0EAY0

Description

PRIME B650M-R Gaming Mainboard Sockel AMD AM5 (microATX, DDR5, PCIe 4.0, Realtek 2.5Gb Ethernet, HDMI, SATA 6 Gbit/s, BIOS Flashback, Aura Sync)

Specifications

Processor

Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
Supported processor sockets: Socket AM5

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MHz
Supported memory clock speed (max): 7200 MHz
Maximum internal memory: 96 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 6
RAID support: Yes
RAID levels: 0, 1, 10

Graphics

Parallel processing technology support: Not supported

Internal I/O

CPU fan connector: Yes
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
Number of COM connectors: 1
TPM connector: Yes
12V power connector: Yes
RGB LED pin header: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
S/PDIF out connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes

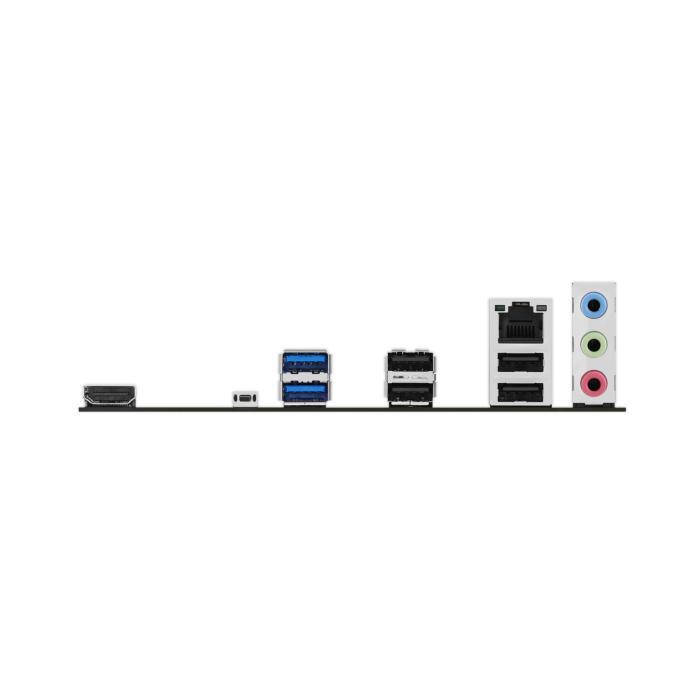

Rear panel I/O ports

USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
Headphone outputs: 1
Line-in: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: No

Features

Motherboard chipset: AMD B650
Audio output channels: 7.1 channels
Product colour: Black
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Cooling type: Passive
Power source type: ATX
Windows operating systems supported: Windows 10, Windows 11

Expansion slots

PCI Express x1 (Gen 4.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit

Packaging data

Package width: 260 mm
Package depth: 270 mm
Package height: 51.5 mm
Package weight: 855 g

Weight & dimensions

Width: 236 mm
Depth: 221 mm

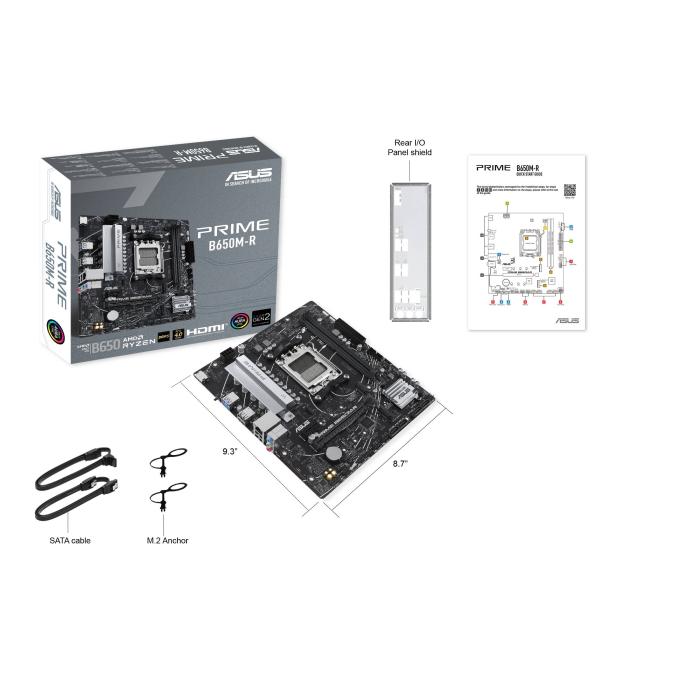

Packaging content

Cables included: SATA
User guide: Yes

Other features

Back-to-BIOS button: Yes
