Description

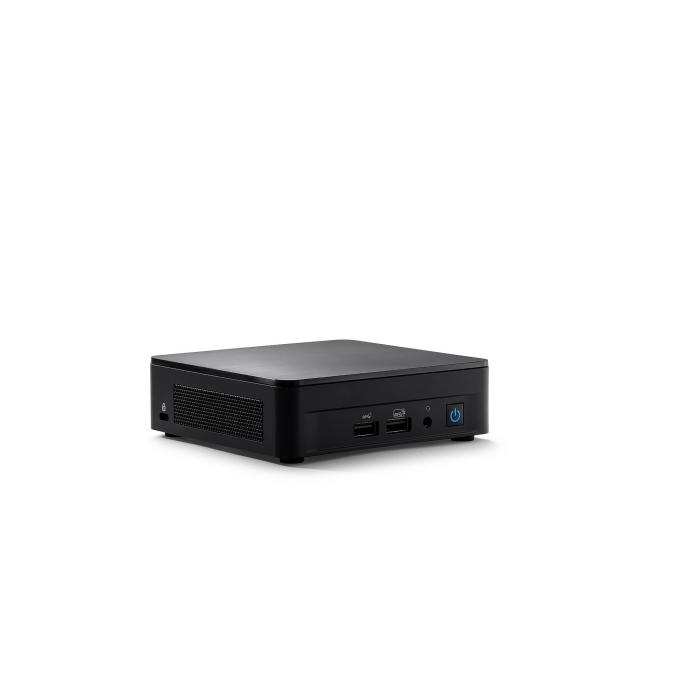

NUC 12 Pro Kit, Intel Core i7-1260P Processor (18M Cache | up to 4.70 GHz), Up to 64 GB dual-channel DDR4-3200 SODIMMs
Specifications
Processor
- Processor manufacturer: Intel
- Processor family: Intel® Core™ i7
- Processor generation: 12th gen Intel® Core™ i7
- Processor model: i7-1260P
- Processor cores: 12
- Processor threads: 16
- Processor boost frequency: 4.7 GHz
- Performance cores: 4
- Efficient cores: 8
- Performance-core Max Turbo Frequency: 4.7 GHz
- Efficient-core Max Turbo Frequency: 3.4 GHz
- Built-in processor: Yes
- Processor cache: 18 MB
Memory
- Memory slots type: SO-DIMM
- Number of memory slots: 2
- Maximum internal memory: 64 GB
- Supported memory clock speeds: 3200 MHz
- Supported memory types: DDR4-SDRAM
- Memory voltage: 1.2 V
- ECC: No
Storage
- Supported storage drive types: SSD
- Storage drive sizes supported: M.2
- SSD form factor: M.2
- NVMe: Yes
- Number of storage drives supported: 2
Graphics
- On-board graphics card: No
- Graphics card family: Intel
- On-board graphics card model: Intel Iris Xe Graphics
- Number of displays supported: 4
Audio
- Built-in speaker(s): No
Network
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: Wi-Fi 6E (802.11ax)
- WLAN controller model: Intel Wi-Fi 6E AX211
- Ethernet LAN: Yes
- Wi-Fi: Yes
- LAN controller: Intel I225-V
- Bluetooth: Yes
- Bluetooth version: 5.2
Ports & interfaces
- USB 2.0 ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
- HDMI ports quantity: 2
- HDMI version: 2.1
- Combo headphone/mic port: Yes
- Ethernet LAN (RJ-45) ports: 1
- Serial port via internal header: No
- Thunderbolt 4 ports quantity: 2
- DC-in jack: Yes
Expansion slots
- PCI Express slots version: 4.0
Design
- Chassis type: UCFF
- Product colour: Black
- Cooling type: Active
- On/off switch: Yes
- LED indicators: Yes
- VESA mounting: Yes
- Product type: Mini PC barebone
Performance
- Motherboard form factor: UCFF
- Number of processors supported: 1
Software
- Windows operating systems supported: Windows 11 Home, Windows 11 Pro, Windows 10 Home, Windows 10 IoT Enterprise, Windows 10 Pro
- Linux operating systems supported: Yes
Power
- Power supply type: External AC adapter
Weight & dimensions
- Width: 117 mm
- Depth: 112 mm
- Height: 37 mm
