Description

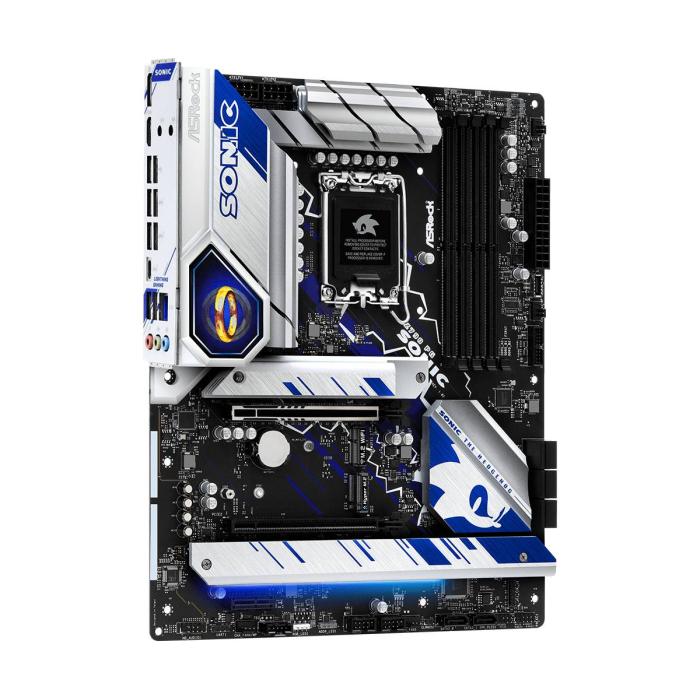

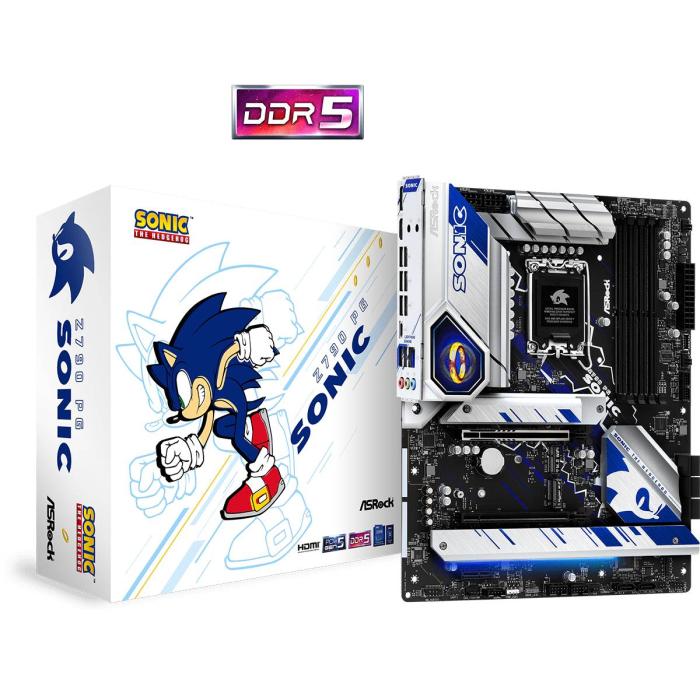

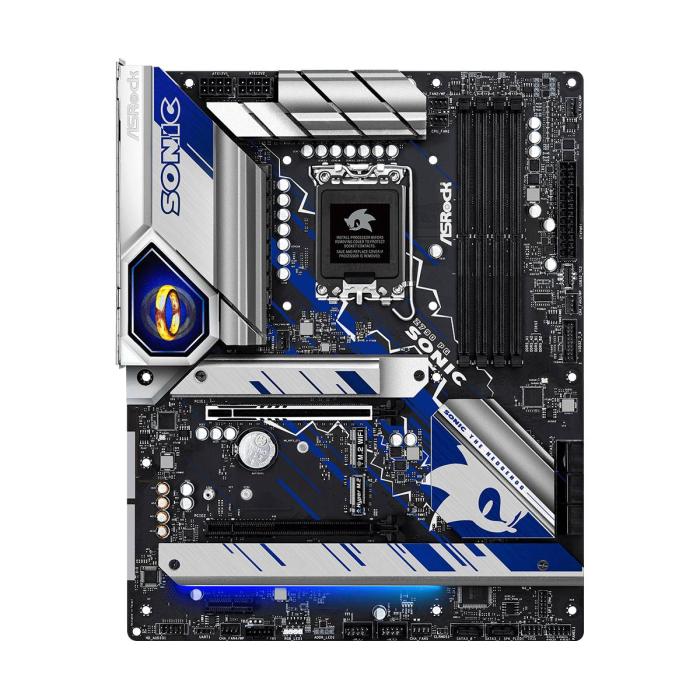

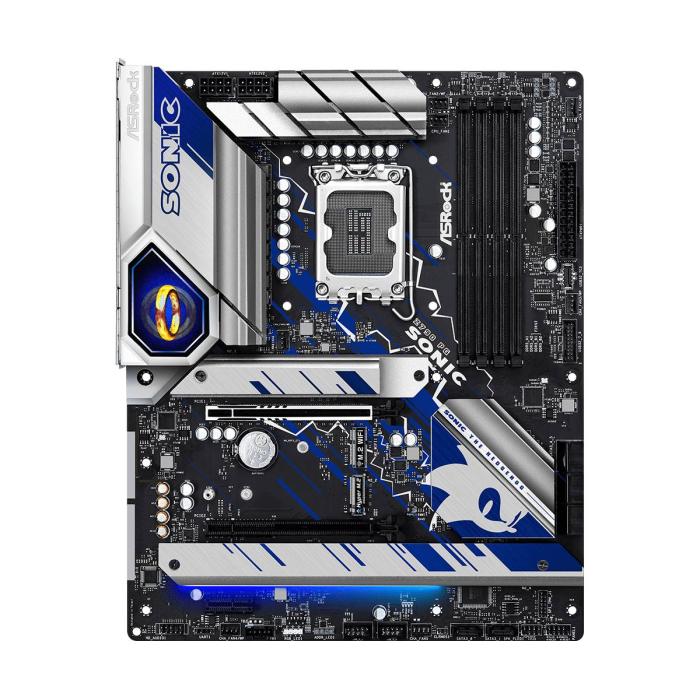

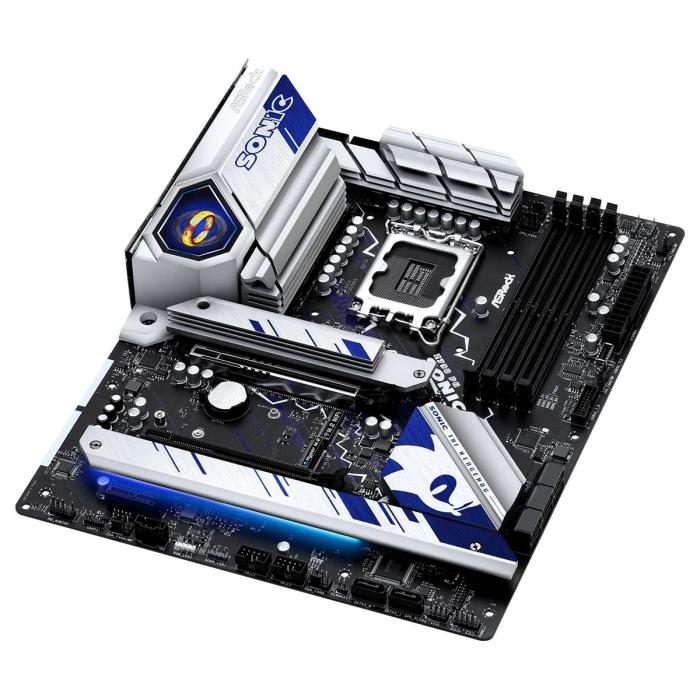

ASRock Z790 PG Sonic motherboard with LGA 1700 socket for Intel Core i5, i7 and i9 processors, presented in ATX form factor. Supports up to 128 GB of DDR5 memory in four dual-channel DIMM slots, non-ECC and unbuffered. Includes eight SATA III connectors and M.2 storage compatibility, along with RAID levels 0, 1, 5 and 10. Features two internal USB 2.0 headers, one CPU fan header and one TPM header.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Compatible processor series: Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
- Maximum number of SMP processors: 1
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Maximum internal memory: 128 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive interfaces: M.2, SATA III
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 8
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- TPM connector: Yes
- Thunderbolt headers: 1
Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
- Headphone outputs: 1
- Microphone in: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Killer E3100G
- Wi-Fi: No
Features
- Motherboard chipset: Intel Z790
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: Intel
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
Expansion slots
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 1
BIOS
- BIOS type: UEFI AMI
Weight & dimensions
- Width: 305 mm
- Depth: 244 mm
