Description

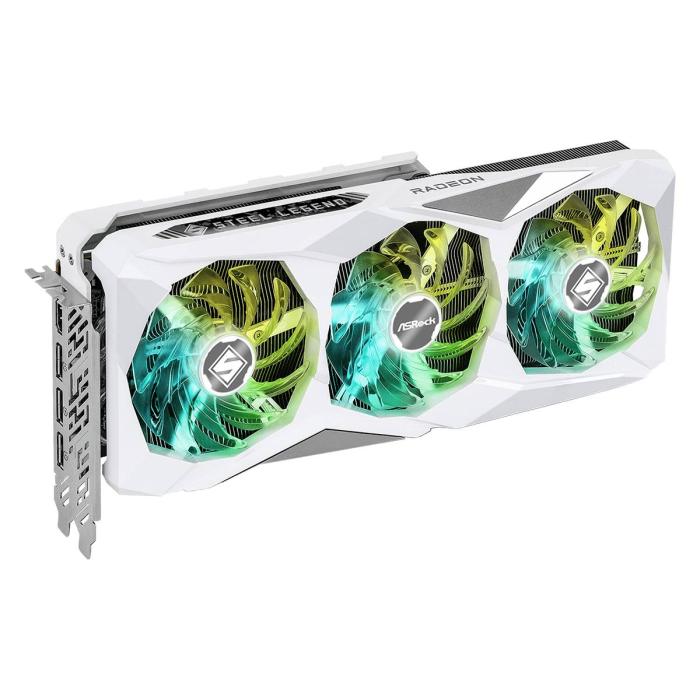

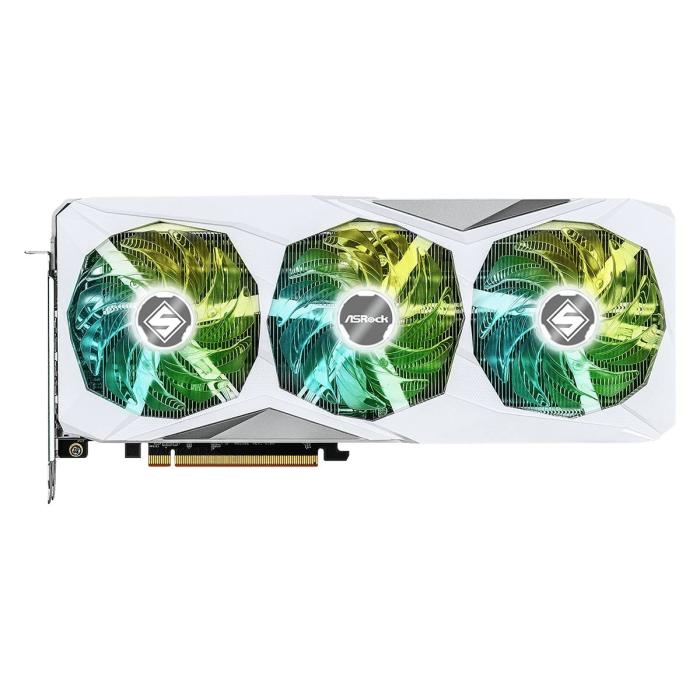

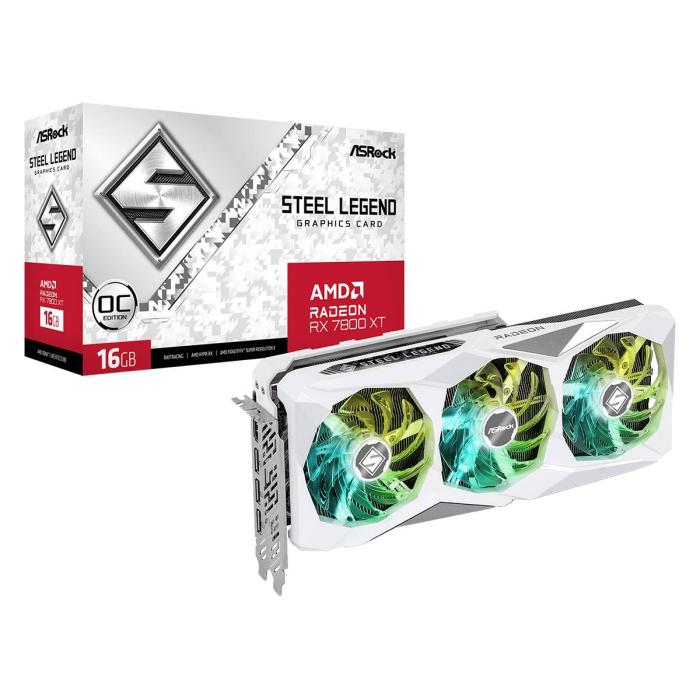

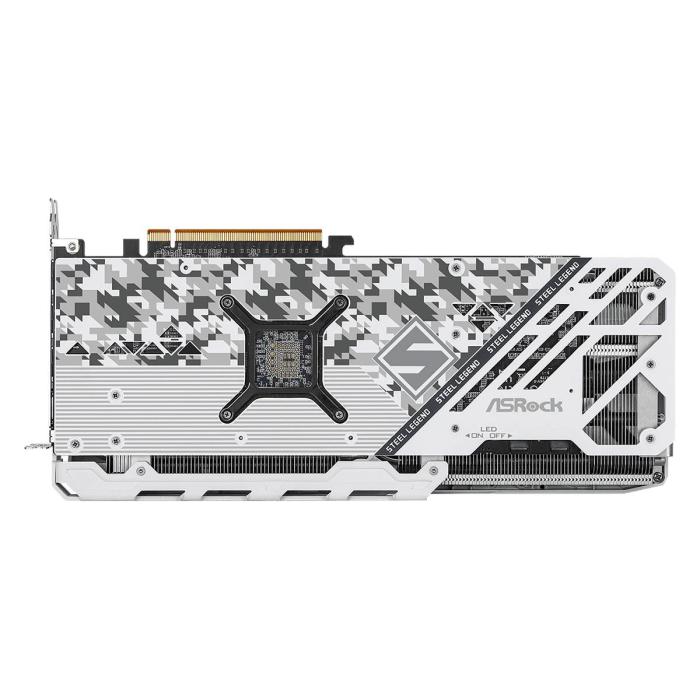

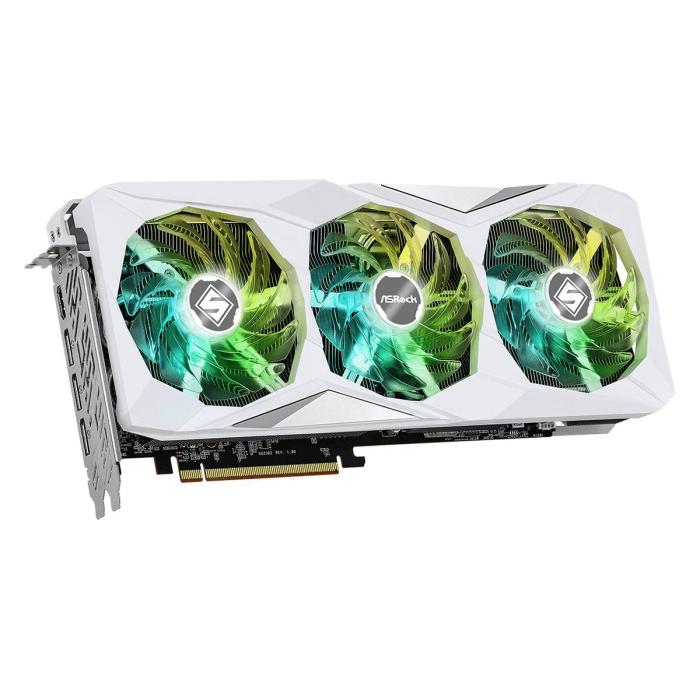

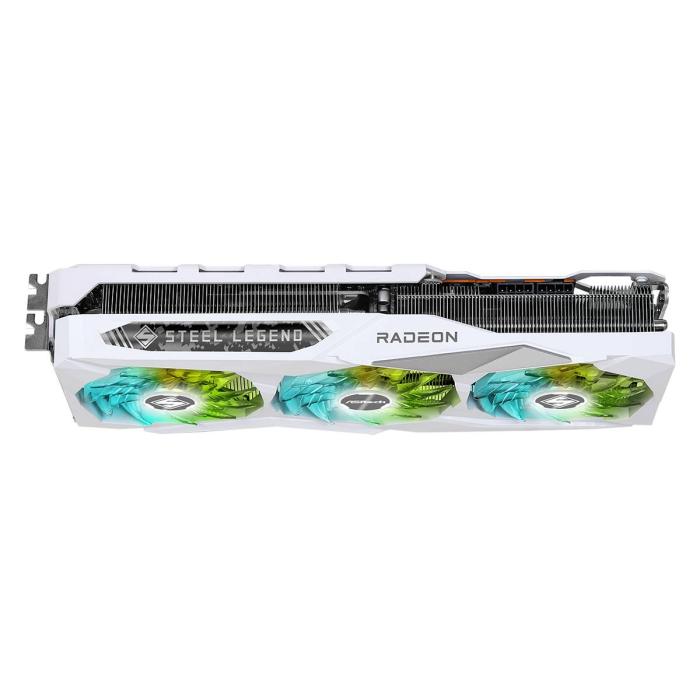

The Asrock Radeon RX 7800 XT Steel Legend OC graphics card includes 16 GB of GDDR6 memory with a 256-bit data bus and a transfer rate of 19.5 Gbit/s. Its AMD Radeon RX 7800 XT graphics processor reaches an enhanced clock speed of 2520 MHz and features 3840 stream processors, 60 ray accelerators, and 64 MB of Infinity Cache. This graphics card supports a maximum resolution of 7680 x 4320 pixels and can connect up to four displays via one HDMI 2.1 port and three DisplayPorts. It connects through a PCI Express x16 4.0 interface and is not compatible with parallel processing.
Specifications
Processor
- CUDA: No
- Graphics processor family: AMD
- Graphics processor: Radeon RX 7800 XT
- Processor boost clock speed: 2520 MHz
- Maximum resolution: 7680 x 4320 pixels
- Parallel processing technology support: Not supported
- Stream processors: 3840
- Maximum displays per videocard: 4
- Infinity cache: 64 MB
- Ray accelerators: 60
Memory
- Discrete graphics card memory: 16 GB
- Graphics card memory type: GDDR6
- Memory bus: 256 bit
- Data transfer rate: 19.5 Gbit/s
Ports & interfaces
- Interface type: PCI Express x16 4.0
- HDMI ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 3
- DisplayPort version: 2.1
Performance
- TV tuner integrated: No
- DirectX version: 12 Ultimate
- OpenGL version: 4.6
- HDCP: Yes
- Dual Link DVI: No
Design
- Cooling type: Active
- Number of fans: 3 fan(s)
- Form factor: Full-Height/Full-Length (FH/FL)
- Bracket height: Full-Height (FH)
- Number of slots: 2.8
- Illumination: Yes
- Illumination colour: Multi
- Product colour: White
Power
- Minimum system power supply: 800 W
- Supplementary power connectors: 2x 8-pin
System requirements
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
Weight & dimensions
- Weight: 1.24 kg
- Length: 304 mm
- Depth: 56 mm
- Height: 131 mm
Packaging data
- Package type: Box
Packaging content
- Quick installation guide: Yes
