Description

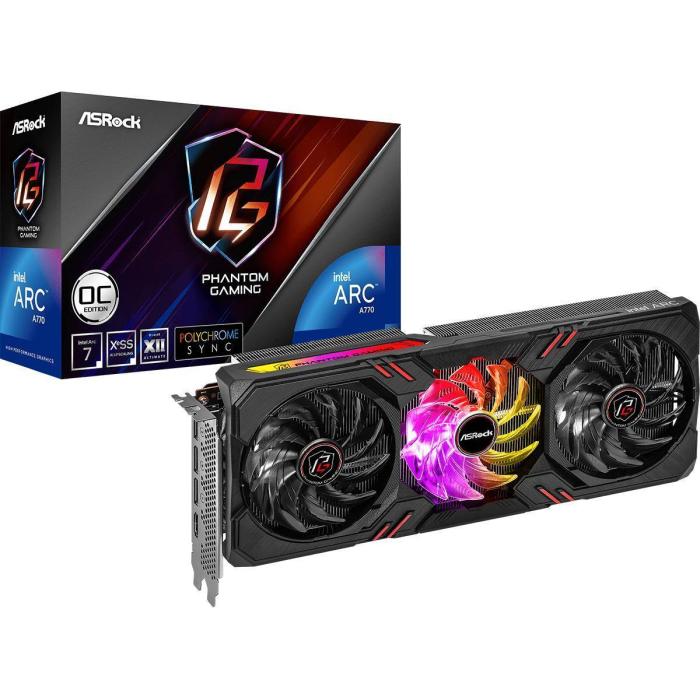

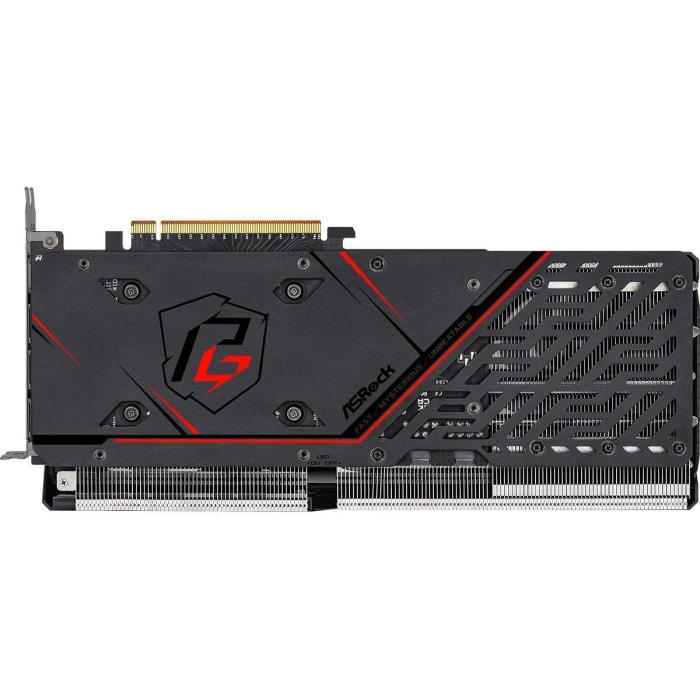

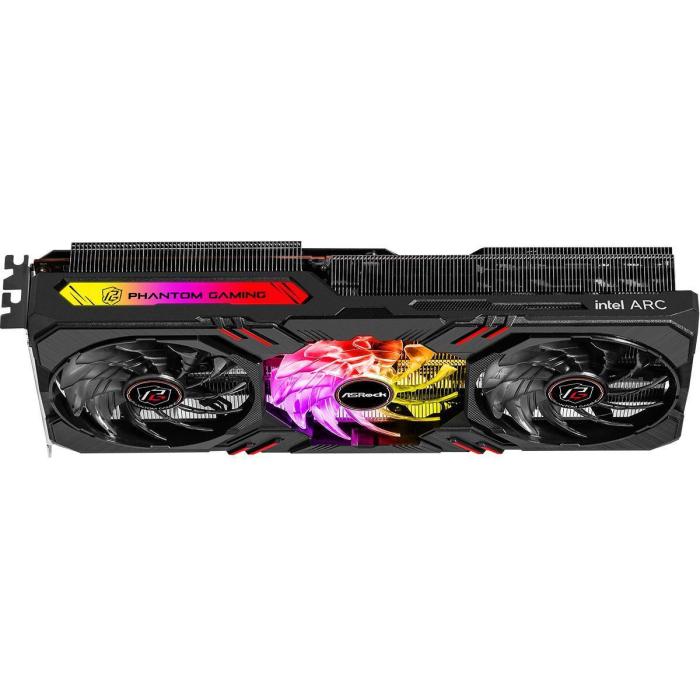

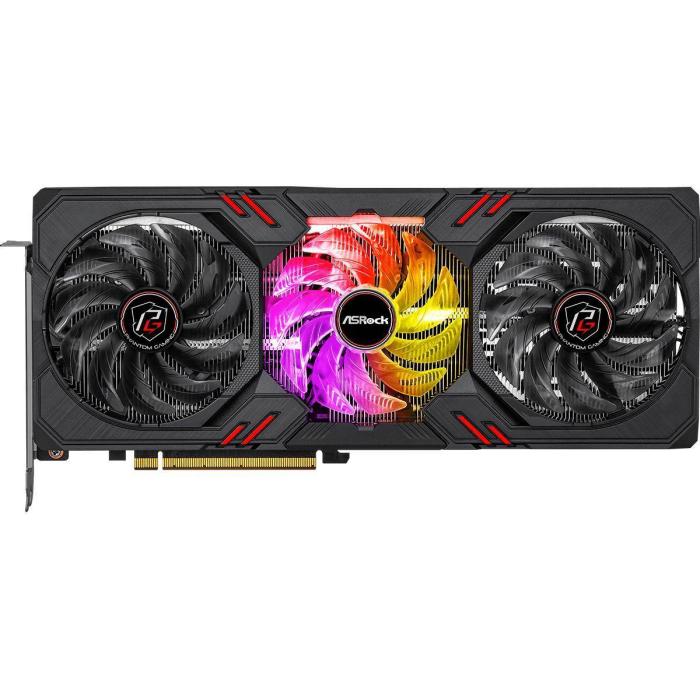

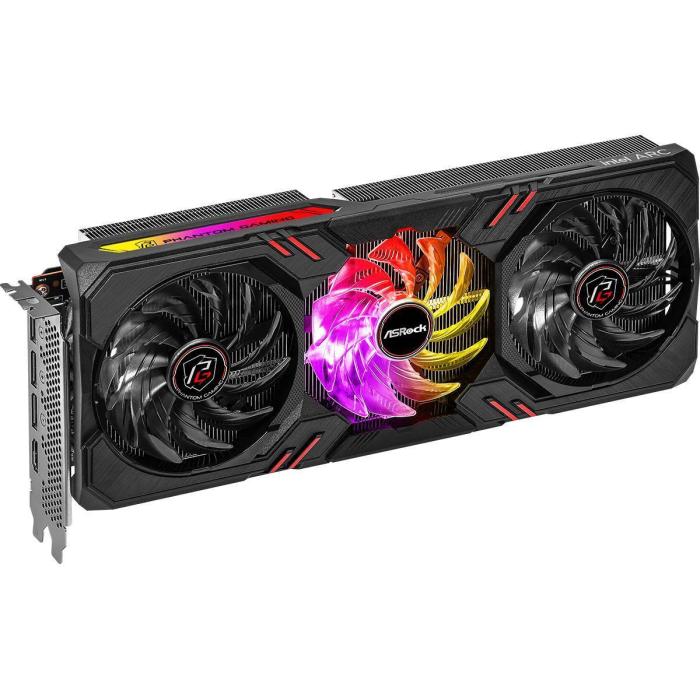

The Asrock Phantom Gaming A770 PG 16GO graphics card features the Intel Arc A770 processor with 16 GB of GDDR6 memory and a 256-bit data width, delivering a transfer speed of 17.5 Gbit/s. Its processor frequency reaches 2200 MHz and it has 32 Xe cores, supporting DirectX 12 Ultimate for demanding games and applications. Connect up to four displays at a maximum resolution of 7680 x 4320 pixels, with three DisplayPort 2.0 ports and one HDMI 2.1. It integrates via a PCI Express x16 4.0 interface, ideal for desktop systems seeking smooth and versatile graphics.
Specifications
Processor
- CUDA: No
- Graphics processor family: Intel
- Graphics processor: Arc A770
- Processor frequency: 2200 MHz
- Maximum resolution: 7680 x 4320 pixels
- Parallel processing technology support: Not supported
- Maximum displays per videocard: 4
Memory
- Discrete graphics card memory: 16 GB
- Graphics card memory type: GDDR6
- Memory bus: 256 bit
- Data transfer rate: 17.5 Gbit/s

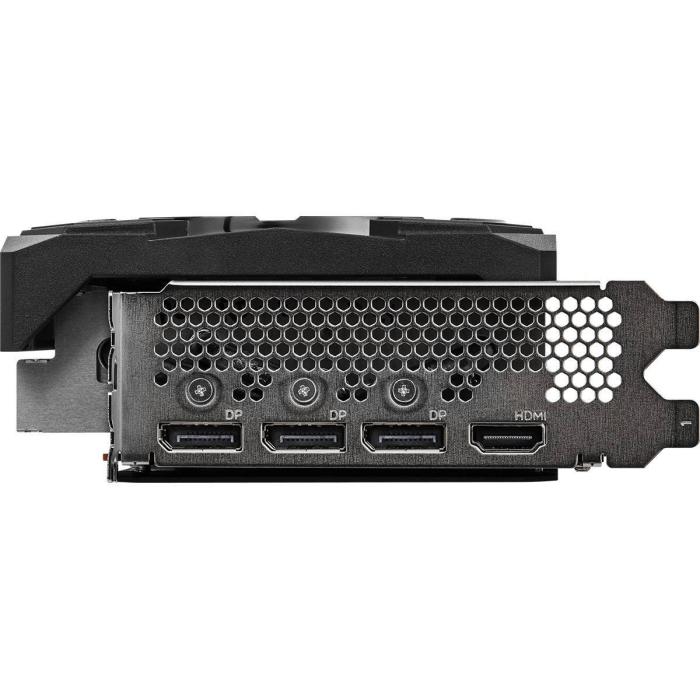

Ports & interfaces
- Interface type: PCI Express x16 4.0
- HDMI ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 3
- DisplayPort version: 2.0
Performance
- TV tuner integrated: No
- DirectX version: 12 Ultimate
- OpenGL version: 4.6
- HDCP: Yes
- Dual Link DVI: No
- Intel® Xe Matrix Extensions (Intel® XMX) Engines: 512
- Xe-cores: 32
Design
- Cooling type: Active
- Cooling technology: Phantom Gaming 3X Cooling
- Number of fans: 3 fan(s)
- Form factor: Full-Height/Full-Length (FH/FL)
- Bracket height: Full-Height (FH)
- Number of slots: 2.8
- Illumination: Yes
- Illumination colour: Multi
- Product colour: Black
Power
- Minimum system power supply: 700 W
- Supplementary power connectors: 2x 8-pin
System requirements
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
Weight & dimensions
- Weight: 1.15 kg
- Length: 305 mm
- Depth: 56 mm
- Height: 131 mm
Packaging data
- Package type: Box
Packaging content
- Quick installation guide: Yes
