Description

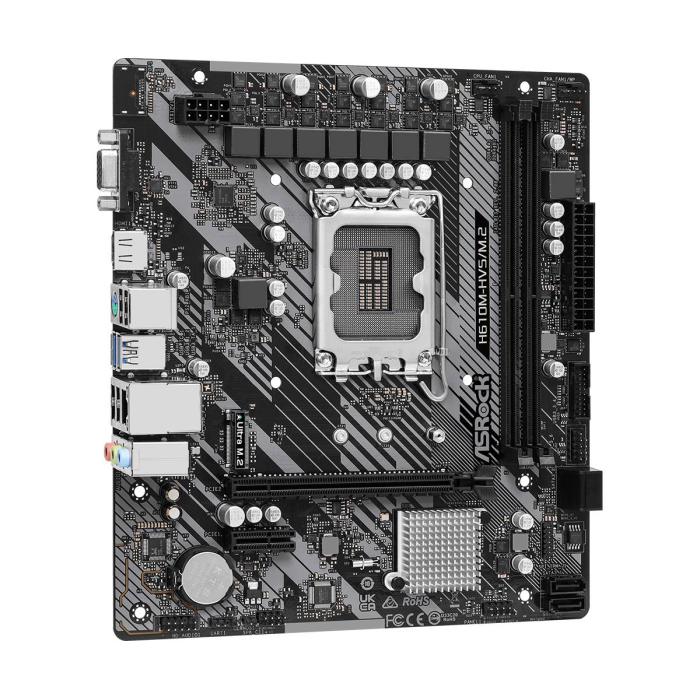

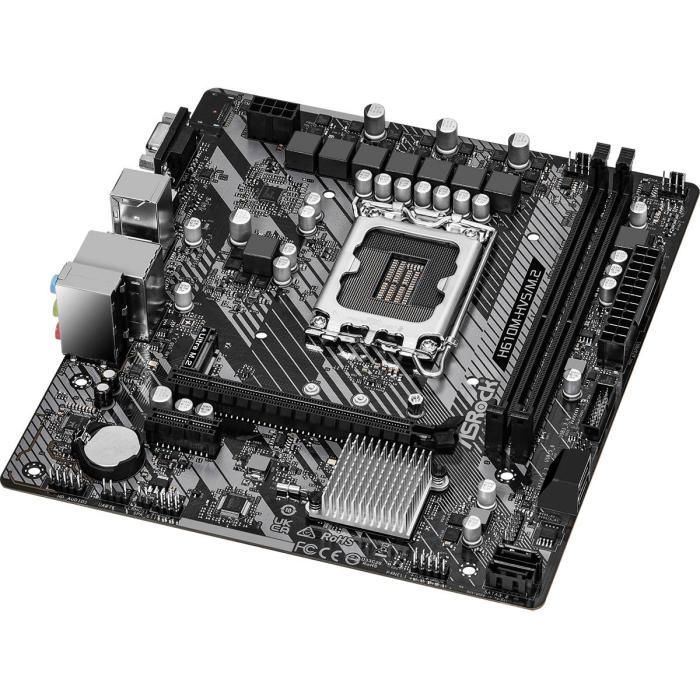

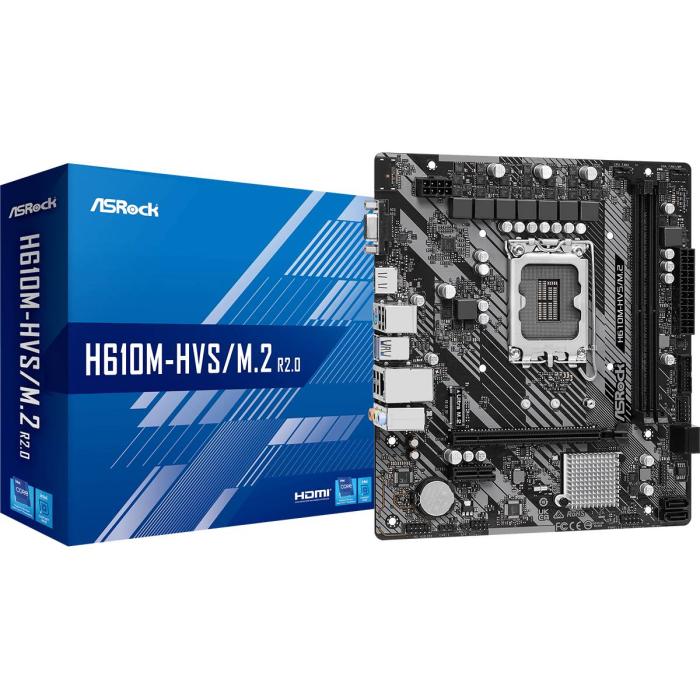

ASRock H610M-HVS/M.2 R2.0 motherboard for Intel LGA 1700 processors, compatible with Core i3, i5 and i7 CPUs, with a maximum of one processor installed. It features two DIMM slots for unbuffered DDR4 memory in dual-channel configuration, supporting up to 64 GB at a clock speed of 3200 MHz and no ECC support. For storage, it supports HDD and SSD drives via M.2 and SATA III interfaces, while its graphics output reaches a maximum resolution of 4096 x 2160 pixels, including HDCP support. It includes a front panel connector to facilitate the connection of front case ports.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
- Maximum number of SMP processors: 1
Memory
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 3200 MHz
- Maximum internal memory: 64 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
Graphics
- Parallel processing technology support: Not supported
- Maximum resolution: 4096 x 2160 pixels
- HDCP: Yes
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Chassis intrusion connector: Yes
- EPS power connector (8-pin): Yes
- TPM connector: Yes

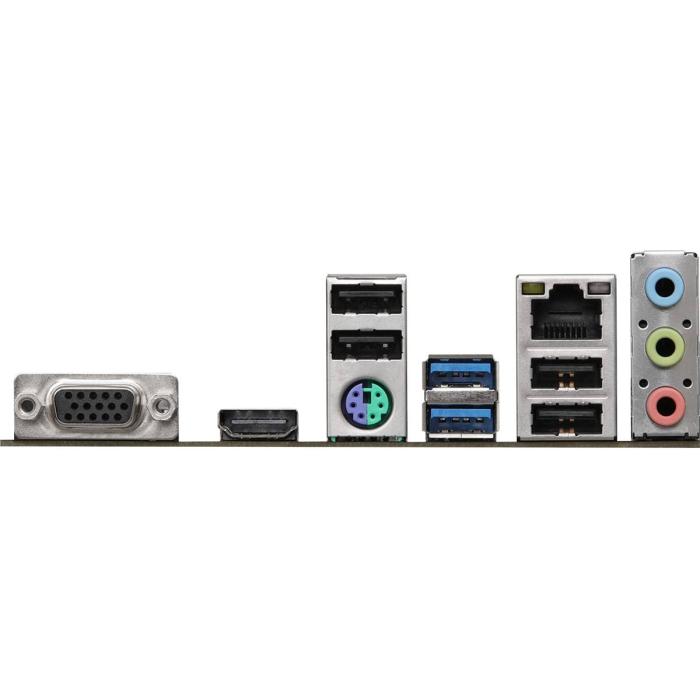

Rear panel I/O ports
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
- Headphone outputs: 1
- Line-in: Yes
- Microphone in: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- LAN controller: Realtek RTL8111H
- Wake-on-LAN ready: Yes
- Wi-Fi: No
Features
- Motherboard chipset: Intel H610
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- PC health monitoring: CPU, Fan, Voltage, Water cooling
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: Intel
- Windows operating systems supported: Windows 10 Education x64, Windows 11 x64
- Certification: - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
Expansion slots
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 1
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 128 Mbit
- System management BIOS (SMBIOS) version: 2.7
Weight & dimensions
- Width: 223 mm
- Depth: 188 mm
Packaging content
- Cables included: SATA
