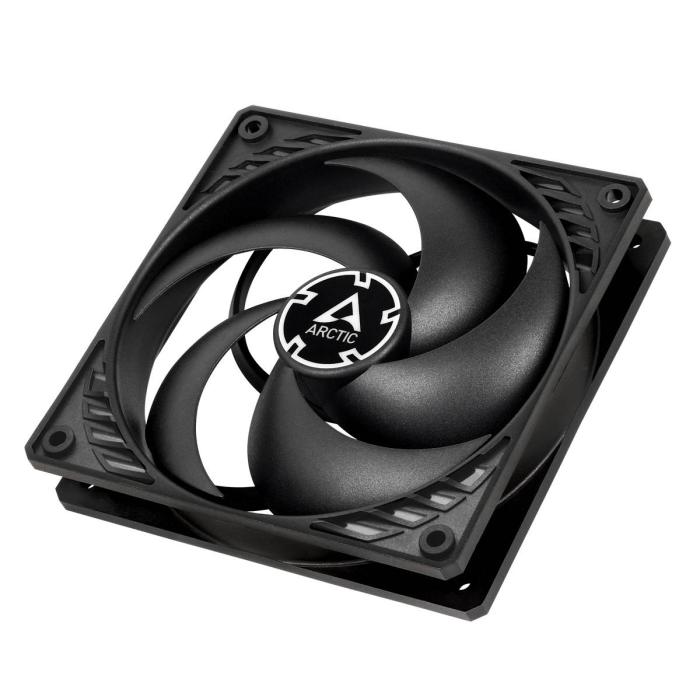

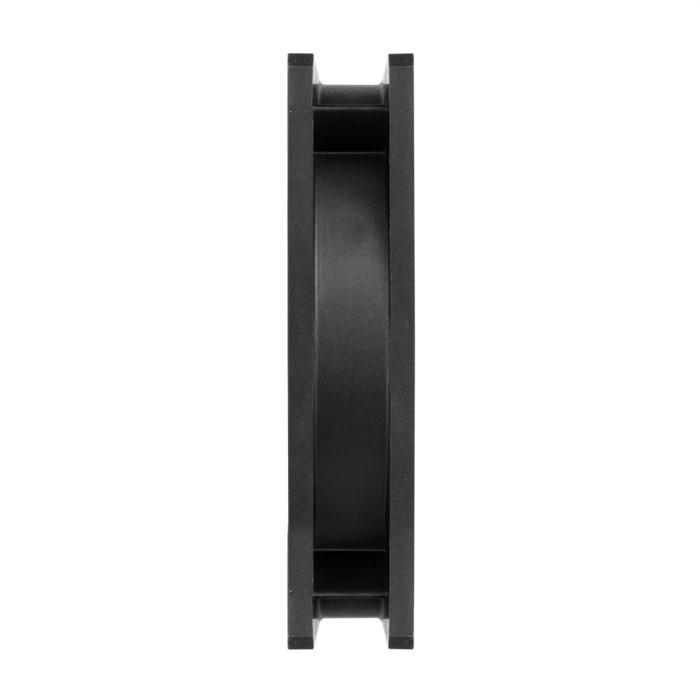

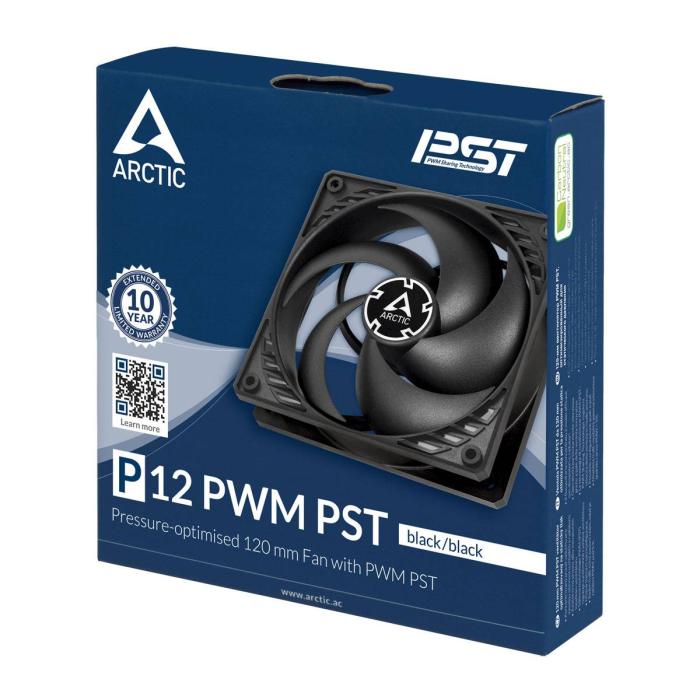

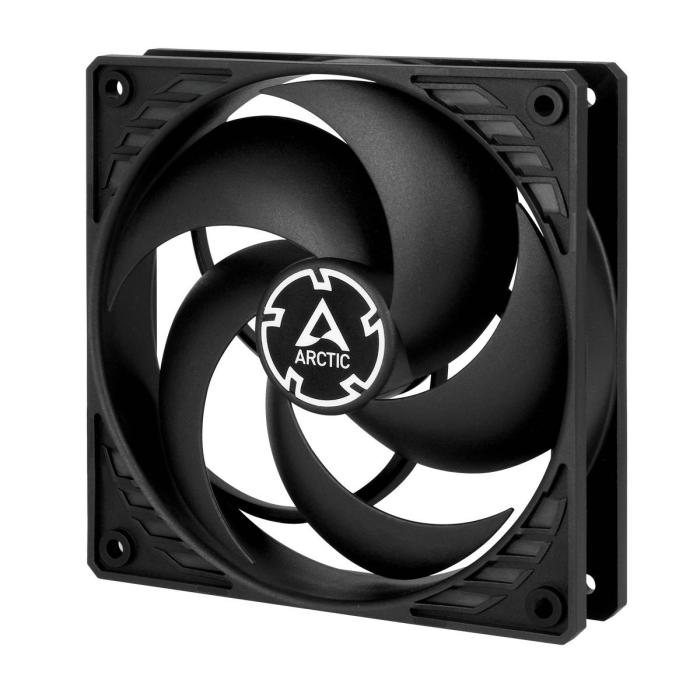

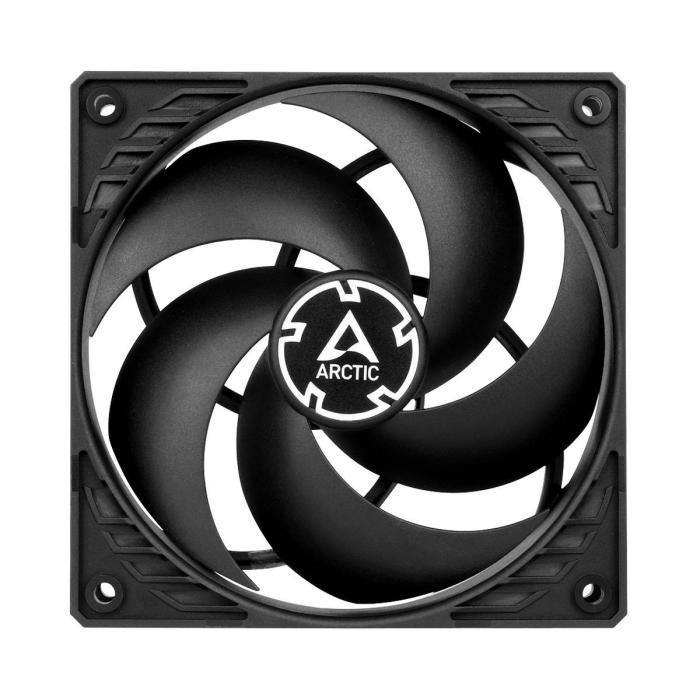

ARCTIC P12 PWM PST (Black/Black) Pressure-optimised 120 mm Fan with PWM PST
More info
Brand: ARCTIC COOLING
13.00 €Stock available: 0 units.
Unavailable
SKU:
81606
PRC:
242005
EAN:
4895213701310
PN:
ACFAN00120A
Description
The ARCTIC P12 PWM PST fan from ARCTIC COOLING is a 12 cm model in black designed to be mounted in the computer case. Its dimensions of 120 x 25 x 120 mm (width x height x depth) and its weight of 145 g make it a compact and light component for renewing the case cooling. It spins between 200 and 1800 RPM and generates an airflow of 56.3 cfm, equivalent to 95.65 m³/h, with a maximum pressure of 2.2 mmH2O. The noise level stays at 0.3 sone, so it works discreetly even at high revolutions. It incorporates pulse width modulation to regulate the speed according to the temperature, and its 4-pin plus 4-pin fan connector makes daisy chaining with other fans easy. The fluid dynamic bearing and its five blades sustain stable operation over time. It runs at 12 V and the 0.4 m cable gives enough slack to reach the connection point on the motherboard.

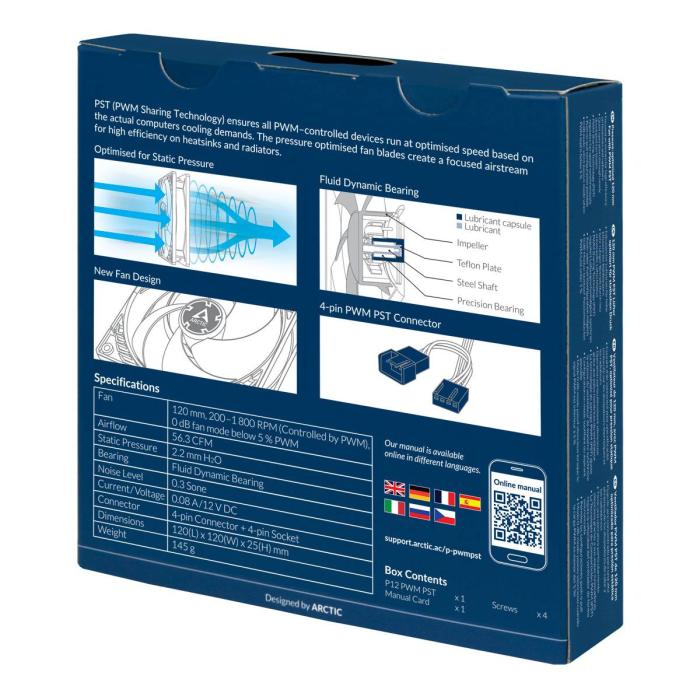

Specifications
Performance
- Pulse-width modulation (PWM) support: Yes
- Bearing type: Fluid Dynamic Bearing (FDB)
- Suitable location: Computer case
- Type: Fan
- Fan diameter: 12 cm
- Supported processor sockets: Not supported
- Compatible processor series: Not supported
- Rotational speed (min): 200 RPM
- Rotational speed (max): 1800 RPM
- Noise level: 0.3 sone
- Maximum airflow: 56.3 cfm
- Airflow: 95.65 m³/h
- Maximum air pressure: 2.2 mmH2O
Design
- Product colour: Black
- Number of fans: 1 fan(s)
- Number of fan blades: 5
- Fan connector: 4-pin + 4-pin
Power
- Power consumption (typical): 0.96 W
- Voltage: 12 V
- Starting voltage: 3.9 V
- Rated current: 0.08 A
Weight & dimensions
- Width: 120 mm
- Depth: 120 mm
- Height: 25 mm
- Weight: 145 g
- Cable length: 0.4 m
- Package width: 123 mm
- Package depth: 123 mm
- Package height: 27 mm
- Package weight: 176 g
Packaging content
- Package type: Box
- Screws included: Yes
- Number of screws: 4
Other features
- Country of origin: China
Logistics data
- Harmonized System (HS) code: 84733080
