ARCTIC P12 Max - High-performance 120 mm PWM Fan
More info
Brand: ARCTIC COOLING
7.01 €Stock available: 0 units.
Unavailable
SKU:
101759
PRC:
452347
EAN:
4895213704076
PN:
ACFAN00280A
Description

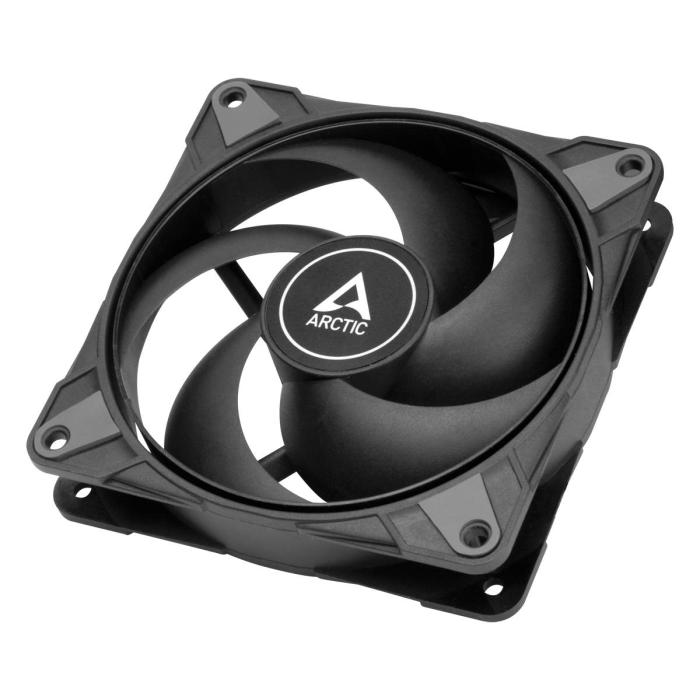

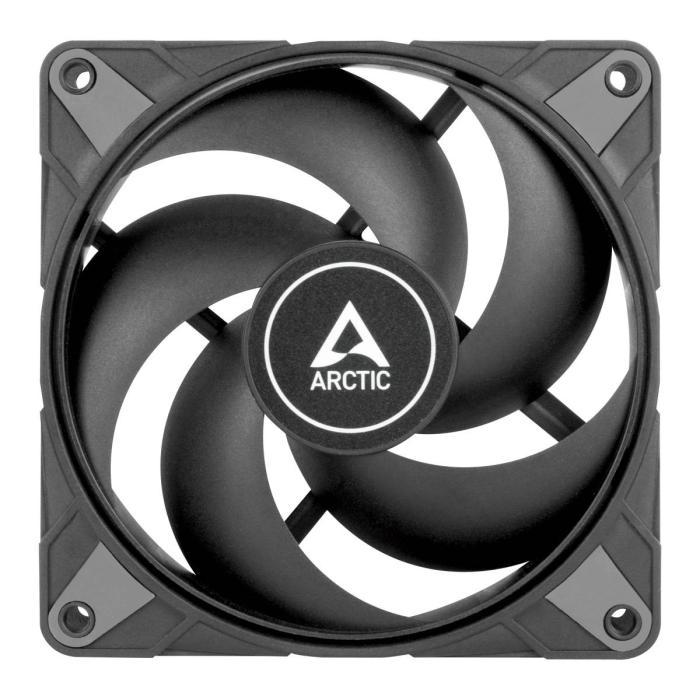

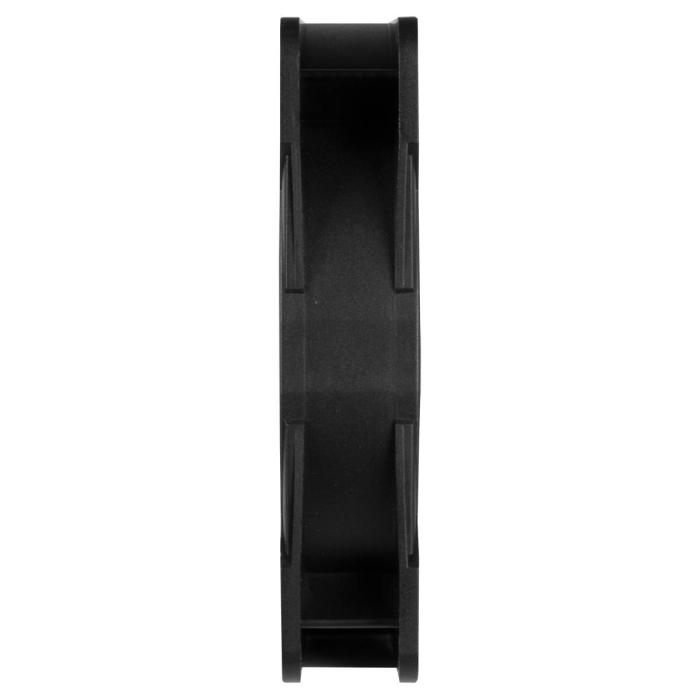

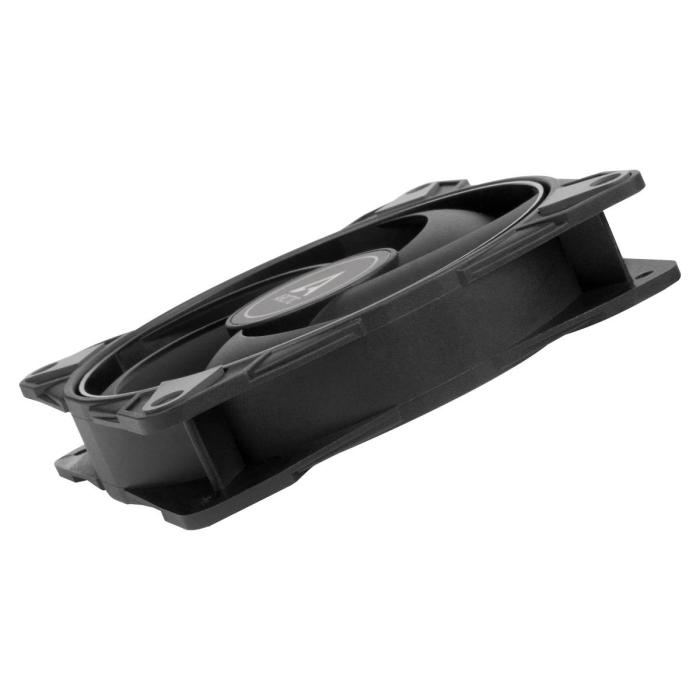

ARCTIC P12 Max 12 cm computer case fan, in black and with dimensions of 120 x 25 x 120 mm. It incorporates a fluid dynamic bearing (FDB), which reduces friction between moving parts and extends the fan's service life. It reaches a rotation speed of 3300 RPM and a maximum air flow of 81.04 cfm, equivalent to 137.69 m³/h. The static pressure of 4.35 mmH2O allows it to move air efficiently even through dense filters and grilles. It is compatible with pulse width modulation (PWM), so the motherboard can regulate its speed between 200 RPM and 3300 RPM depending on the thermal load. Its operation remains at a noise level of 0.6 sone, and it operates within a temperature range of 0 to 40 °C. It includes a 0.4 m cable and weighs 184 g.
Specifications
Performance
- Suitable location: Computer case
- Type: Fan
- Fan diameter: 12 cm
- Supported processor sockets: Not supported
- Compatible processor series: Not supported
- Rotational speed (min): 200 RPM
- Rotational speed (max): 3300 RPM
- Noise level: 0.6 sone
- Maximum airflow: 81.04 cfm
- Airflow: 137.69 m³/h
- Maximum air pressure: 4.35 mmH2O
- Pulse-width modulation (PWM) support: Yes
- Bearing type: Fluid Dynamic Bearing (FDB)
- Quantity per pack: 1 pc(s)
- Fan speed (min): 200 RPM
- Fan speed (max): 3300 RPM
- Fan static pressure: 4.35 mmH2O
- Fan's mean time to failure (MTTF): 500000 h
- Operating temperature (T-T): 0 - 40 °C
Design
- Product colour: Black
- Number of fan blades: 5
- Fan connector: 4-pin
Power
- Voltage: 12 V
- Starting voltage: 3.9 V
- Maximum current: 0.29 A
- Fan voltage: 12 V
- Fan current: 0.29 A
Weight & dimensions
- Width: 120 mm
- Depth: 120 mm
- Height: 25 mm
- Weight: 184 g
- Cable length: 0.4 m
- Package width: 127 mm
- Package depth: 125 mm
- Package height: 30 mm
- Package weight: 214 g
Packaging content
- Package type: Box
- Screws included: Yes
Other features
- Country of origin: Hong Kong
