Description

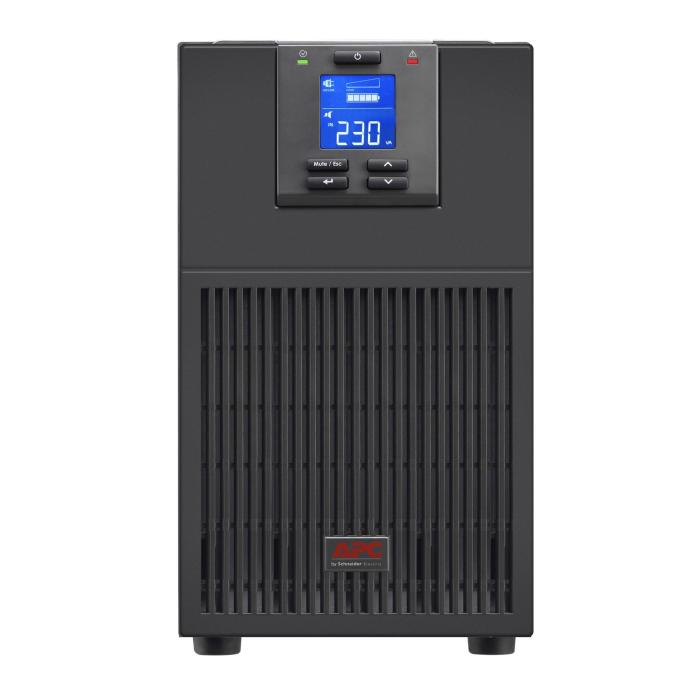

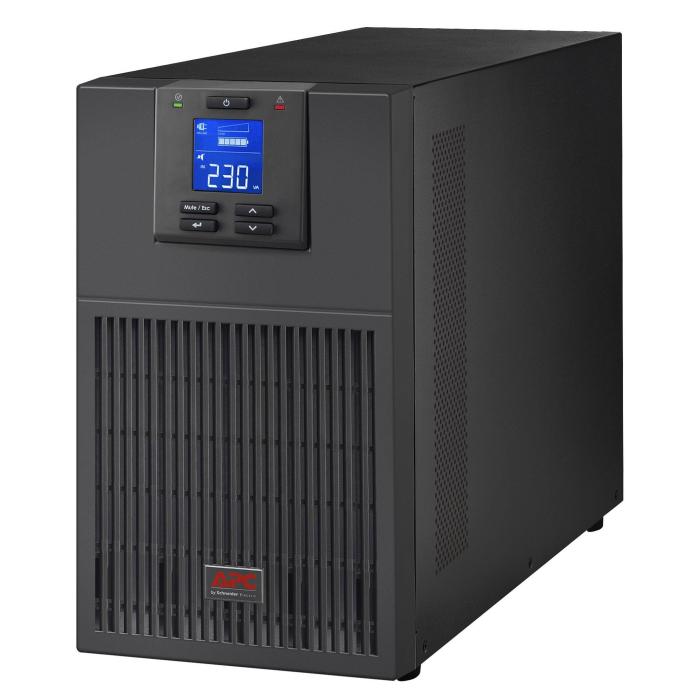

The APC SRV6KIL UPS is a double-conversion (online) uninterruptible power supply with 6 kVA output power capacity and 6000 W power, with a pure sine wave output. It features a 600 J surge energy rating and operates with an input operating voltage of between 220 V and 240 V, as well as an output operating voltage of between 220 V and 240 V, with an input frequency of 40/70 Hz and a crest factor of 3:1. It has an ECO mode and auto-restart, as well as emergency power off. Its audible alarms warn when it switches to battery, when the battery is low and when there is an overload. It features SmartSlot and a serial interface. This model weighs 73 kg and measures 380 x 368 x 485 mm (width x height x depth).
Specifications
Features
- Output operation voltage (max): 240 V
- Surge energy rating: 600 J
- Crest factor: 3:1
- ECO mode: Yes
- Emergency Power Off (EPO): Yes
- Audible alarm(s): Yes
- Audible alarm modes: Alarm when on battery, Low battery alarm, Overload alarm
- Auto-restart: Yes
- UPS topology: Double-conversion (Online)
- Output power capacity: 6 kVA
- Output power: 6000 W
- Waveform: Pure sine
- Input operation voltage (min): 220 V
- Input operation voltage (max): 240 V
- Input frequency: 40/70 Hz
- Output operation voltage (min): 220 V

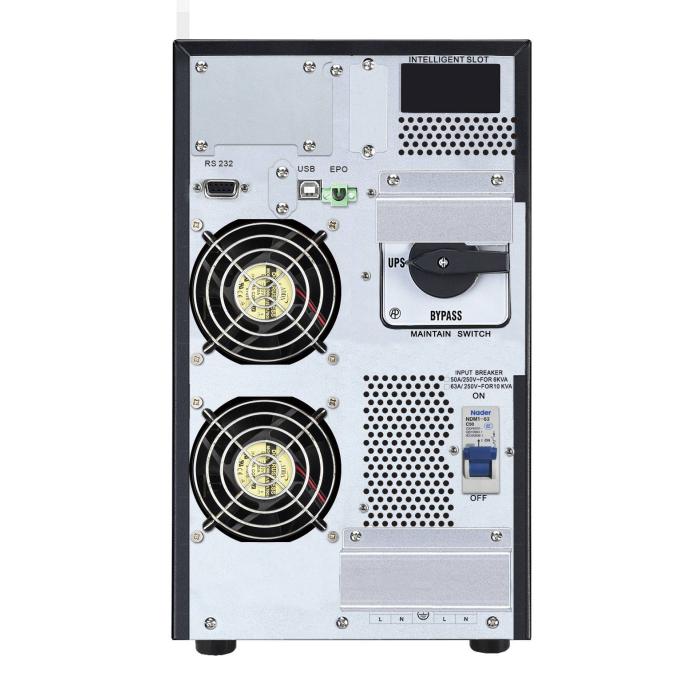

Ports & interfaces
- USB port: Yes
- USB 2.0 ports quantity: 1
- Serial interface: Yes
- Serial interface type: RS-232
- Serial ports quantity: 1
- Emergency Power Off (EPO) connector: Yes
- SmartSlot: Yes
- AC outlet types: Hard Wire 3-wire (1P + N + E)
Battery
- Battery technology: Sealed Lead Acid (VRLA)
- Battery recharge time: 3 h
- Automatic battery test: Yes
Design
- Form factor: Tower
- Cooling type: Active
- Display type: LCD
- LED indicators: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
- Non-operating altitude: 0 - 14763.6 m
Certificates
- Compliance certificates: RoHS
- Certification: CE, IEC 62040-1-1, IEC 62040-1-2 REACH
Packaging content
- Cables included: USB cable
- Manual: Yes
Weight & dimensions
- Width: 380 mm
- Depth: 485 mm
- Height: 368 mm
- Weight: 73 kg
- Battery weight: 79 kg
Logistics data
- Harmonized System (HS) code: 85078000
Other features
- Nominal output voltage: 230 V
- Nominal input voltage: 230 V
