Description

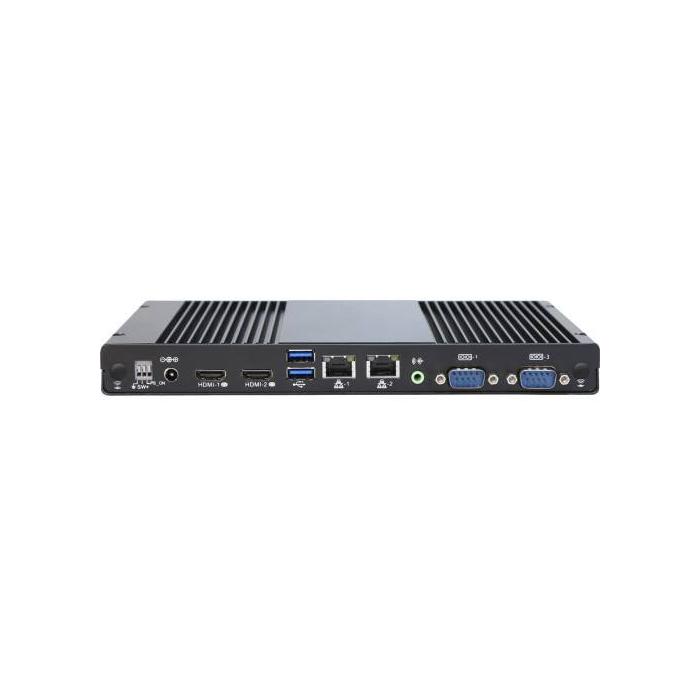

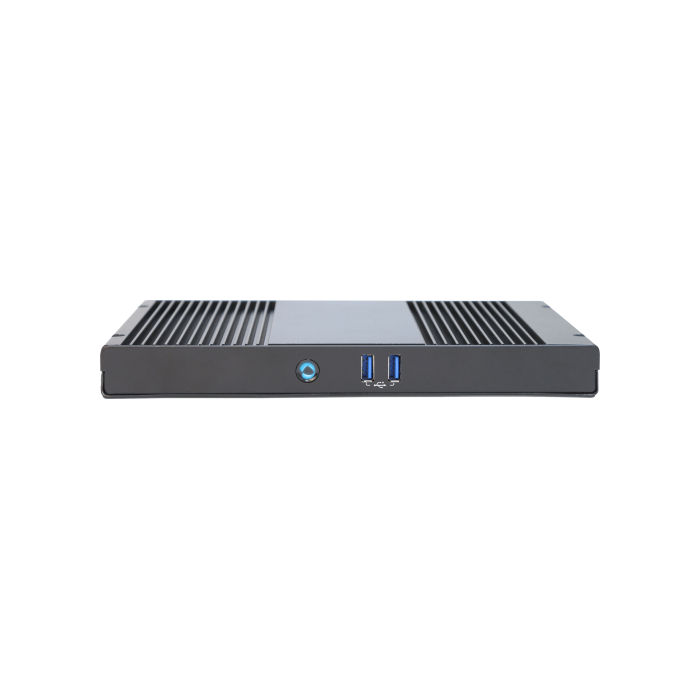

AOPEN Mini PC with seventh-generation Intel® Core™ i5 processor, designed as a compact black workstation, featuring 8 GB of dual-channel DDR4-SDRAM memory and a 128 GB SSD for fast storage. Its 2-core, 4-thread processor reaches 3.6 GHz in turbo mode, with efficient 9.5 W power consumption, making it suitable for professional environments. Includes Windows 10 IoT preinstalled, expandable up to 32 GB of RAM via its SO-DIMM slot, and offers a memory frequency of 2133 MHz for smooth responsiveness in everyday tasks. This unit combines basic performance and a compact size, ideal for offices or point-of-sale applications where space is limited.
Specifications
Processor
- Processor manufacturer: Intel
- Processor family: Intel® Core™ i5
- Processor generation: 7th gen Intel® Core™ i5
- Processor cores: 2
- Processor threads: 4
- Processor boost frequency: 3.6 GHz
- Processor frequency: 2.3 GHz
- Processor cache: 4 MB
- Processor base power: 9.5 W
- Maximum turbo power: 15 W
Memory
- Internal memory: 8 GB
- Maximum internal memory: 32 GB
- Internal memory type: DDR4-SDRAM
- Memory layout (slots x size): 2 x 4 GB
- Memory slots: 1x SO-DIMM
- Memory clock speed: 2133 MHz
- Memory channels: Dual-channel
Storage
- Total storage capacity: 128 GB
- Storage media: SSD
- Optical drive type: No
- Total SSDs capacity: 128 GB
- Number of SSDs installed: 1
- SSD capacity: 128 GB
- SSD interface: M.2
Graphics
- Discrete graphics card: No
- On-board graphics card: Yes
- On-board GPU manufacturer: Intel
- On-board graphics card family: Intel® HD Graphics
- On-board graphics card model: Intel® HD Graphics
Network
- Ethernet LAN: Yes
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- LAN controller: Intel® I210-AT, Intel® I219-LM
- Wi-Fi: No
Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- HDMI ports quantity: 2
- HDMI version: 2.0
- Ethernet LAN (RJ-45) ports: 2
- Line-out: Yes
- DC-in jack: Yes
Design
- Chassis type: Mini PC
- Volume: 0.95 L
- Product colour: Black
Performance
- Market positioning: Business
- Audio chip: Realtek ALC269Q
- Built-in speaker(s): No
- Trusted Platform Module (TPM): Yes
- Product type: Mini PC
Software
- Operating system installed: Windows 10 IoT
Power
- Power supply: 66 W
- Power supply input voltage: 100 - 240 V
Operational conditions
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 95%
Weight & dimensions
- Width: 240 mm
- Depth: 158 mm
- Height: 25 mm
- Weight: 1.4 kg
Display
- Display included: No
