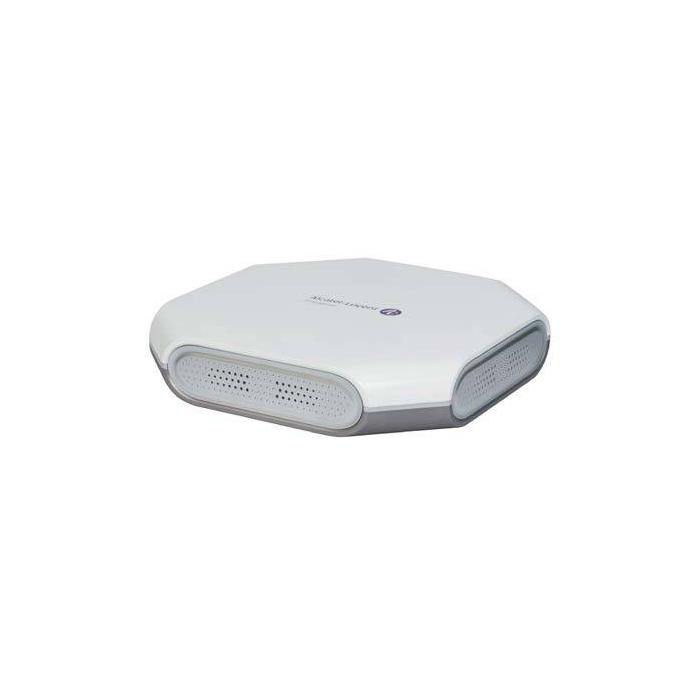

Alcatel-Lucent Enterprise OmniAccess Stellar AP1231 1733 Mbit/s White Power over Ethernet (PoE)
More info
Brand: ALCATEL-LUCENT
1,559.00 €Stock available: 0 units.
Unavailable
SKU:
83316
PRC:
268491
EAN:
3326744974597
PN:
oaw-ap1231-rw
Description
The Alcatel-Lucent Enterprise OmniAccess Stellar AP1231 access point, in a white finish, offers a transfer speed of up to 1733 Mbit/s and operates on the 2.4 GHz and 5 GHz bands, with a transmission power of 18 dBmW. It supports Ethernet LAN connections of up to 2500 Mbit/s, two RJ-45 ports and one USB 2.0 port, and can manage up to 768 users with 24 configured SSIDs. It includes Quality of Service (QoS) and Wi-Fi Multimedia (WMM) features, along with automatic channel selection and support for SNMP and SSID security algorithms. It is powered via Power over Ethernet (PoE) with an output voltage of 48 V and a maximum consumption of 27.6 W, while its modulation ranges from BPSK to 256-QAM. It features syslog for network management and monitoring.
Specifications
Features
- 2.4 GHz: Yes
- 5 GHz: Yes
- Maximum data transfer rate: 1733 Mbit/s
- Ethernet LAN data rates: 10, 100, 1000, 2500 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11r, I
- Number of users: 768 user(s)
- Automatic channel selection: Yes
- Modulation: 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK
- Wi-Fi Multimedia (WMM)/(WME): Yes
- Quality of Service (QoS) support: Yes
- Transmitting power: 18 dBmW
Security
- Security algorithms: SNMP, SSID
- Number of SSID supported: 24
Management features
- Syslog: Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 2
- USB 2.0 ports quantity: 1
Power
- Power over Ethernet (PoE): Yes
- Output voltage: 48 V
- Power consumption (max): 27.6 W
Design
- Product colour: White
- Cable lock slot: Yes
- Cable lock slot type: Kensington
- Reset button: Yes
- LED indicators: Link, System
- Internal: No
Antenna
- Antenna features: Integrated antenna
- Antenna gain level (max): 5.9 dBi
Certificates
- Certification: CB, cTUVus, FCC, CE, RoHS, REACH, WEEE, UL2043
Weight & dimensions
- Width: 230 mm
- Depth: 230 mm
- Height: 47 mm
- Weight: 1.4 kg
Packaging data
- Package width: 283 mm
- Package depth: 267 mm
- Package height: 80 mm
- Package weight: 1.77 kg
Operational conditions
- Operating relative humidity (H-H): 10 - 90%
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
Logistics data
- Harmonized System (HS) code: 85176990
