Description

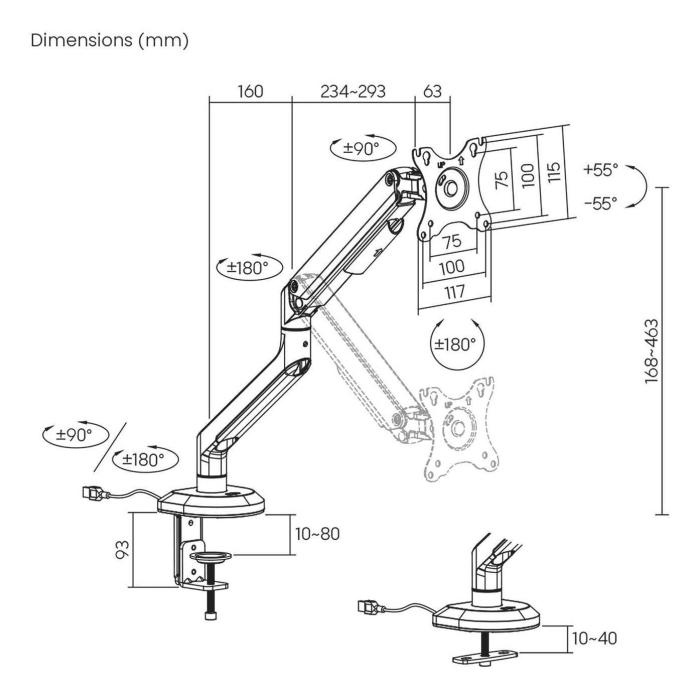

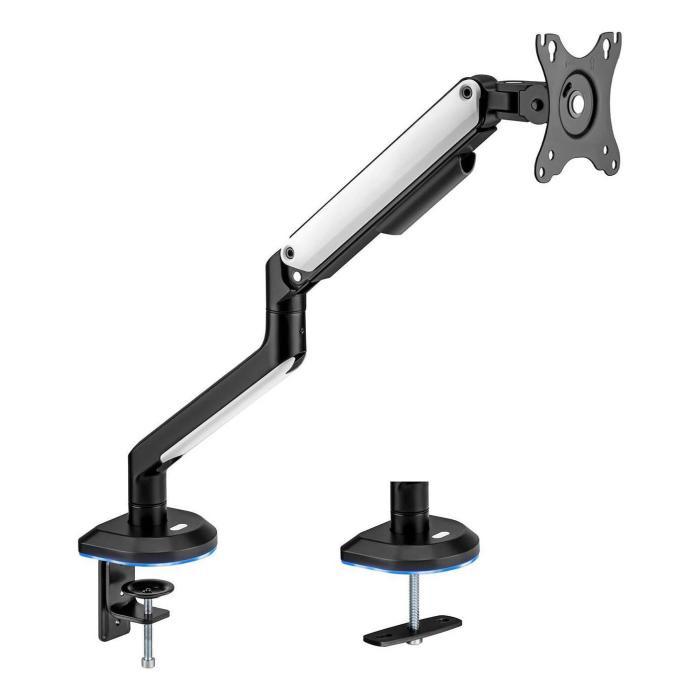

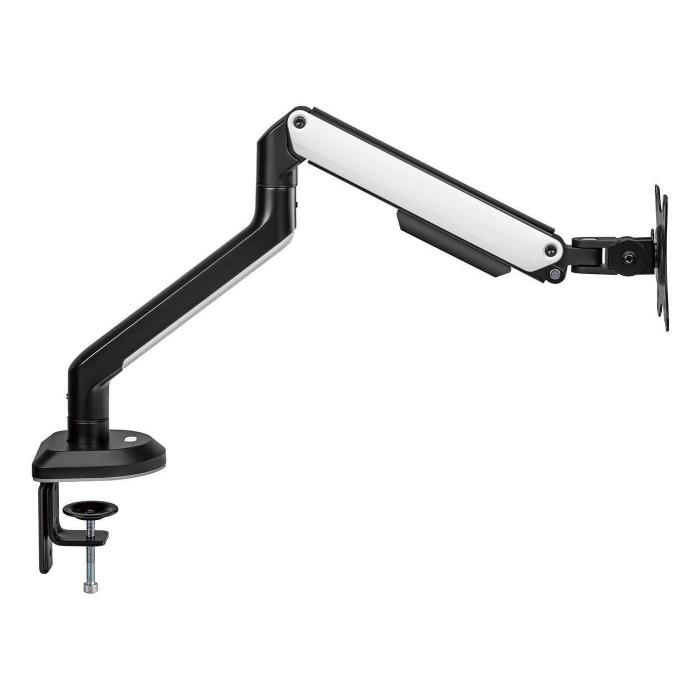

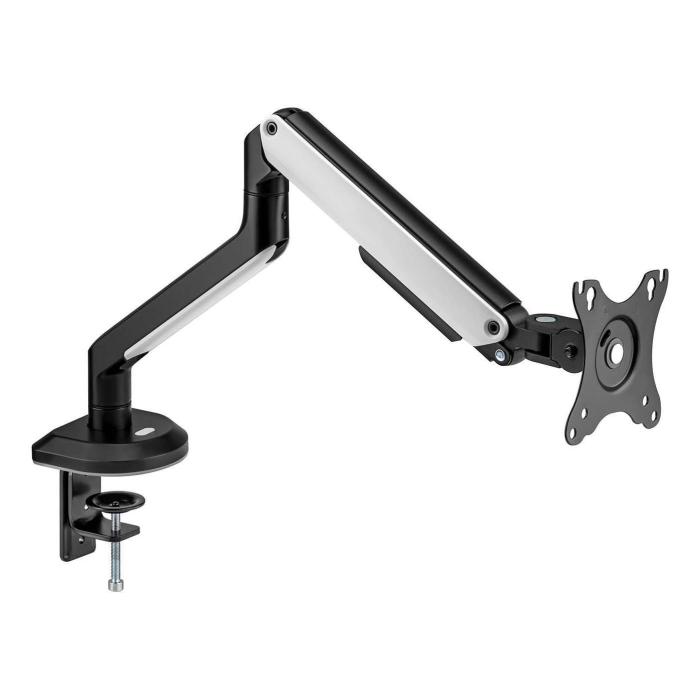

AISENS desk mount with 3 pivots and 1 arm with counterweight for monitors and televisions from 17 to 32 inches, maximum capacity of 9 kg and black and white colour. It is mounted on a desktop using a clamp or screws, with compatibility with VESA interface 75 x 75 mm and 100 x 100 mm, and supports a desk thickness of up to 8 cm with clamp and up to 4 cm with support plate. Height adjustment is controlled by gas spring and moves within a range of 168 to 463 mm. It offers 360° swivel, 180° rotation and -55 to 55° tilt, with the housing made of steel. Its dimensions are 117 mm wide and 521.5 mm high.
Specifications
Mounting
- Maximum weight capacity: 9 kg
- Minimum screen size: 43.2 cm (17")
- Number of displays supported: 1
- Maximum weight capacity (per display): 9 kg
- Maximum screen size: 81.3 cm (32")
- Mounting: Clamp/Bolt-through
- Mounting type: Desk
- Minimum VESA mount: 75 x 75 mm
- Maximum VESA mount: 100 x 100 mm
- Panel mounting interface: 75 x 75, 100 x 100 mm
- Clamp mount desk thickness (max): 8 cm
- Grommet mount desk thickness (max): 4 cm
Ergonomics
- Height adjustment: Yes
- Height adjustment type: Gas spring
- Height adjustment range: 168 - 463 mm
- Tilt adjustment: Yes
- Tilt angle range: -55 - 55°
- Swivelling: Yes
- Swivel angle: 360°
- Rotating: Yes
- Angle of rotation: 180°
- Number of pivot points: 3
- Number of arms: 1
- Cable management: Yes
- Illumination LED: Yes
Design
- Housing material: Steel
- Product colour: Black, White
Weight & dimensions
- Width: 117 mm
- Height: 521.5 mm
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 176 mm
- Package depth: 437 mm
- Package height: 112 mm
- Package volume: 8614.14 cm³
- Package weight: 3.12 kg
- Package type: Box
Packaging content
- Clamp included: Yes
- Mounting kit: Yes
- Manual: Yes
Logistics data
- Master (outer) case width: 455 mm
- Master (outer) case length: 552 mm
- Master (outer) case height: 245 mm
- Master (outer) case gross weight: 18.7 kg
- Products per master (outer) case: 6 pc(s)
- Master (outer) case volume: 61534.2 cm³
