Description

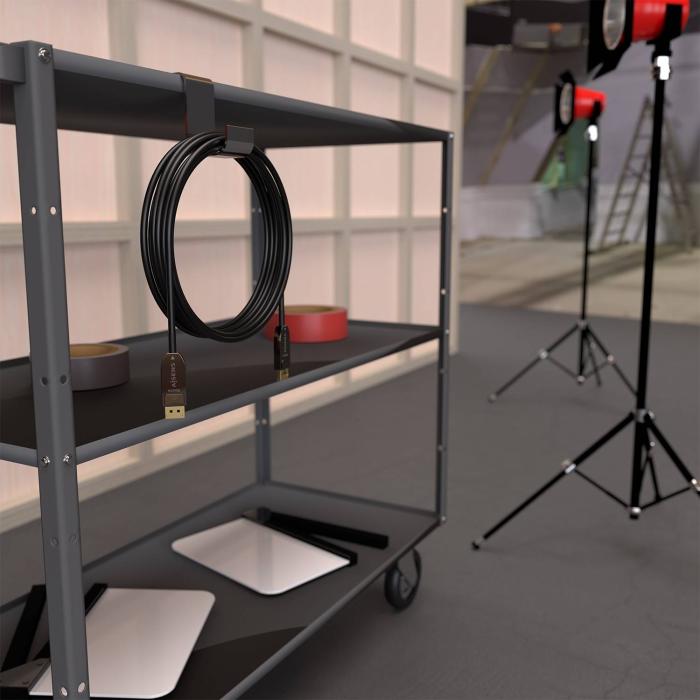

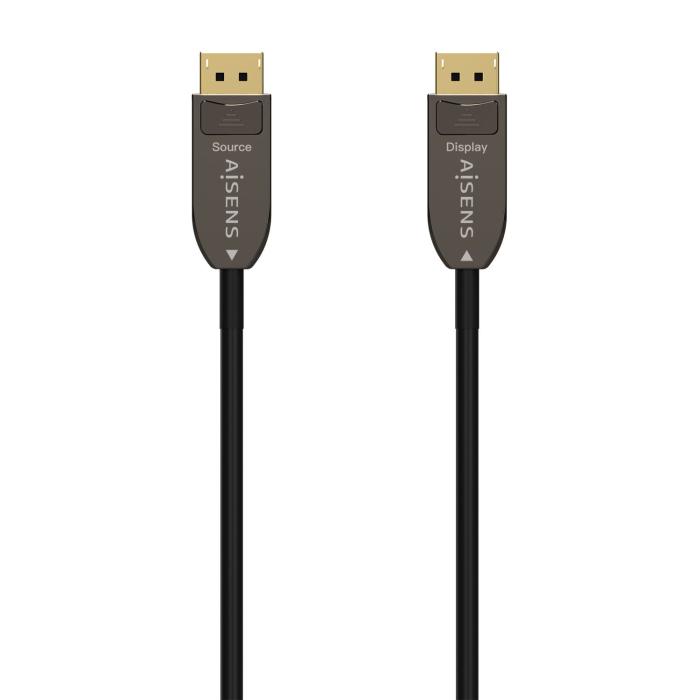

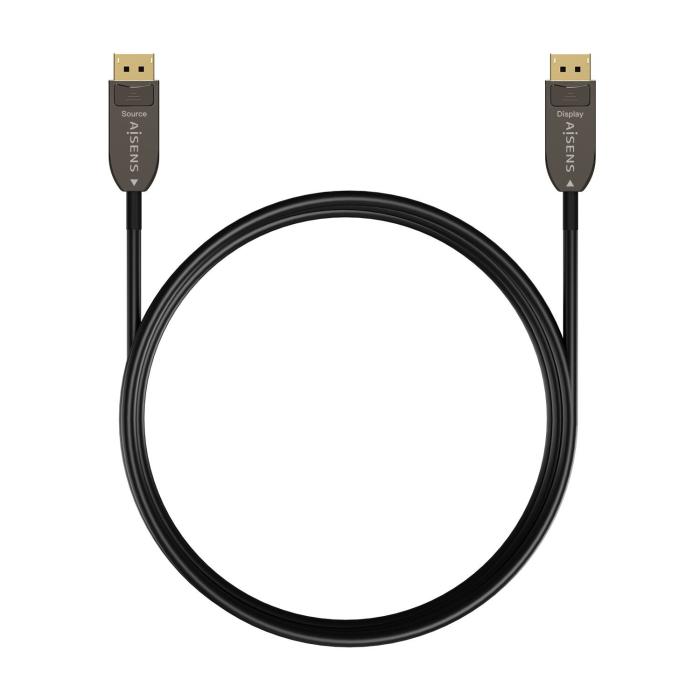

AISENS 10 m black DisplayPort cable with male-to-male DisplayPort connectors, made of optical fibre and copper for stable transmission. It supports HBR3, Display Stream Compression and MST technology, achieving resolutions of 7680 x 4320 pixels at 120 Hz or 8K at 60 Hz with 4:4:4 colour sampling and a speed of 32.4Gbps (according to the name). Its latchable connectors with gold-plated contacts and right-angled form factor ensure a firm, durable connection, with a tensile strength of 100 N. Compatible with resolutions from Full HD up to 8K, it is a versatile option for setups requiring long length and high performance.
Specifications
Features
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Gold
- DisplayPort version: 1.4
- Maximum resolution: 7680 x 4320 pixels
- Supported graphics resolutions: 1920 x 1080 (HD 1080), 3840 x 2160, 5120 x 2880, 7680 x 4320
- Maximum refresh rate: 120 Hz
- Display Stream Compression (DSC): Yes
- Display Stream Compression (DSC) version: 1.2
- Connector 1 lockable: Yes
- Connector 2 lockable: Yes
- Cable length: 10 m
- Connector 1: DisplayPort
- Connector 2: DisplayPort
- Connector 1 gender: Male
- Connector 2 gender: Male
- Product colour: Black
- Cable material: Fibre optic/Copper
- Data transfer rate: 32.4 Gbit/s
- Channels quantity: 32 channels
- HBR3 support: Yes
- Multi-Stream Transport (MST): Yes
- Tensile strength: 100 N
- Colour sampling: 4:4:4
Operational conditions
- Operating temperature (T-T): -40 - 70 °C
Certificates
- Compliance certificates: RoHS
Weight & dimensions
- Bend radius (min): 2 cm
Packaging data
- Package width: 150 mm
- Package depth: 150 mm
- Package height: 50 mm
- Package weight: 530 g
- Package volume: 1125 cm³
Packaging content
- Quantity per pack: 1 pc(s)
Logistics data
- Master (outer) case width: 185 mm
- Master (outer) case length: 330 mm
- Master (outer) case height: 285 mm
- Master (outer) case gross weight: 5.3 kg
- Products per master (outer) case: 10 pc(s)
- Master (outer) case volume: 17399.25 cm³
