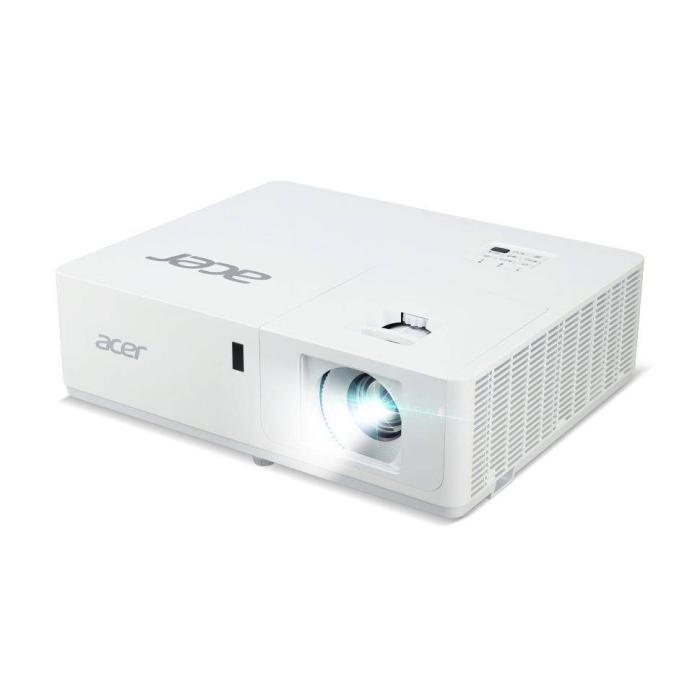

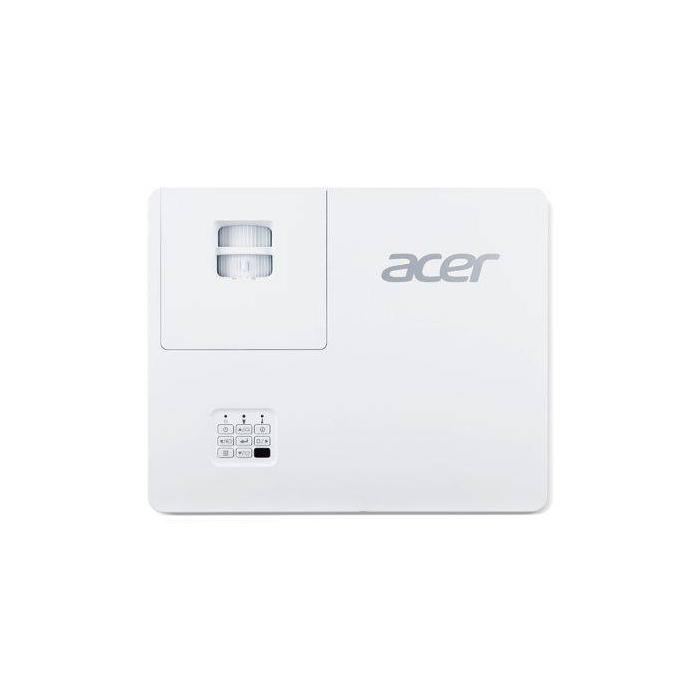

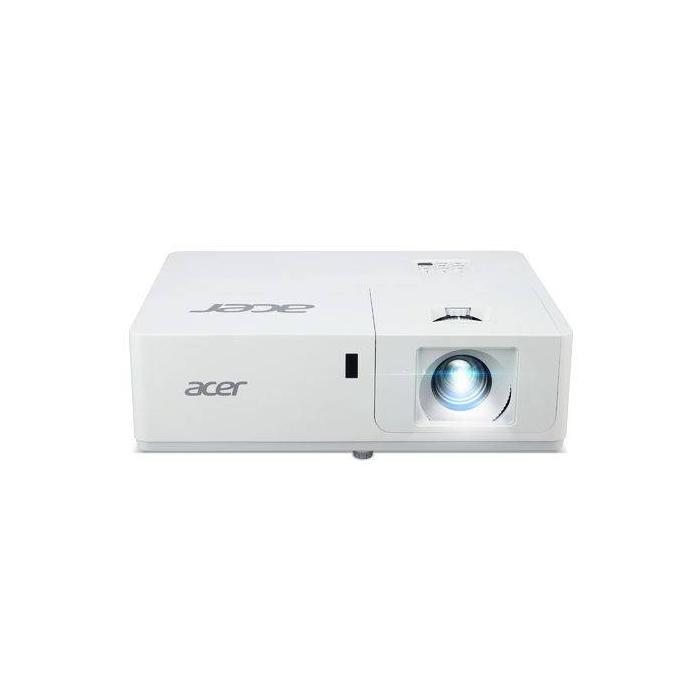

Acer PL6610T data projector Large venue projector 5500 ANSI lumens DLP WUXGA (1920x1200) White
Acer PL6610T, 5500 ANSI lumens, DLP, WUXGA (1920x1200), 2000000:1, 16:10, 509.8 - 7620 mm (20.1 - 300").
More infoBrand: ACER
2,010,00 €Stock available: 0 units.
Unavailable
SKU:
113544
PRC:
365588
EAN:
4710180131321
PN:
MR.JR611.001
Description
The Acer PL6610T is a white DLP data projector designed for large venues, with a native WUXGA resolution of 1920x1200 and a native aspect ratio of 16:10. It offers a brightness of 5500 ANSI lumens, which drops to 4400 ANSI lumens in eco mode, and a typical contrast ratio of 2000000:1 with 80% uniformity. The light source lasts up to 20000 h, so maintenance is spaced out over time. It supports screens from 509.8 to 7620 mm and projection distances from 1 to 9.3 m, with compatibility for 4:3, 16:10 and 16:9 aspect ratios. It features horizontal and vertical keystone correction of ±30° to adjust the image according to the position of the unit. It reproduces 1.073 billion colours and handles horizontal synchronisation of 15 to 100 kHz and vertical synchronisation of 0.024 to 0.12 kHz. Its dimensions are 374 x 117 x 302 mm (width x height x depth) and it weighs 6 kg.
Specifications
Projector
- Supported aspect ratios: 4:3,16:10,16:9
- Screen size compatibility: 509.8 - 7620 mm (20.1 - 300")
- Projection distance: 1 - 9.3 m
- Projector brightness: 5500 ANSI lumens
- Projection technology: DLP
- Projector native resolution: WUXGA (1920x1200)
- Contrast ratio (typical): 2000000:1
- Native aspect ratio: 16:10
- Number of colours: 1.073 billion colours
- Projector brightness (economic mode): 4400 ANSI lumens
- Uniformity: 80%
- Keystone correction, horizontal: -+30°
- Keystone correction, vertical: -+30°
- Horizontal synchronization (min): 15 kHz
- Horizontal synchronization (max): 100 kHz
- Vertical synchronization (min): 0.024 kHz
- Vertical synchronization (max): 0.12 kHz
Light source
- Light source type: Laser/LED hybrid
- Service life of light source: 20000 h
Lens system
- Focal length range: 20.91 - 32.63 mm
- Aperture range (F-F): 2.5 - 3.26
- Zoom capability: Yes
- Zoom ratio: 1.61:1
- Digital zoom: 2x
- Throw ratio: 1.4 - 2.24:1
- Vertical lens shift range: 103 - 118%
Video
- Full HD: Yes
- 3D Ready: Yes

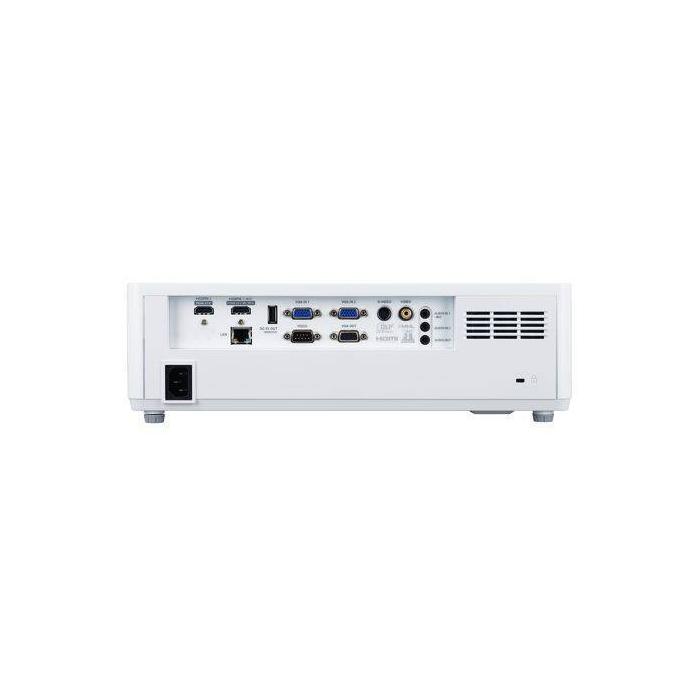

Ports & interfaces
- S-Video inputs quantity: 1
- HDBaseT port: Yes
- Headphone outputs: 1
- Microphone in: Yes
- Serial interface type: RS-232
- PC Audio in: Yes
- PC Audio out: Yes
- VGA (D-Sub) ports quantity: 2
- HDMI ports quantity: 2
- Composite video in: 1
Network
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
Features
- Noise level (economic mode): 28 dB
- Projection modes: Ceiling, Front, Rear
- Noise level: 31 dB
Multimedia
- Built-in speaker(s): Yes
- RMS rated power: 20 W
- Number of built-in speakers: 2
Design
- Product type: Large venue projector
- Product colour: White
- Placement: Ceiling
Display
- Built-in display: No
Power
- Power source: AC
- Power consumption (typical): 321 W
- Power consumption (standby): 0.5 W
- AC input voltage: 120 - 230 V
- AC adapter output voltage: 100 - 240 V
Weight & dimensions
- Width: 374 mm
- Depth: 302 mm
- Height: 117 mm
- Weight: 6 kg
- Package width: 520 mm
- Package depth: 425 mm
- Package height: 225 mm
- Package weight: 8.3 kg
Packaging content
- Remote control included: Yes
- Cables included: AC, HDMI
Other features
- RS-232 ports: 1
