Description

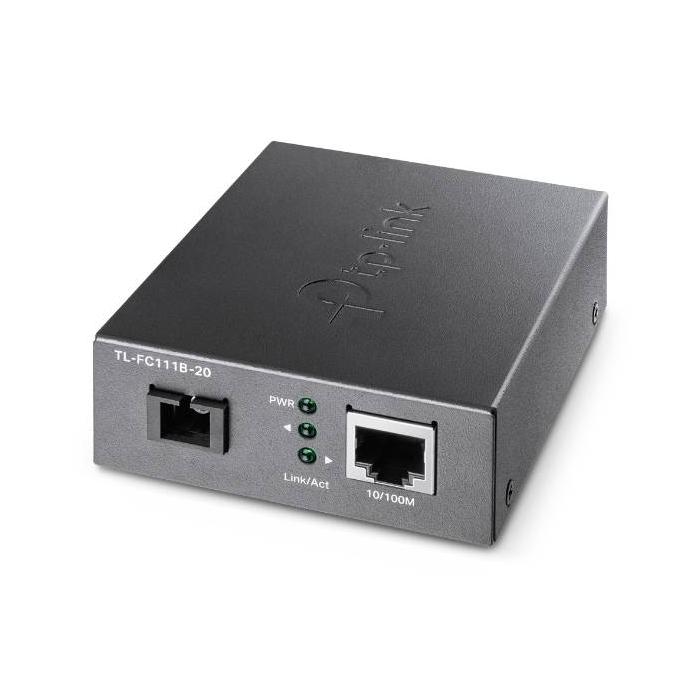

The TP-Link TL-FC111B-20 is a black media converter that transforms signals between copper cable and single-mode fibre optic. It reaches a data transfer speed of 100 Mbit/s and supports a single fibre channel with SC connector. It supports 9/125 µm single-mode cables and covers transfer distances of up to 20000 m, making it suitable for linking long runs within a network. On the copper side it is compatible with 10BASE-T and 100BASE-T, as well as Cat3, Cat4, Cat5 and Cat5e cables. It incorporates auto-negotiation and Auto MDI/MDI-X, so it adjusts the speed and the order of the pairs without manual intervention, and allows full and half duplex. It also supports flow control and follows the IEEE 802.3, IEEE 802.3i and IEEE 802.3x standards. Its LED indicators show activity, link and power. Its dimensions are 94.5 x 27 x 73 mm (width x height x depth).
Specifications
Network
- Maximum data transfer rate: 100 Mbit/s
- Networking standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3x
- Copper ethernet cabling technology: 10BASE-T, 100BASE-T
- Fiber ethernet cabling technology: 100BASE-FX
- Data transfer rate: 100 Mbit/s
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- Duplex system: Full, Half
- Cable types supported: Cat3, Cat4, Cat5, Cat5e
Performance
- Maximum transfer distance: 20000 m
- Fiber mode structure: Single-mode
- Fiber cable diameters supported (core/cladding): 9/125 µm
Features
- Internal: No
- LED indicators: Activity, Link, Power
- Product colour: Black
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 1
- Fiber optic connector: SC
Power
- Output voltage: 5 V
- Output current: 0.6 A
- External power adapter: Yes
Weight & dimensions
- Width: 94.5 mm
- Depth: 73 mm
- Height: 27 mm
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Packaging data
- Package width: 165 mm
- Package depth: 204 mm
- Package height: 65 mm
- Package weight: 360 g
Certificates
- Compliance certificates: RoHS
- Certification: FCC, CE
Logistics data
- Harmonized System (HS) code: 85176990
