Description

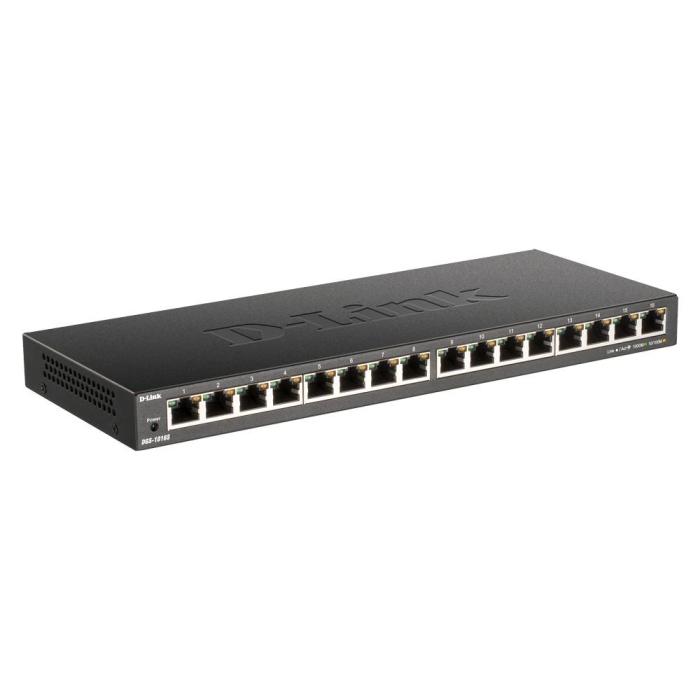

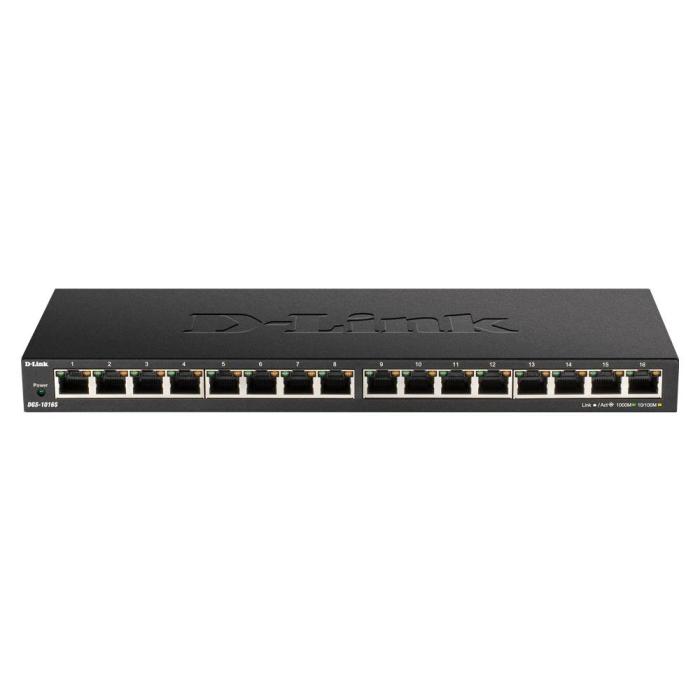

The D-Link DGS-1016S switch is an unmanaged black device featuring 16 Gigabit Ethernet (10/100/1000) RJ-45 ports, designed to expand the local network of an office or home without the need for complex configurations. It supports the IEEE 802.1p, IEEE 802.3az and IEEE 802.3x standards, and includes functions such as flow control, auto-negotiation, Auto MDI/MDI-X and cable length detection. It supports half-duplex and full duplex transmission, as well as 1000BASE-T copper cabling technology. It has an 8000-entry MAC address table and 9216-byte jumbo frames, with packet forwarding rates of 1488000 pps at 1 Gbps and 14880 pps at 10 Mbps. Its compact format measures 280 x 25 x 110 mm (width x height x depth) and weighs 770 g.
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 16
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
- Networking standards: IEEE 802.1p, IEEE 802.3az, IEEE 802.3x
- 10G support: No
- Copper ethernet cabling technology: 1000BASE-T
- Full duplex: Yes
- Half duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- Cable length detection: Yes
Data transmission
- Number of queues: 8
- Jumbo frames support: Yes
- Jumbo frames: 9216
- Packet forwarding rate (1 Gbps): 1488000 pps
- Packet forwarding rate (100 Mbps): 148800 pps
- Packet forwarding rate (10 Mbps): 14880 pps
- Packet buffer memory: 0.512 MB
- Switching capacity: 32 Gbit/s
- MAC address table: 8000 entries
- Store-and-forward: Yes
Design
- Product colour: Black
- LED indicators: Activity, Link, Power, Speed
Performance
- Fanless: Yes
- Mean time between failures (MTBF): 564658 h
Power
- DC input voltage: 12 V
- Input current: 1 A
- Power consumption (max): 8.89 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 95%
- Heat dissipation: 30.32 BTU/h
Weight & dimensions
- Width: 280 mm
- Depth: 110 mm
- Height: 25 mm
- Weight: 770 g
Certificates
- Certification: CE, FCC, ICES 003, RCM
