Description

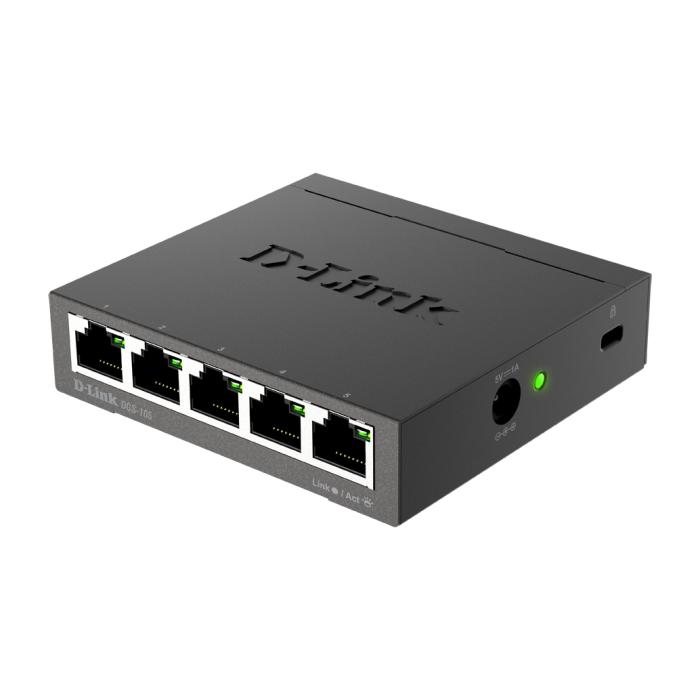

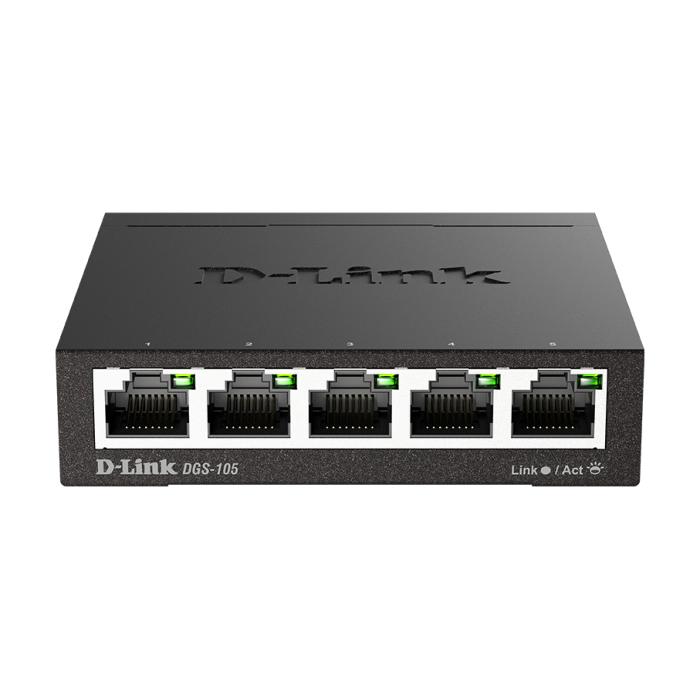

Connect multiple devices via cable with the D-Link DGS-105 switch, an unmanaged L2 layer model in black with five Gigabit Ethernet (10/100/1000) RJ-45 ports. Thanks to its 10 Gbit/s switching and maximum transfer rate of 1 Gbit/s, it allows data to be moved between devices at speeds of 10/100/1000 Mbps. It includes QoS support, flow control and full duplex, as well as auto MDI/MDI-X for 1000BASE-T, 100BASE-TX and 10BASE-T copper cabling. Its MAC address table supports 2000 entries and the packet buffer memory is 0.128 MB. It complies with the IEEE 802.1p, 802.3, 802.3ab, 802.3az, 802.3u and 802.3x standards, and allows store-and-forward packet forwarding with Jumbo Frames support. It is powered via a DC input jack. It has dimensions of 100 x 28 x 98 mm (width x height x depth) and a weight of 267 g, ideal for placing next to the router or on the desktop.
Specifications
Management features
- Switch type: Unmanaged
- Switch layer: L2
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

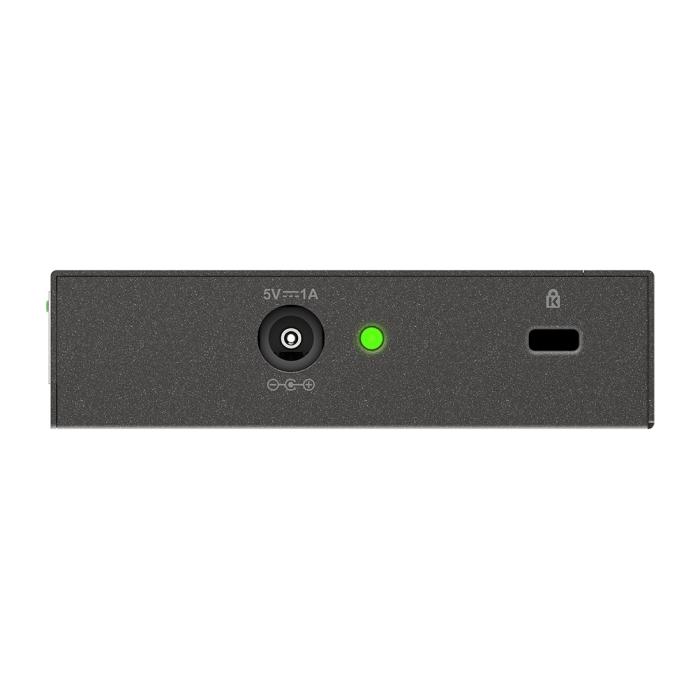

- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
- Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
- Full duplex: Yes
- Flow control support: Yes
- Auto MDI/MDI-X: Yes
Data transmission
- Supported data transfer rates: 10/100/1000 Mbps
- Switching capacity: 10 Gbit/s
- MAC address table: 2000 entries
- Store-and-forward: Yes
- Maximum data transfer rate: 1 Gbit/s
- Jumbo frames support: Yes
- Packet buffer memory: 0.128 MB
Security
- MAC address filtering: Yes
Design
- Rack mounting: No
- Product colour: Black
- Housing material: Metal
Performance
- Mean time between failures (MTBF): 1688338 h
Power
- Input current: 1 A
- Input voltage: 5 V
- Power consumption (typical): 2.1 W
Other features
- Data transfer rate: 2000 Mbit/s
- Dimensions (WxDxH): 100 x 98 x 28 mm
- Connectivity technology: Wired
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -10 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 100 mm
- Depth: 98 mm
- Height: 28 mm
- Weight: 267 g
Packaging data
- Package width: 170 mm
- Package depth: 220 mm
- Package height: 62 mm
- Package weight: 450 g
Technical details
- Shipping (inner) case height: 36.6 cm
- Shipping (inner) case width: 23 cm
- Shipping (inner) case length: 33.5 cm
- Shipping (inner) case net weight: 5 kg
- Products per shipping (inner) case: 10 pc(s)
- Pallet gross weight (air): 439.8 kg
- Master (outer) cases per pallet (air): 75 pc(s)
- Products per pallet (air): 750 pc(s)
- Pallet gross length: 120 cm
- Pallet gross width: 110 cm
- Pallet height (air): 2.04 m
- Pallet gross weight (sea): 439.8 kg
- Master (outer) cases per pallet (sea): 75 pc(s)
- Products per pallet (sea): 750 pc(s)
- Pallet height (sea): 2.04 m
- Shipping (inner) case gross weight: 5.53 kg
Certificates
- Certification: FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS
Logistics data
- Harmonized System (HS) code: 85176990
