Description

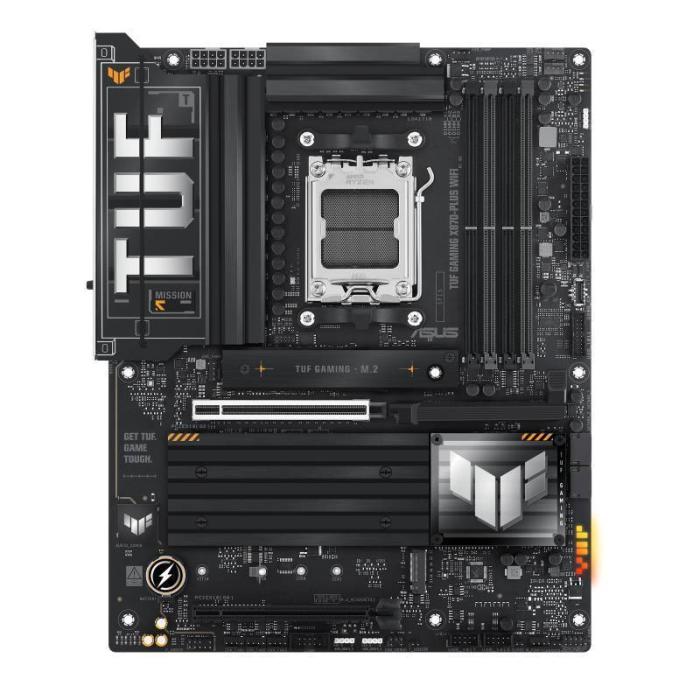

The ASUS TUF Gaming X870-PLUS WIFI motherboard, in black, is designed for builds with an AMD processor on socket AM5. It supports AMD Ryzen processors from the 7000, 8000 and 9000 series, so you can pair it with different generations from the manufacturer. It has four DIMM slots for DDR5-SDRAM memory, with dual-channel support and a maximum supported clock speed of 8000 MHz. The maximum internal memory is 192 GB and the board is compatible with both ECC and non-ECC modules, as well as working with unbuffered memory. For storage, it includes two supported HDDs and up to six drives compatible between HDD and SSD, with M.2 and SATA III interfaces. RAID compatibility covers levels 0, 1, 5 and 10. It is a base designed for desktop computers with ATX form factor and integrated WiFi connectivity.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speed (max): 8000 MHz
- Maximum internal memory: 192 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 2
- Number of storage drives supported: 6
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Graphics
- Parallel processing technology support: Not supported
- On-board graphics card: No
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2x2 connectors: 1
- Number of SATA III connectors: 2
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 4
- EPS power connector (8-pin): Yes
- Number of COM connectors: 1
- 12V power connector: Yes

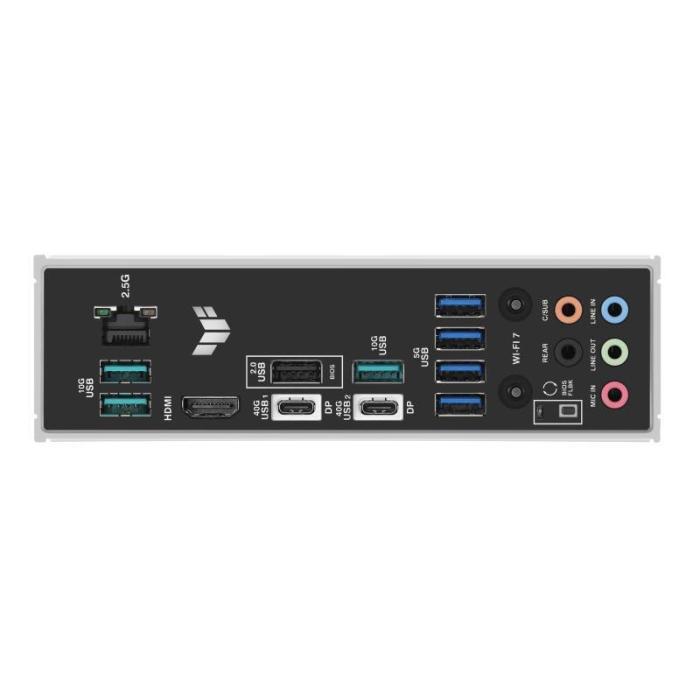

Rear panel I/O ports
- USB 2.0 ports quantity: 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
- USB4 Gen 3x2 ports quantity: 2
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- Microphone in: Yes
- USB connector type: USB Type-A, USB Type-C
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards: Wi-Fi 7 (802.11be)
- Bluetooth: Yes
- Bluetooth version: 5.4
Features
- Motherboard chipset family: AMD
- Windows operating systems supported: Windows 11
- Motherboard chipset: AMD X870
- Audio chip: Realtek ALC1220P
- Audio output channels: 7.1 channels
- Product colour: Black
- Component for: PC
- Motherboard form factor: ATX
Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 4
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
Weight & dimensions
- Width: 305 mm
- Depth: 244 mm
