Description

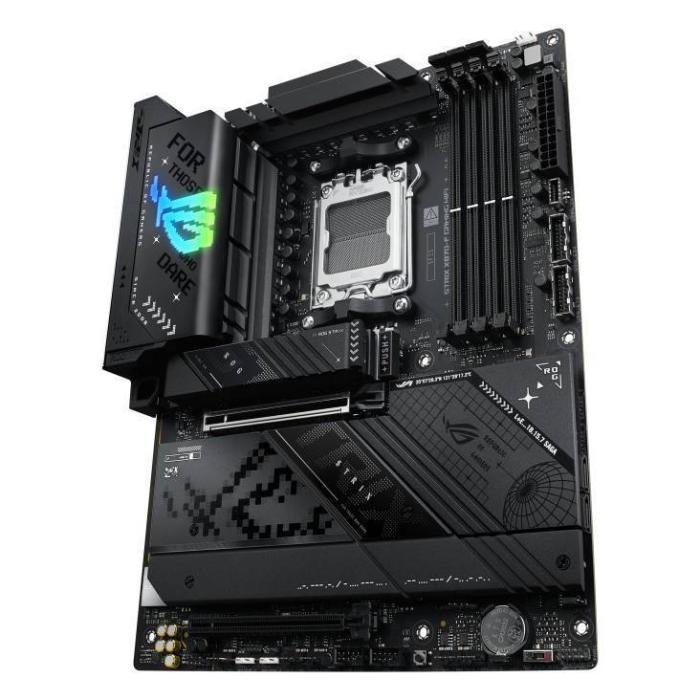

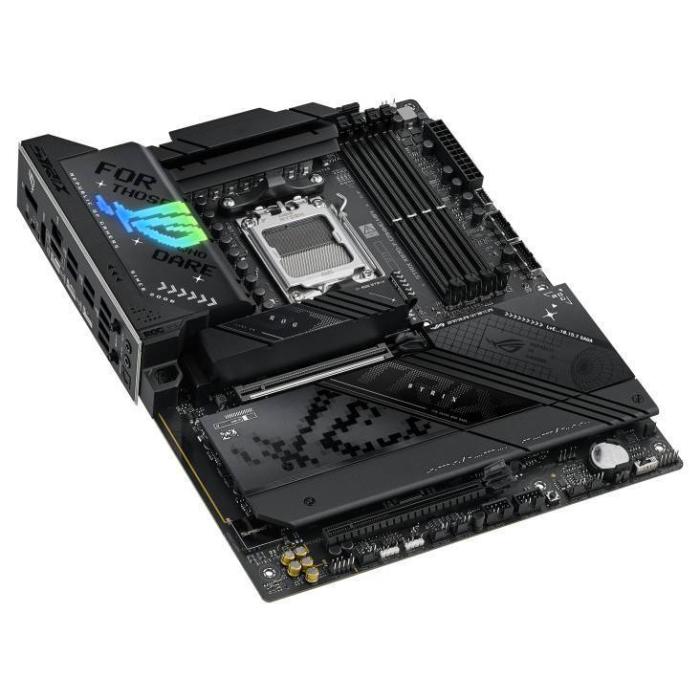

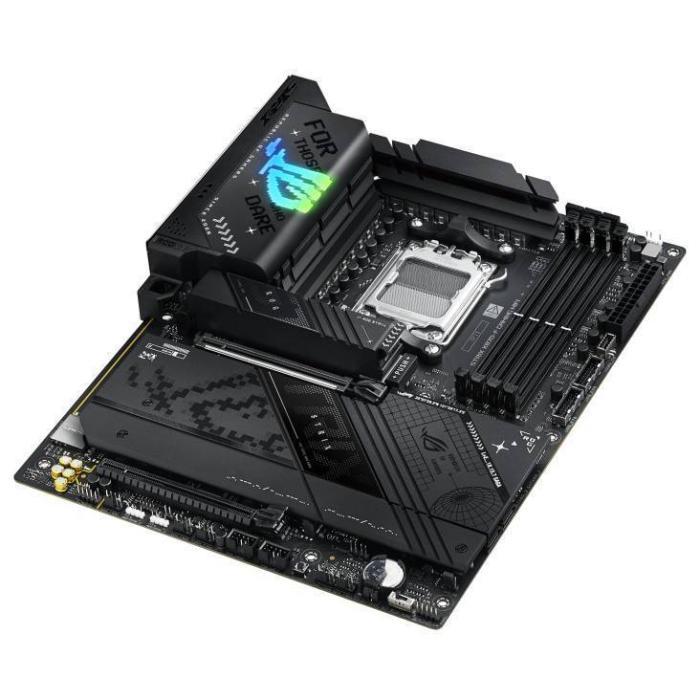

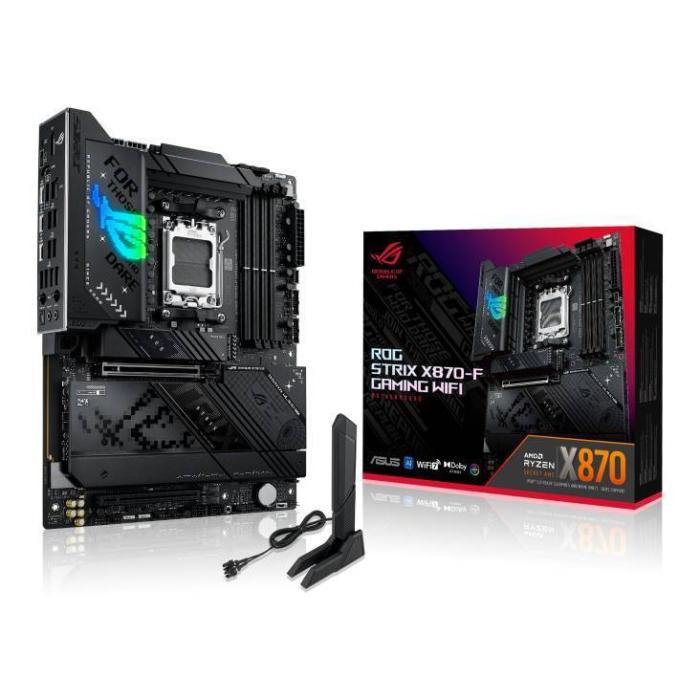

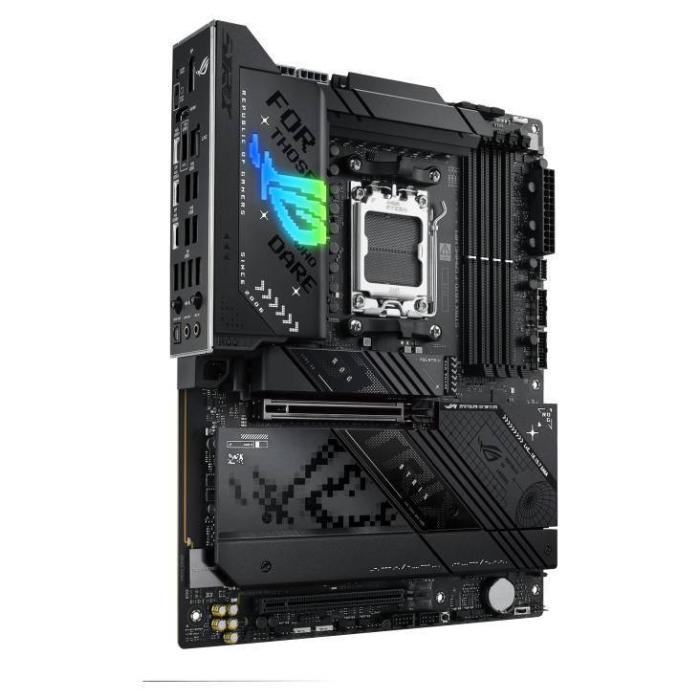

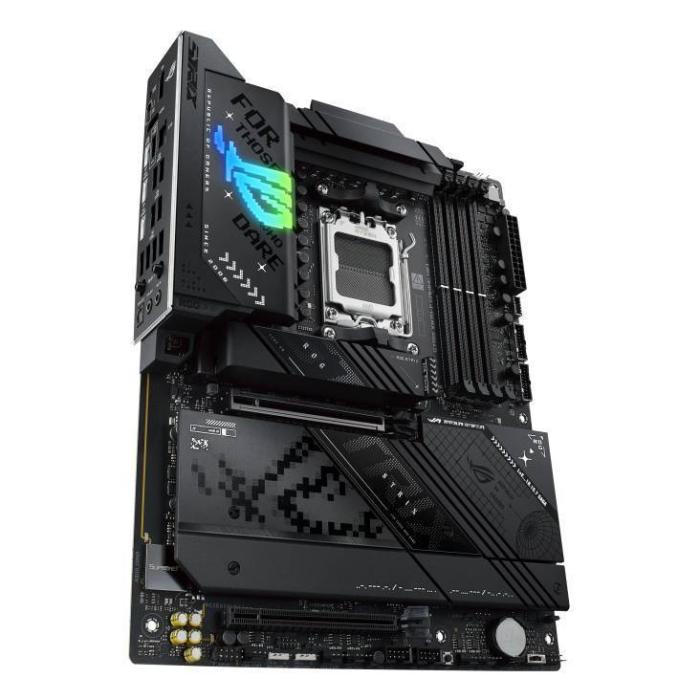

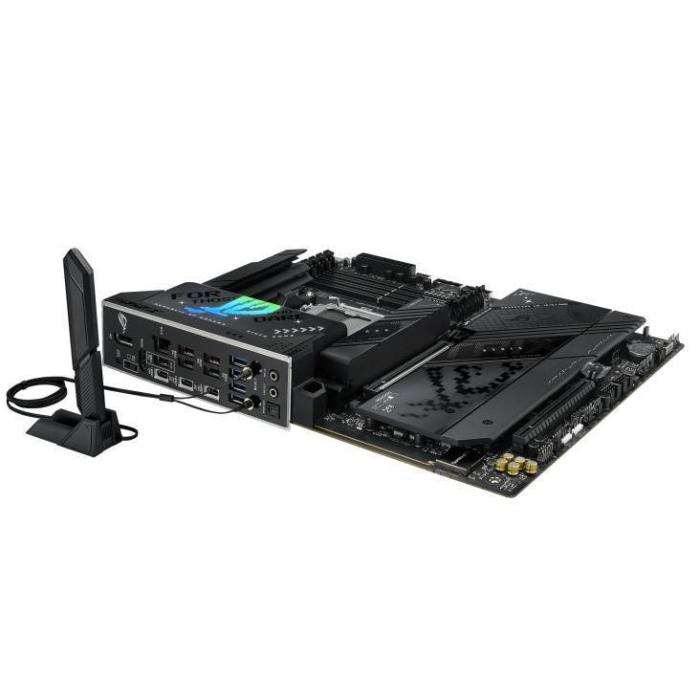

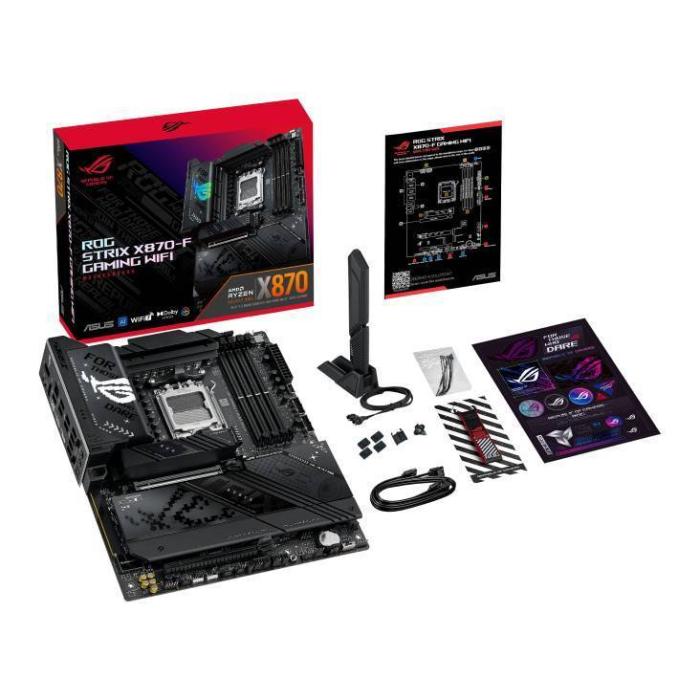

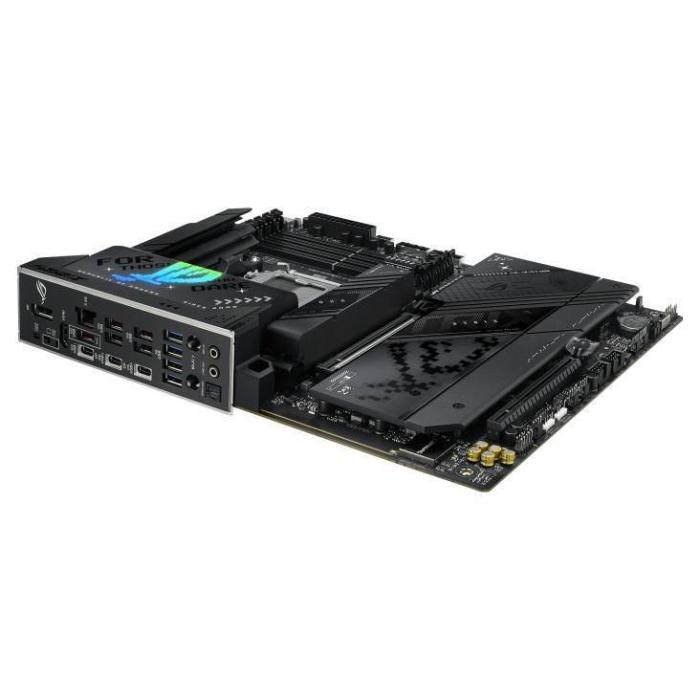

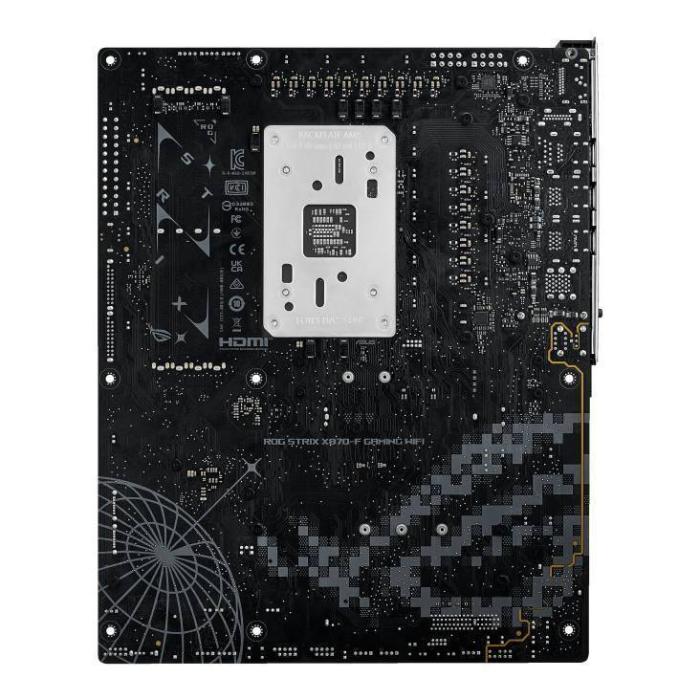

The ASUS ROG STRIX X870-F GAMING WIFI motherboard, in black, is designed to support AMD Ryzen 7000, 8000 and 9000 series processors on the AM5 socket. It features four DIMM slots for DDR5-SDRAM memory, with dual-channel support and a maximum supported clock speed of 8000 MHz. Maximum internal memory reaches 192 GB, and it supports buffered and unbuffered modules, with compatibility for ECC and non-ECC memory. In terms of storage, it offers connections for a total of six drives between HDD and SSD, with M.2 and SATA III interfaces. It also includes RAID support at levels 0, 1, 5 and 10, and allows up to two HDDs to be installed.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speed (max): 8000 MHz
- Maximum internal memory: 192 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 2
- Number of storage drives supported: 6
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Graphics
- Parallel processing technology support: Not supported
- On-board graphics card: No
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- USB 3.2 Gen 2x2 connectors: 1
- Number of SATA III connectors: 2
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 5
- Chassis intrusion connector: Yes
- EPS power connector (8-pin): Yes

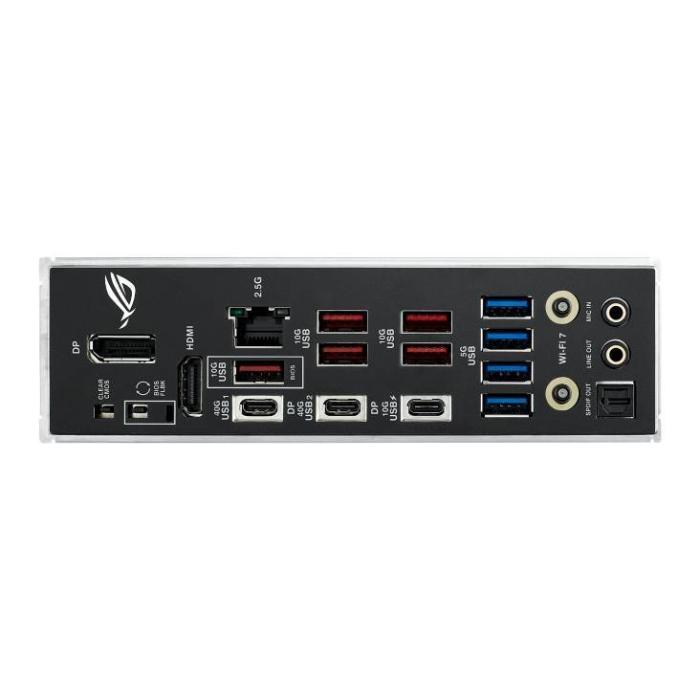

Rear panel I/O ports
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- USB4 Gen 3x2 ports quantity: 2
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- Microphone in: Yes
- S/PDIF out port: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards: Wi-Fi 7 (802.11be)
- Bluetooth: Yes
- Bluetooth version: 5.4
Features
- Motherboard chipset: AMD X870
- Audio output channels: 7.1 channels
- Product colour: Black
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: AMD
- Windows operating systems supported: Windows 11
Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 4
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- Clear CMOS button: Yes
Weight & dimensions
- Width: 305 mm
- Depth: 244 mm
