Description

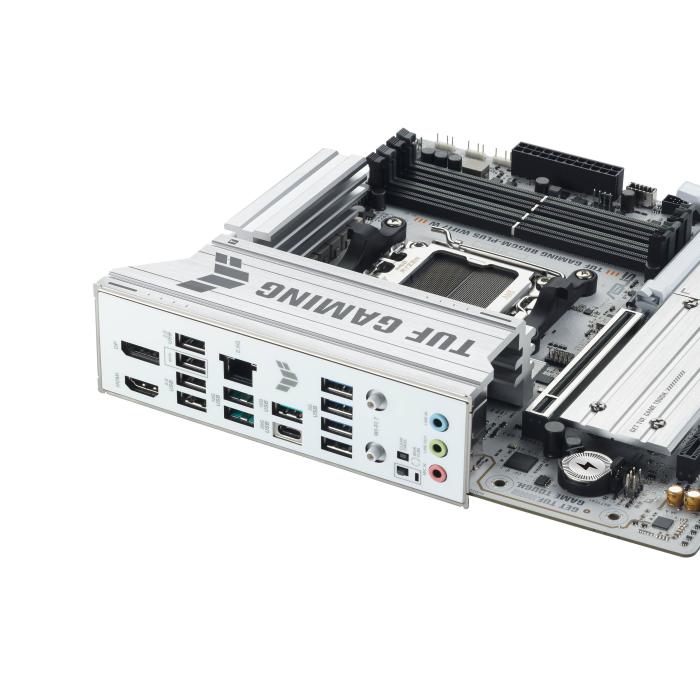

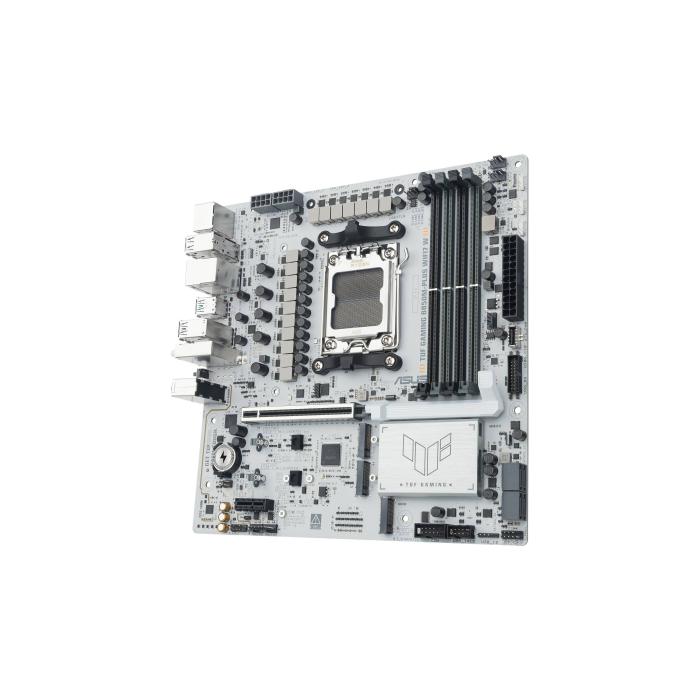

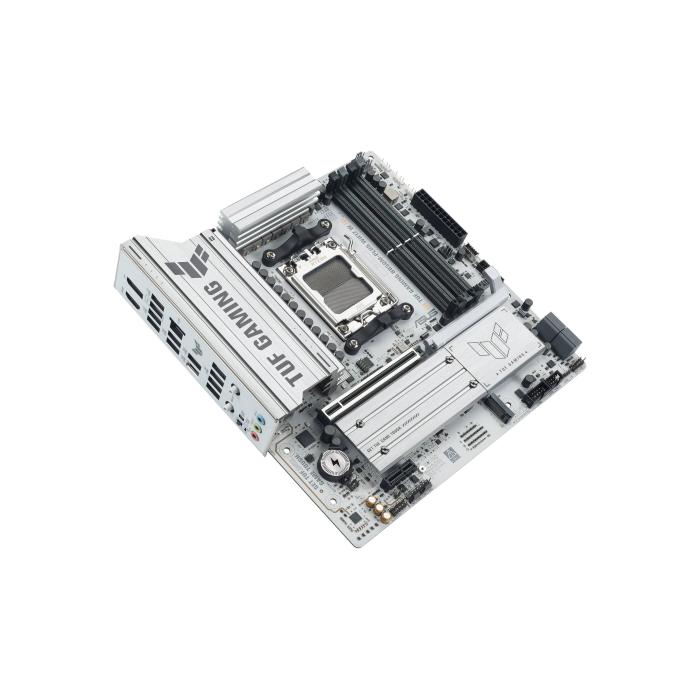

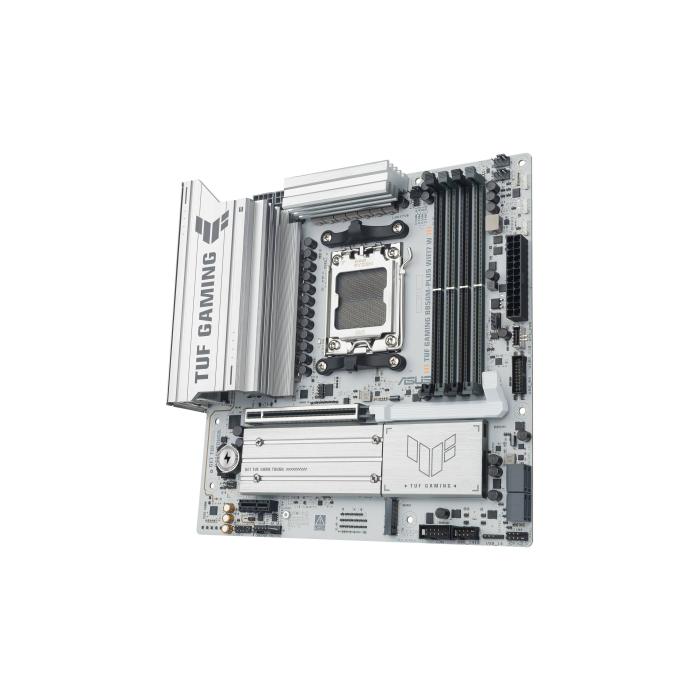

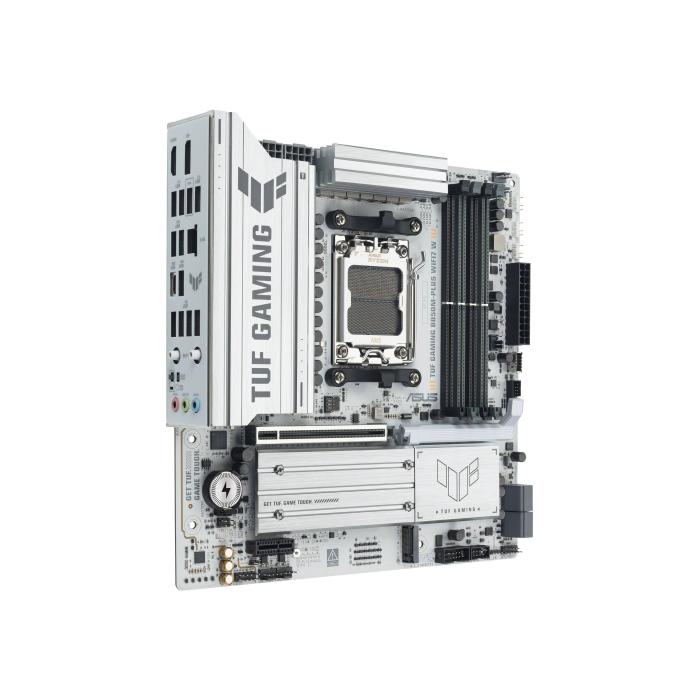

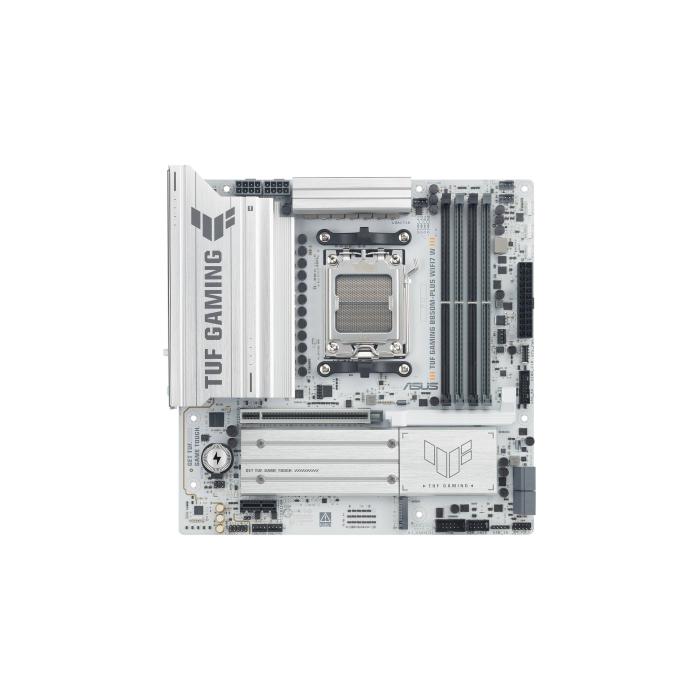

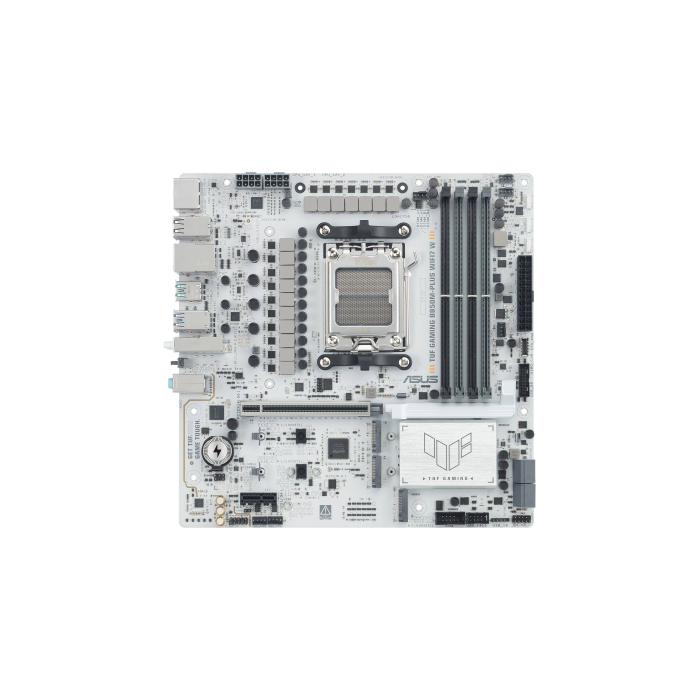

The ASUS TUF GAMING B850M-PLUS WIFI7 W motherboard comes in white and is designed for builds with AMD processors. It features the AM5 socket, compatible with the AMD Ryzen 7000, 8000 and 9000 series, so you can install either a recent generation or previous ones without changing platform. It has four DDR5-SDRAM DIMM slots that run in dual channel and support unbuffered memory, with support for both ECC and non-ECC modules, and a maximum capacity of 256 GB. As for storage, it supports up to seven drives between HDDs and SSDs with M.2 and SATA III interfaces, and allows RAID arrays to be configured at levels 0, 1, 5 and 10. Its micro ATX form factor fits in compact cases without giving up memory slots or drive options. It is a solid foundation for anyone looking for an AM5 motherboard with room for expansion and control over drive configuration.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets: Socket AM5
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Maximum internal memory: 256 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 7
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Graphics
- Parallel processing technology support: Not supported
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 3
- Chassis intrusion connector: Yes
- EPS power connector (8-pin): Yes
- Number of COM connectors: 1
- 12V power connector: Yes
- RGB LED pin header: Yes
- Number of RGB LED pin headers: 3

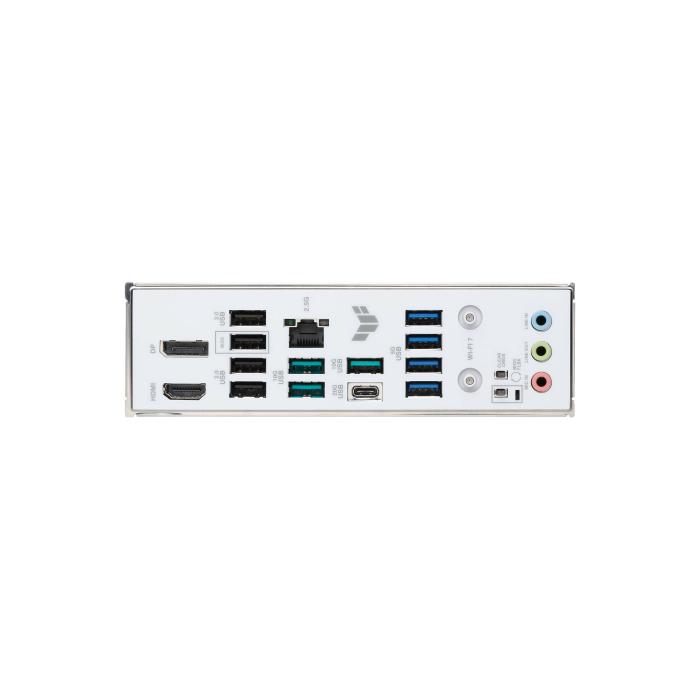

Rear panel I/O ports
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
- USB 3.2 Gen 2x2 Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- WiFi-AP antenna jack: 1
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards: Wi-Fi 7 (802.11be)
- WLAN controller model: MediaTek MT7925
- Bluetooth: Yes
- Bluetooth version: 5.4
Features
- Motherboard chipset: AMD B850
- Audio chip: Realtek ALC1220P
- Audio output channels: 7.1 channels
- Product colour: White
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- Windows operating systems supported: Windows 11
Expansion slots
- PCI Express x1 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 3
- 1st M.2 largest key size: 2280
- 1st M.2 highest PCI Express generation: 5.0
- 2nd M.2 largest key size: 2280
- 2nd M.2 highest PCI Express generation: 4.0
- 3rd M.2 largest key size: 2280
- 3rd M.2 highest PCI Express generation: 4.0
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
Packaging data
- Package width: 275 mm
- Package depth: 275 mm
- Package height: 67.5 mm
- Package weight: 1.65 kg
Weight & dimensions
- Width: 244 mm
- Depth: 244 mm
Packaging content
- Cables included: SATA

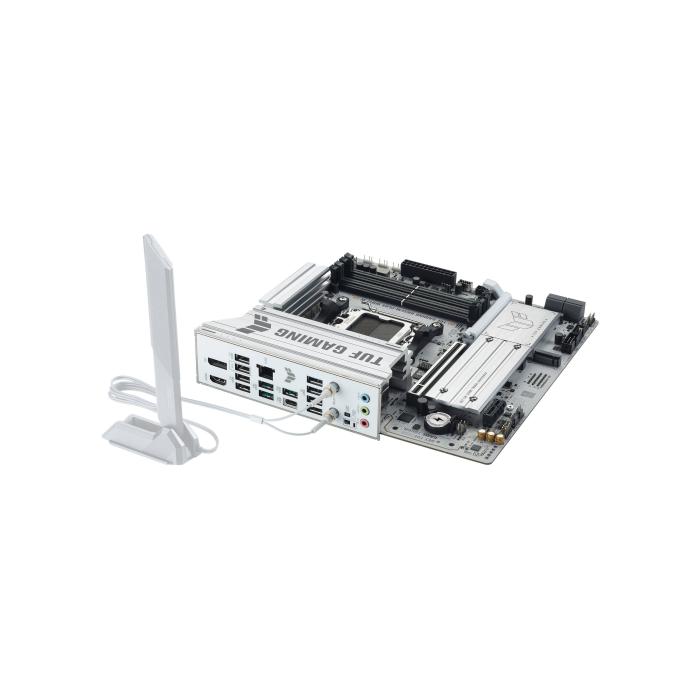

- Antenna included: Yes
- Screws included: Yes
