Description

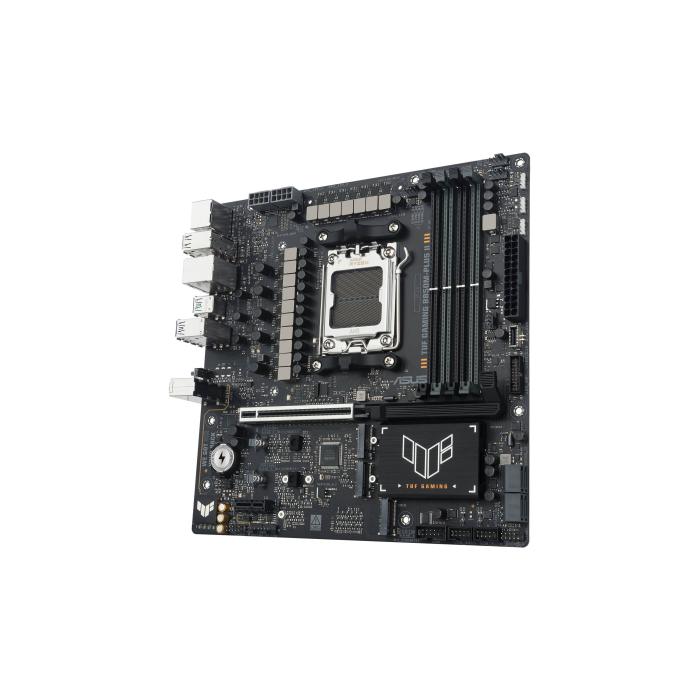

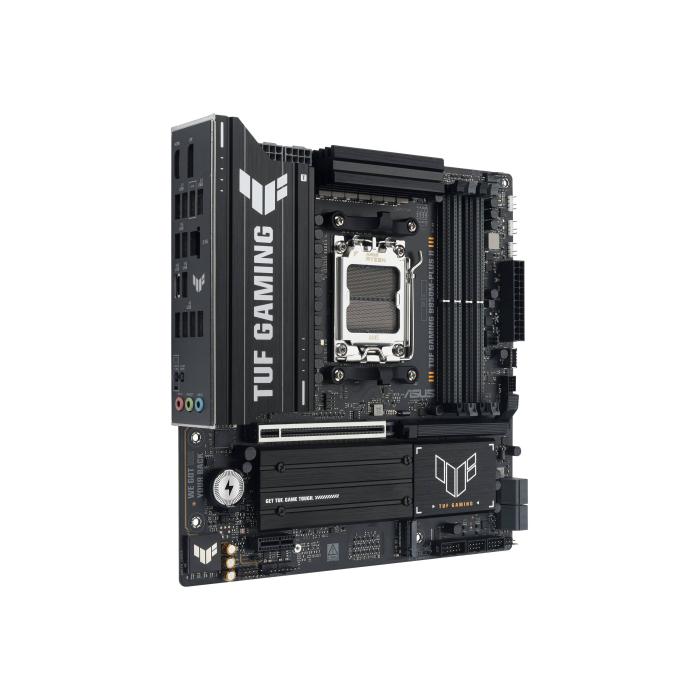

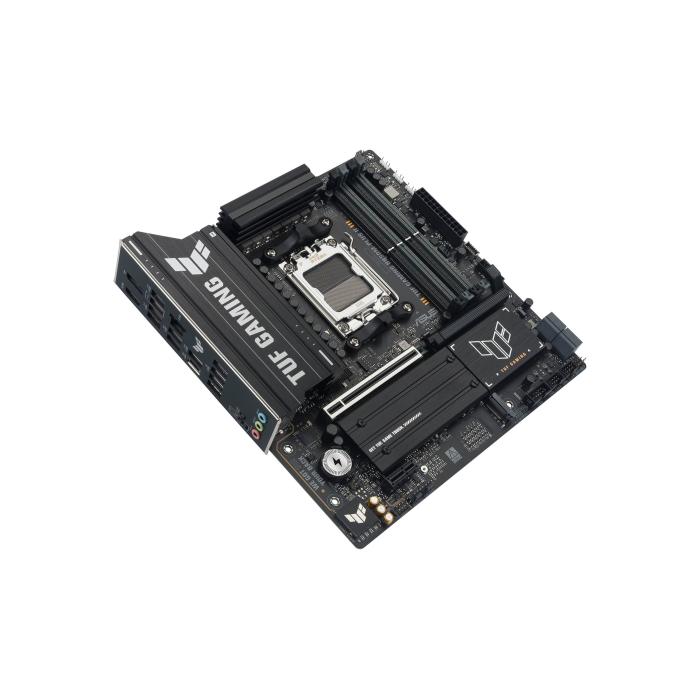

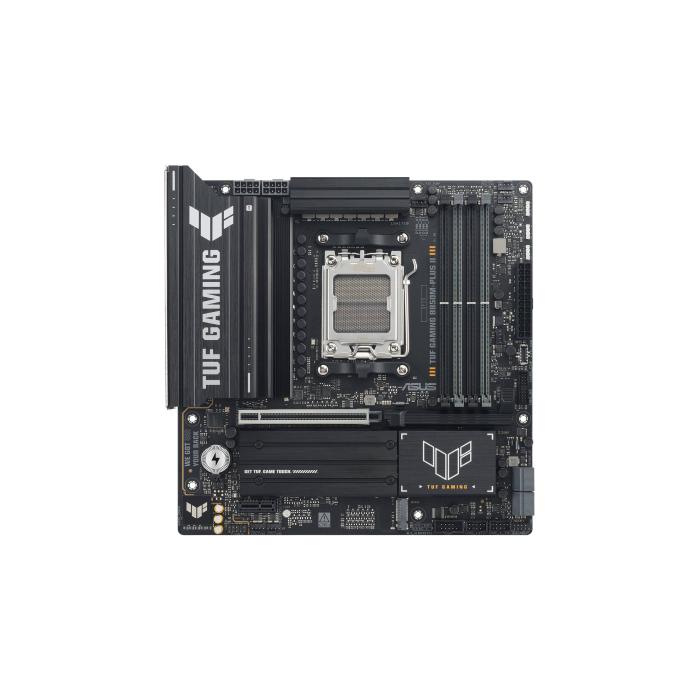

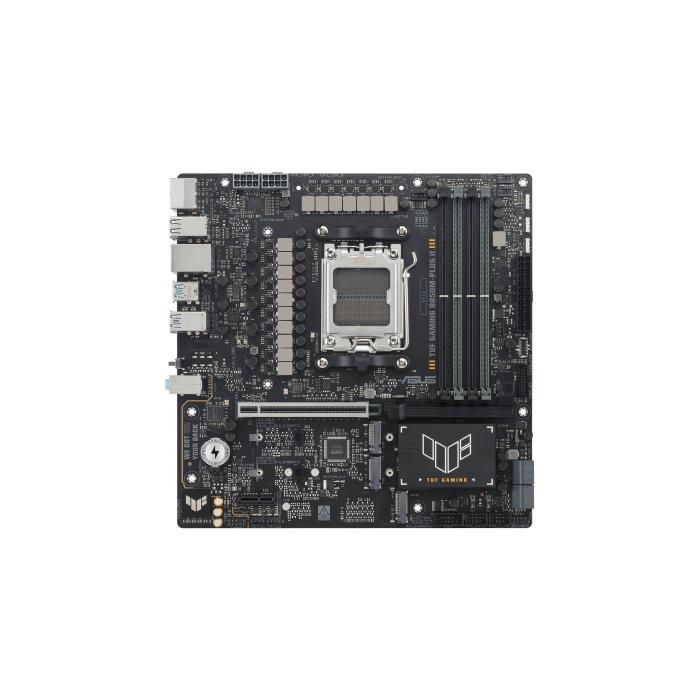

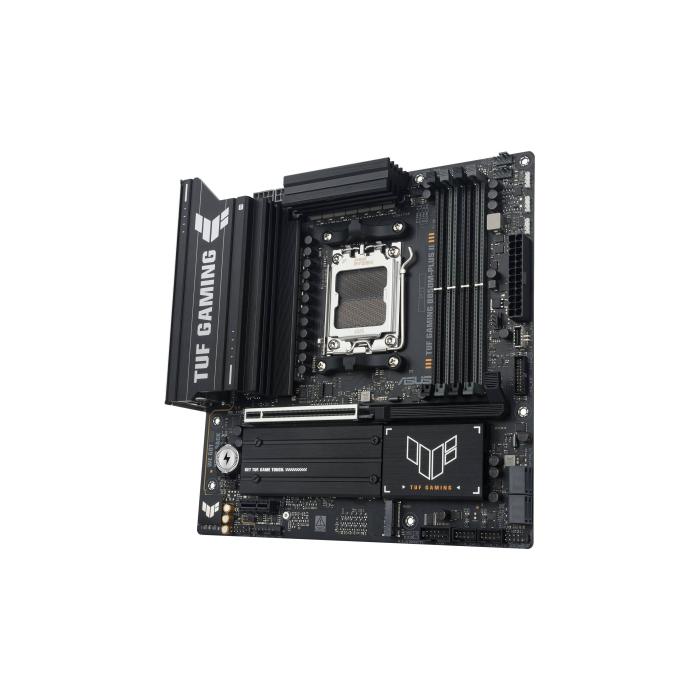

The ASUS TUF GAMING B850M-PLUS II is a micro ATX motherboard with an AM5 socket, compatible with AMD Ryzen 7000, 8000 and 9000 series processors. It features four DIMM slots for DDR5-SDRAM memory, supports up to 256 GB and operates in dual channel, with support for both ECC and non-ECC modules and unbuffered memory. For storage it has M.2 and SATA III interfaces, supports HDD and SSD, allows connecting up to seven drives and four HDDs, and offers RAID compatibility at levels 0, 1, 5 and 10. With this set of features you can build a balanced micro ATX system.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets: Socket AM5
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Maximum internal memory: 256 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 7
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Graphics
- Parallel processing technology support: Not supported
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 3
- Chassis intrusion connector: Yes
- EPS power connector (8-pin): Yes
- Number of COM connectors: 1
- 12V power connector: Yes
- RGB LED pin header: Yes
- Number of RGB LED pin headers: 3

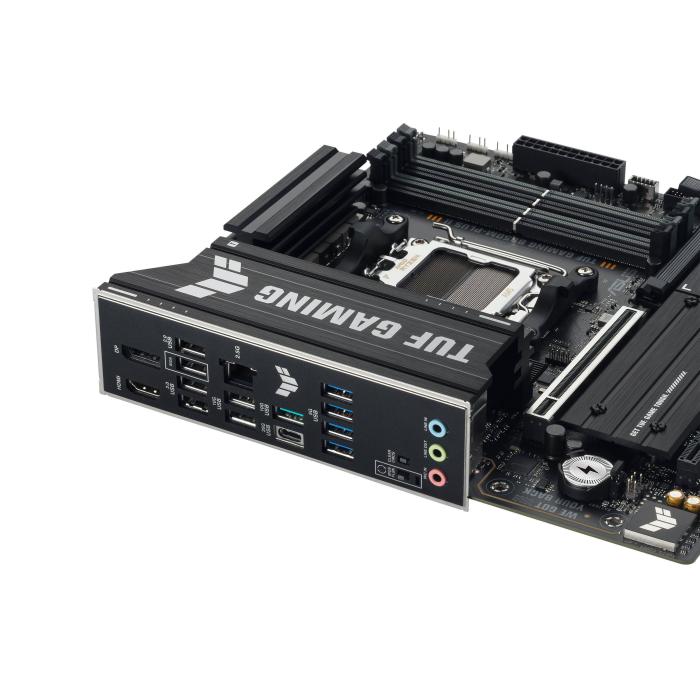

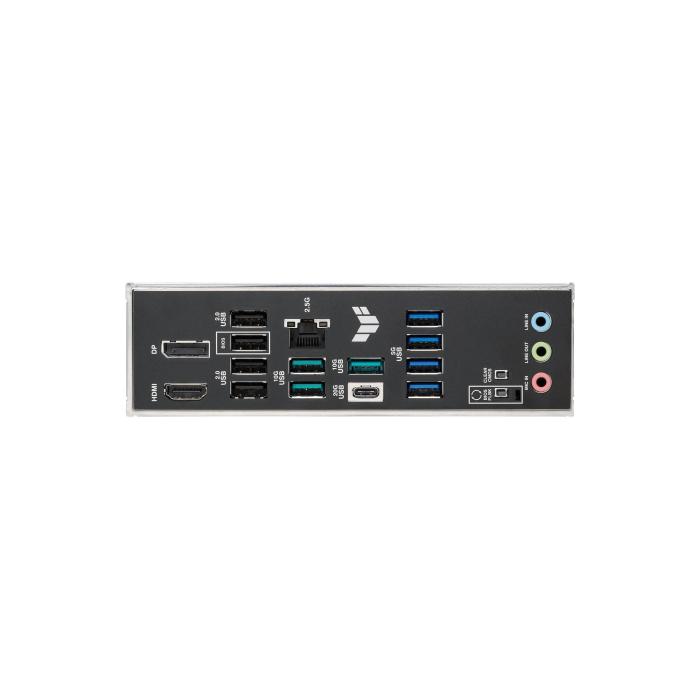

Rear panel I/O ports
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
- USB 3.2 Gen 2x2 Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: No
Features
- Motherboard chipset: AMD B850
- Audio chip: Realtek ALC1220P
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- Windows operating systems supported: Windows 10 x64, Windows 11
Expansion slots
- PCI Express x1 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 3
- 1st M.2 largest key size: 2280
- 1st M.2 highest PCI Express generation: 5.0
- 2nd M.2 largest key size: 2280
- 2nd M.2 highest PCI Express generation: 4.0
- 3rd M.2 largest key size: 2280
- 3rd M.2 highest PCI Express generation: 4.0
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
Packaging data
- Package width: 275 mm
- Package depth: 275 mm
- Package height: 67.5 mm
- Package weight: 1.65 kg
Weight & dimensions
- Width: 244 mm
- Depth: 244 mm
Packaging content
- Cables included: SATA
- Screws included: Yes
