Description

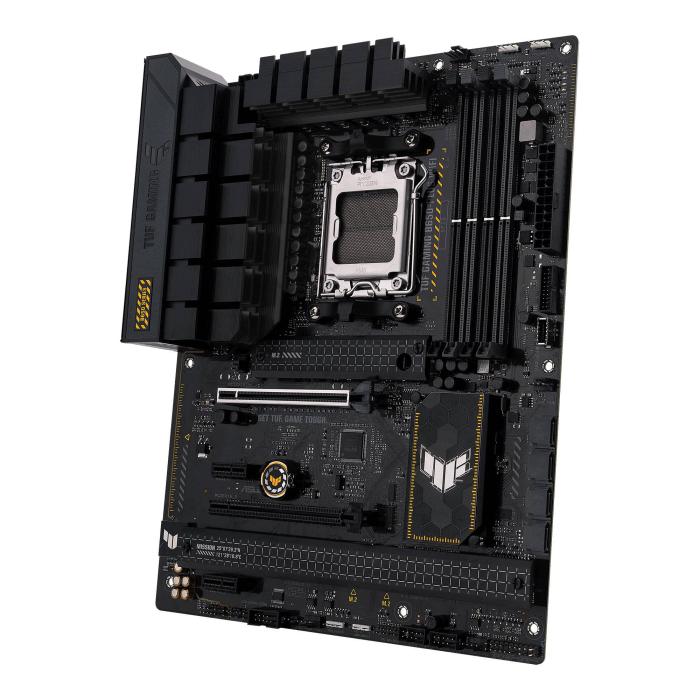

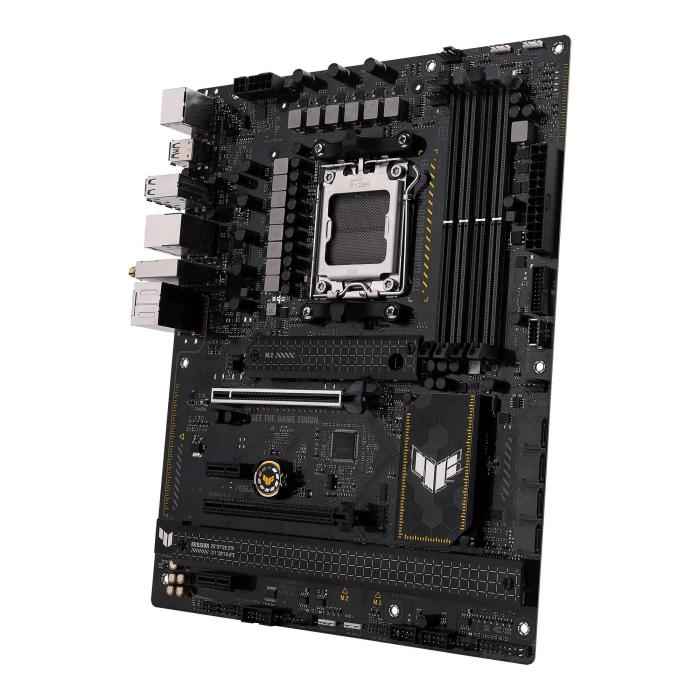

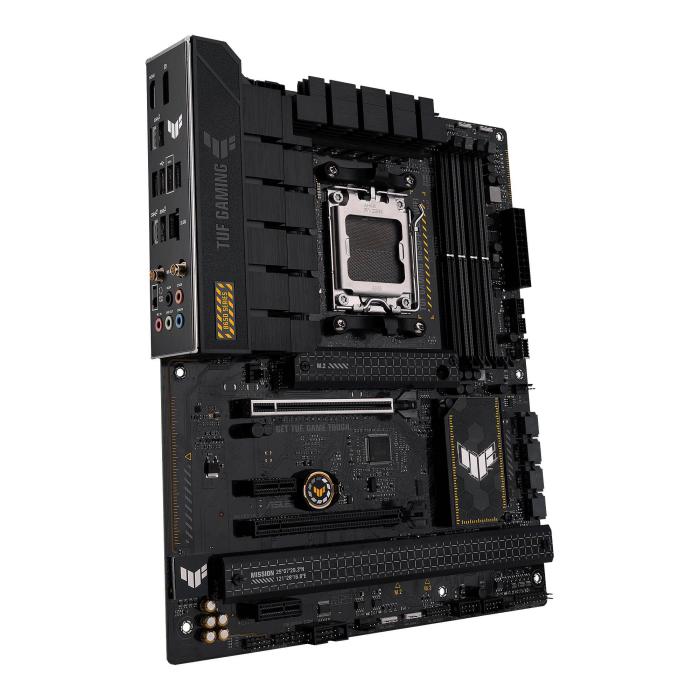

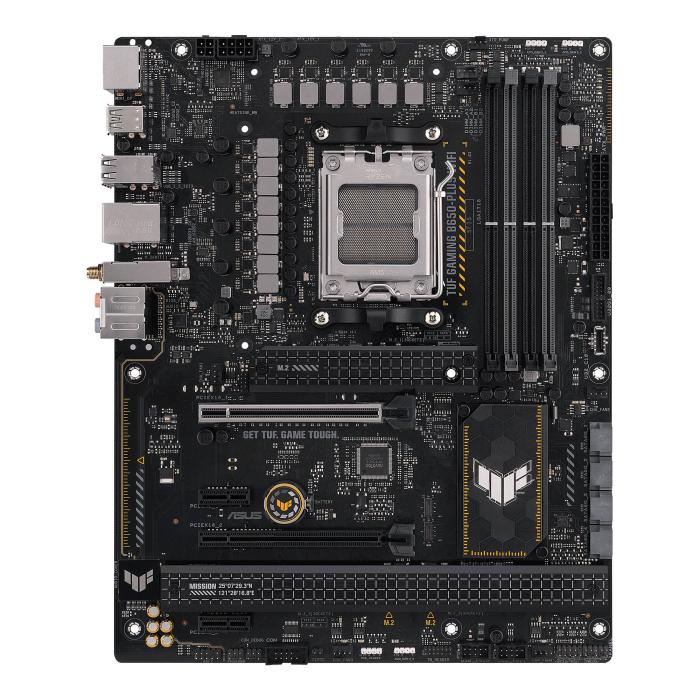

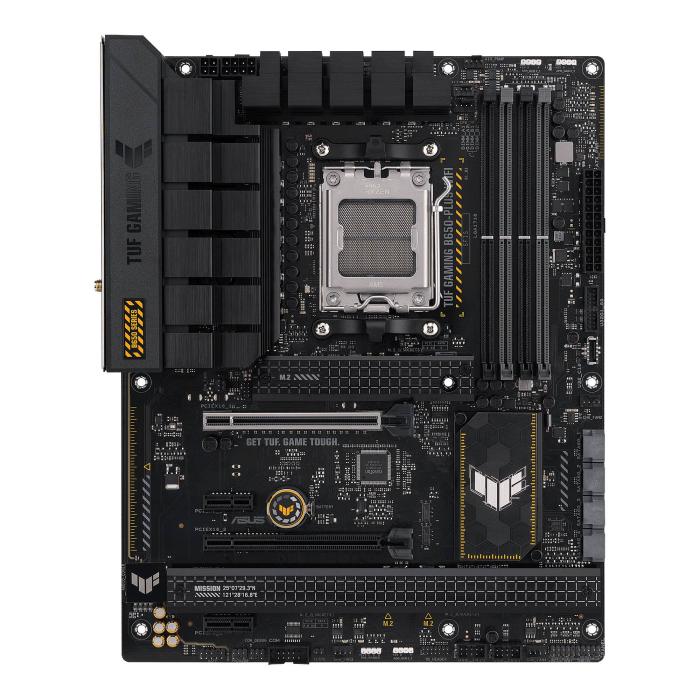

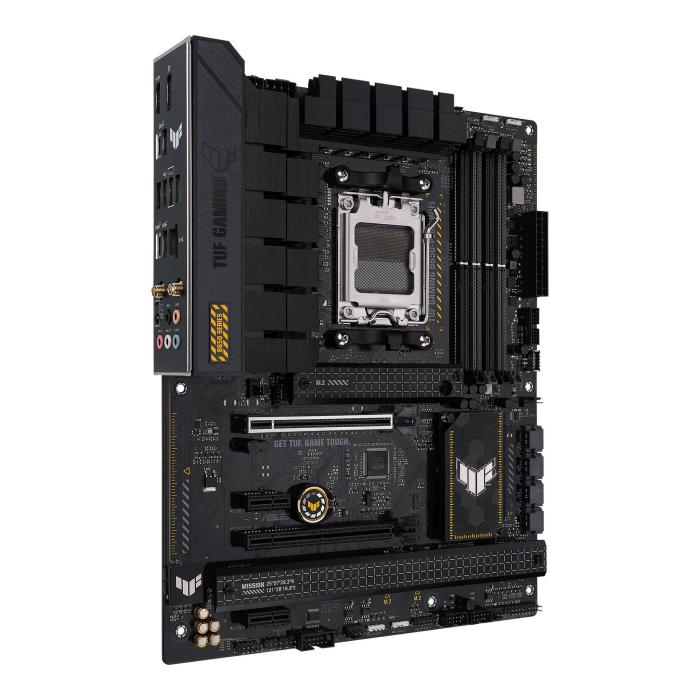

The ASUS TUF GAMING B650-PLUS WIFI motherboard comes in black and with dimensions of 305 x 50 x 244 mm (width x height x depth), all in an ATX form factor with a weight of 1.2 kg. It features the AM5 socket, so it supports AMD Ryzen 7000 Series processors. In terms of memory, it has four DIMM slots that operate in dual channel and support DDR5-SDRAM memory, with speeds starting at 4800 and scaling up to more than 5800, plus compatibility with ECC and non-ECC modules. The maximum internal memory capacity reaches 128 GB and it supports unbuffered memory. For storage, it offers compatibility with seven drives between HDD and SSD, with M.2 and SATA III interfaces and support for RAID at levels 0, 1 and 10. It is a solid base for building a desktop PC with latest-generation AMD processors.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Compatible processor series: AMD Ryzen 7000 Series
- Supported processor sockets: Socket AM5
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7600 MHz
- Maximum internal memory: 128 GB
- Unbuffered memory: Yes
Storage controllers
- Number of storage drives supported: 7
- RAID support: Yes
- RAID levels: 0, 1, 10
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
Graphics
- Parallel processing technology support: Not supported
- On-board graphics card: No
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 4
- EPS power connector (8-pin): Yes
- Number of COM connectors: 1
- Thunderbolt headers: 1
- RGB LED pin header: Yes

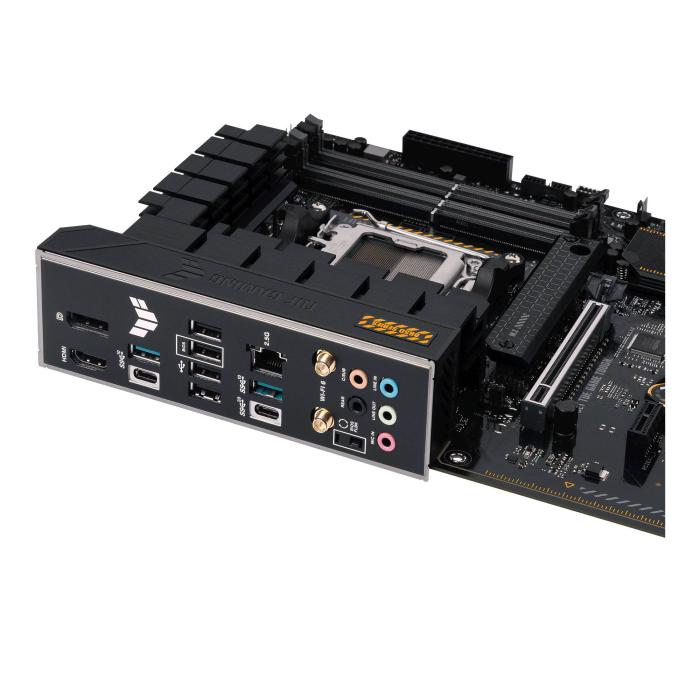

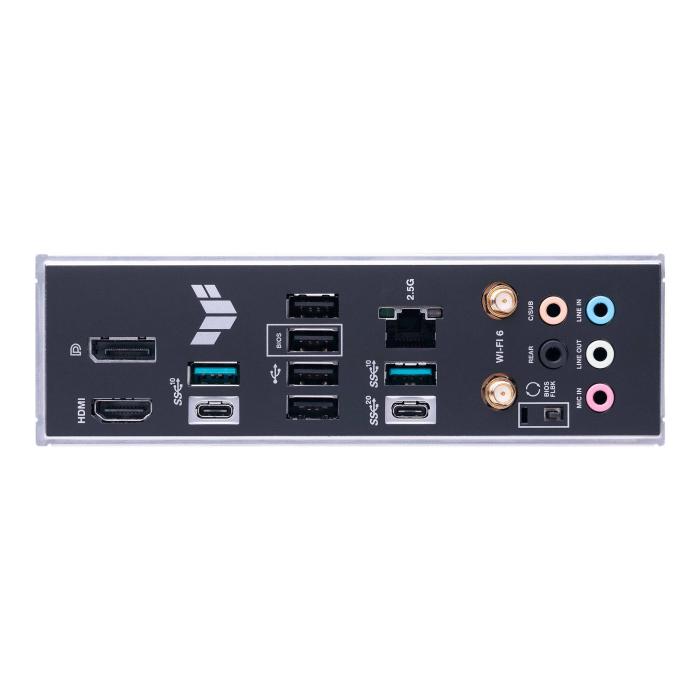

Rear panel I/O ports
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- USB 3.2 Gen 2x2 Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- Headphone outputs: 1
- Line-in: Yes
- Microphone in: Yes
- S/PDIF out port: No
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet

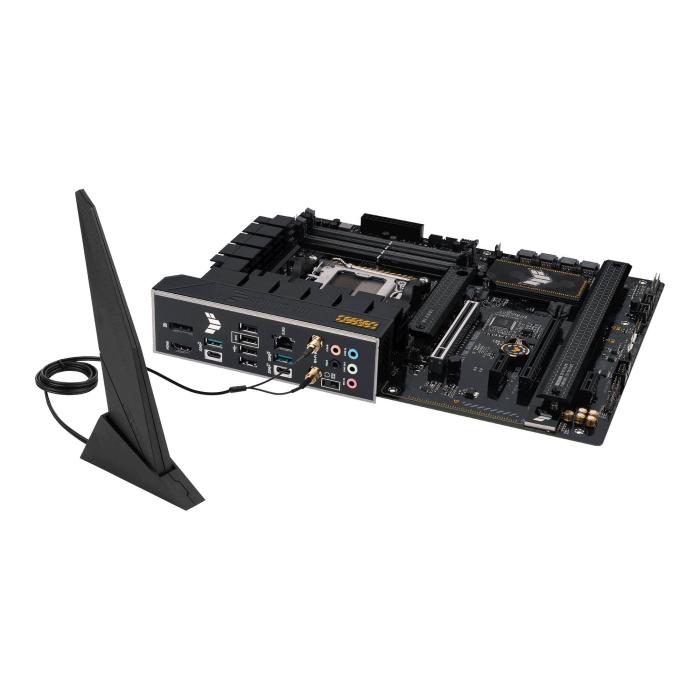

- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- Bluetooth: Yes
- Bluetooth version: 5.2
Features
- Motherboard chipset: AMD B650
- Audio output channels: 7.1 channels
- Product colour: Black
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: AMD
Expansion slots
- PCI Express x1 (Gen 4.x) slots: 2
- PCI Express x16 (Gen 4.x) slots: 2
- Number of M.2 (M) slots: 3
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
Packaging data
- Package width: 338 mm
- Package depth: 273 mm
- Package height: 68 mm
- Package weight: 1.36 kg
Weight & dimensions
- Width: 305 mm
- Depth: 244 mm
- Height: 50 mm
Other features
- Weight: 1.2 kg
