Description

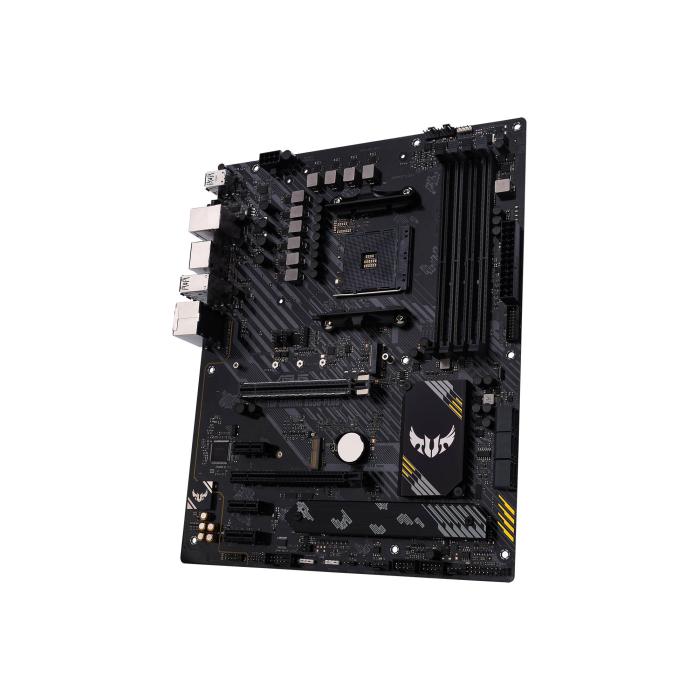

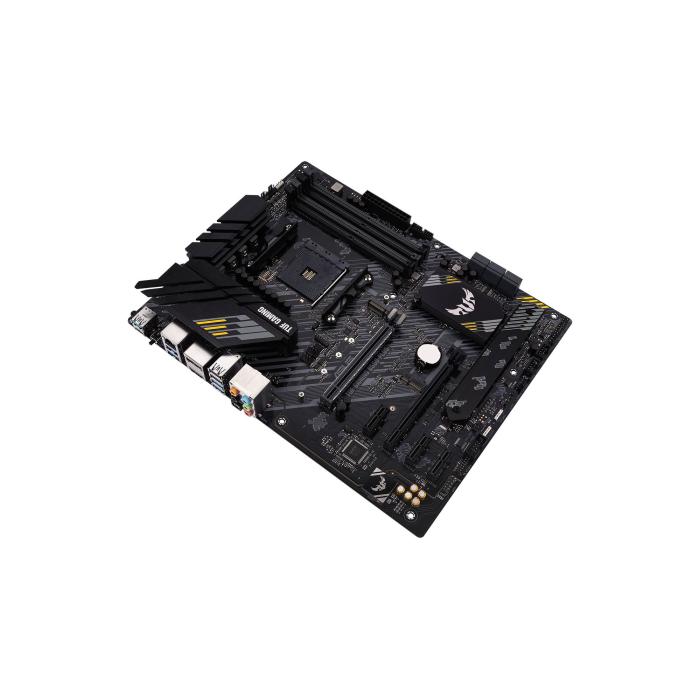

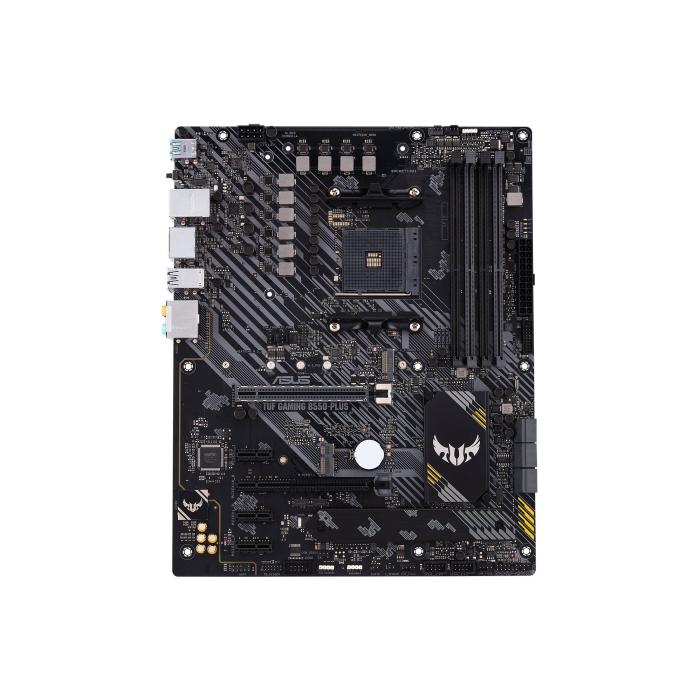

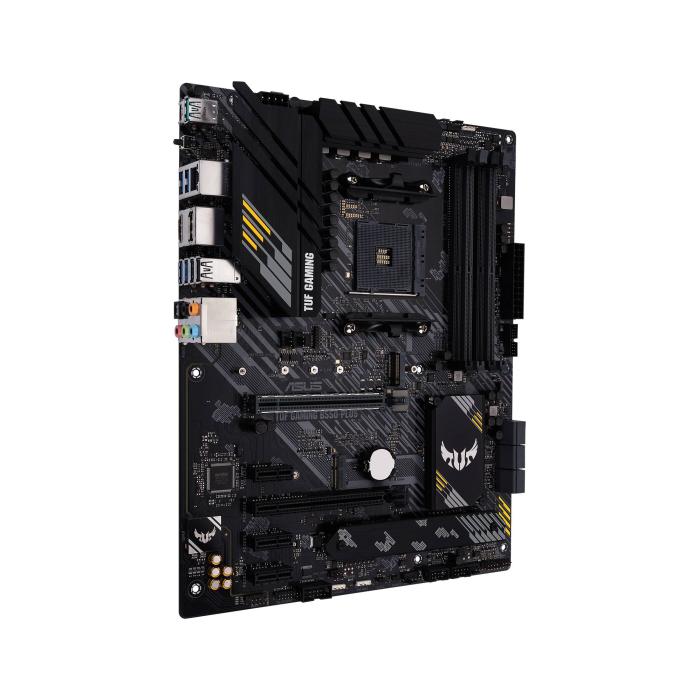

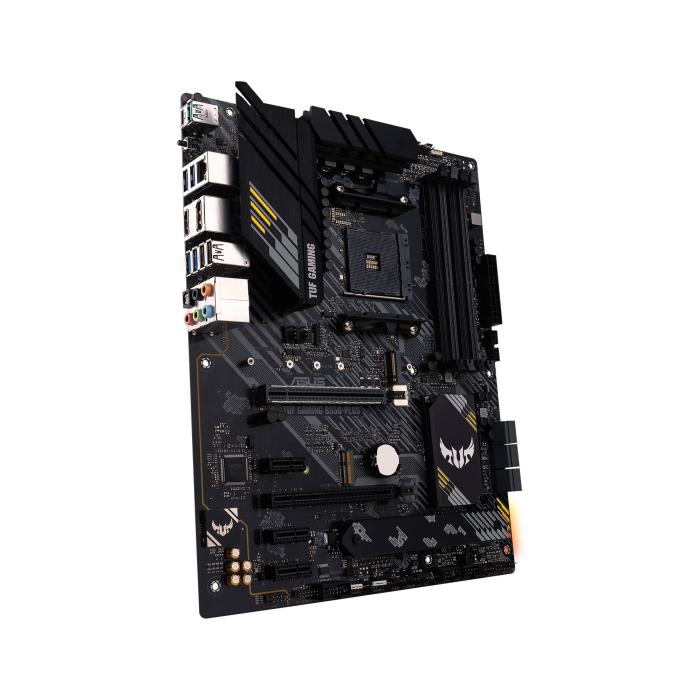

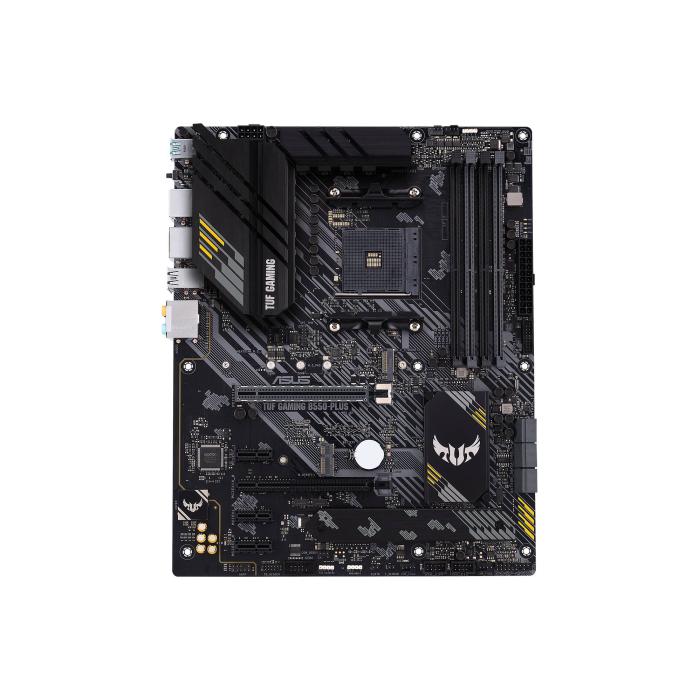

The ASUS TUF GAMING B550-PLUS WIFI II motherboard is a black model for desktop computers. It features the AM4 socket, making it compatible with AMD Ryzen 3000 Series processors. It has four DIMM slots for DDR4-SDRAM memory, with support for unbuffered and ECC memory, a maximum capacity of 128 GB and dual-channel operation. In terms of storage, it supports HDD and SSD drives via M.2 and SATA interfaces, and includes RAID compatibility at levels 0, 1 and 10. It allows up to two displays to be connected. Its dimensions are 305 x 75 x 244 mm (width x height x depth) and its weight is 945 g.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM4
- Compatible processor series: AMD Ryzen 3000 Series
- Supported processor sockets: Socket AM4
Memory
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC
- Supported memory clock speeds: 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4466, 4600, 48
- Maximum internal memory: 128 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA
- RAID support: Yes
- RAID levels: 0, 1, 10
Graphics
- Parallel processing technology support: Not supported
- On-board graphics card: No
- Number of displays supported: 2

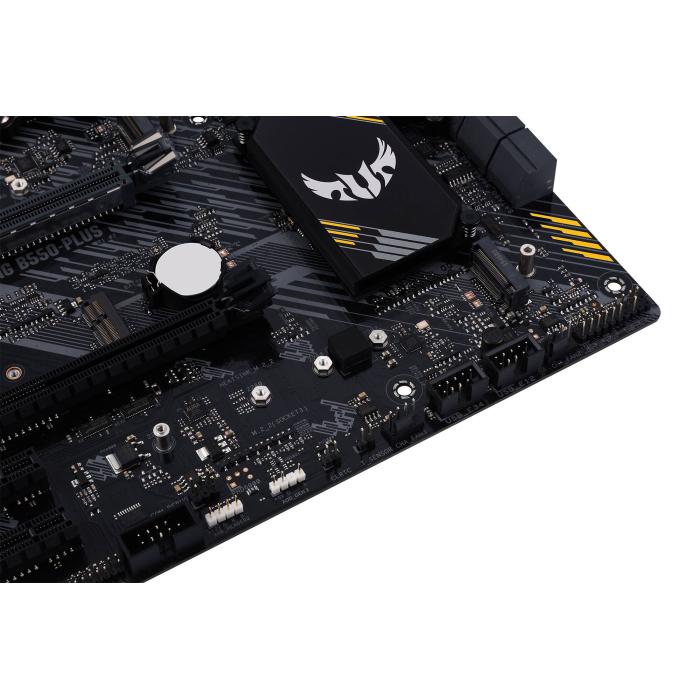

Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 6
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 3
- EPS power connector (8-pin): Yes
- Number of COM connectors: 1
- TPM connector: Yes
- Thunderbolt headers: 1
- RGB LED pin header: Yes

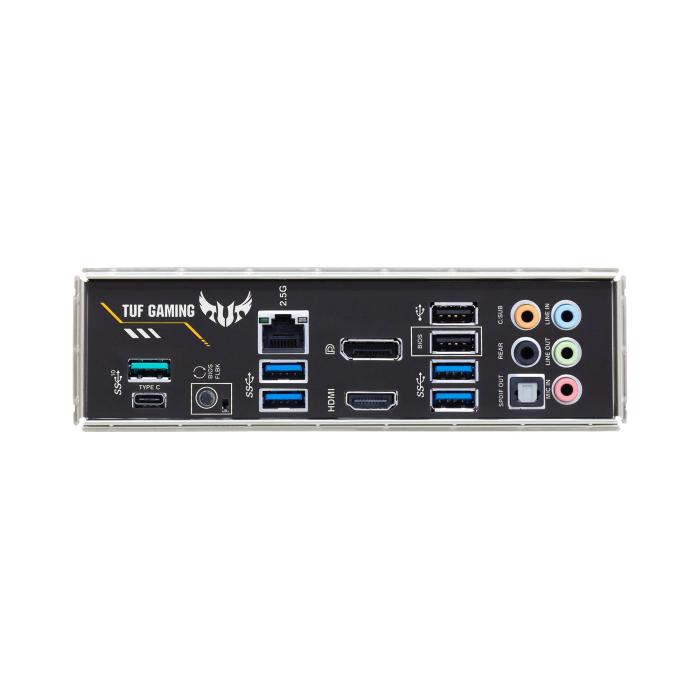

Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- Headphone outputs: 1
- Line-in: Yes
- Microphone in: Yes
- S/PDIF out port: Yes
- USB connector type: USB Type-A, USB Type-C
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- Bluetooth: Yes
- Bluetooth version: 5.2
Features
- Motherboard chipset: AMD B550
- Audio output channels: 7.1 channels
- Product colour: Black
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: AMD
- Windows operating systems supported: Windows 10, Windows 11
Expansion slots
- PCI Express x1 (Gen 3.x) slots: 3
- PCI Express x16 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 2
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
Logistics data
- Harmonized System (HS) code: 84733020
Weight & dimensions
- Width: 305 mm
- Depth: 244 mm
- Height: 75 mm
Packaging content
- Cables included: SATA
- Drivers included: Yes
Other features
- Weight: 945 g
- Packaging content: 2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 Rubber package 1 x M.2 SSD screw package 1 x TUF Gam
