Description

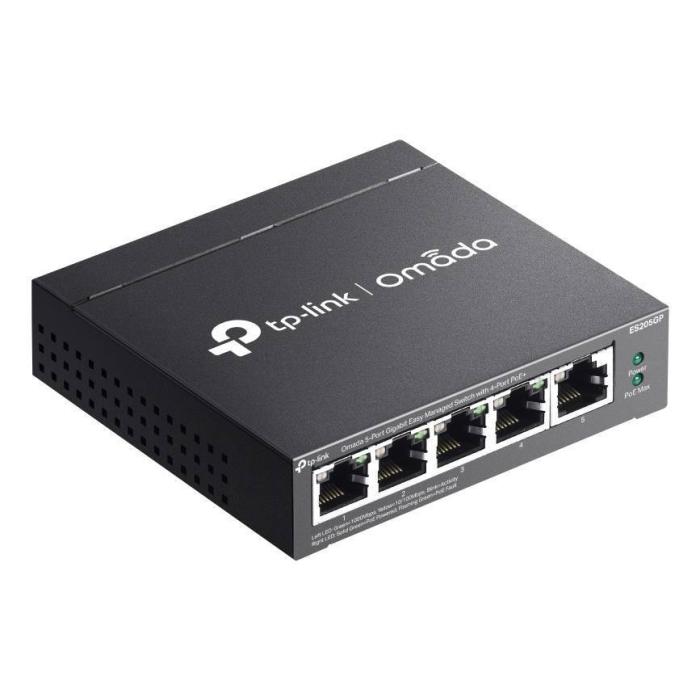

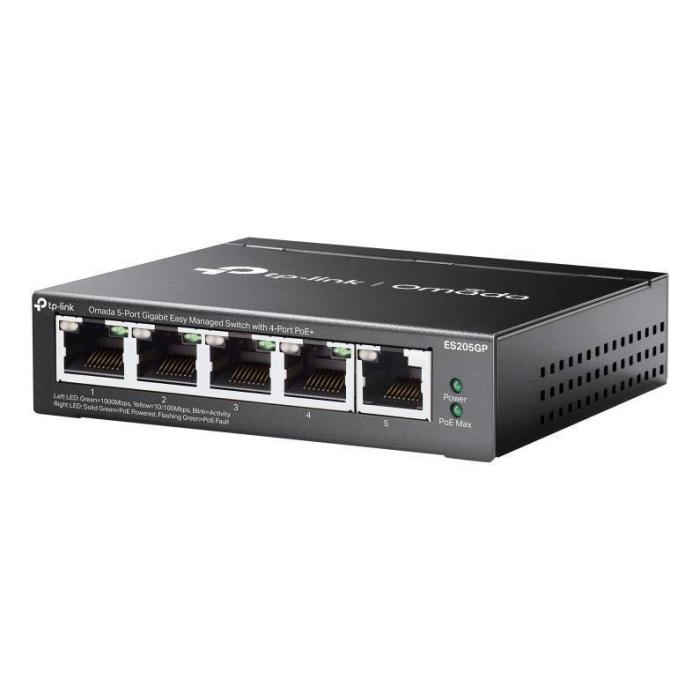

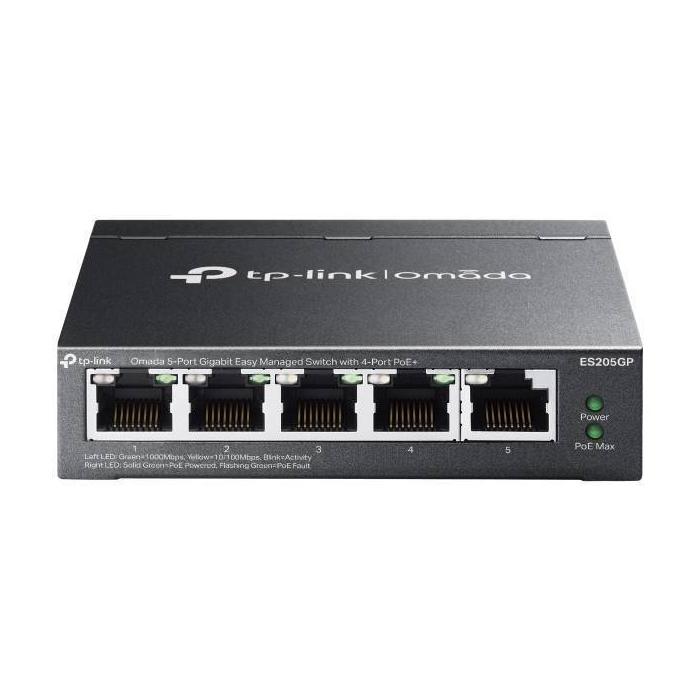

The TP-Link Omada ES205G managed switch comes in black and offers five Gigabit Ethernet RJ-45 ports (10/100/1000), with auto-negotiation and Auto MDI/MDI-X to connect devices without manual adjustments. Its management is managed and allows it to be administered via the cloud, as well as supporting QoS to prioritise critical traffic. As for segmentation, it supports VLAN (MTU VLAN, Port-based VLAN and Tagged VLAN) and complies with the IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at and IEEE 802.3x standards. It incorporates flow control, link aggregation and port mirroring, with a MAC address table of 8000 entries and a forwarding rate of 7.4 Mpps under the store-and-forward method. The maximum transmission distance is 0.25 km, and its dimensions are 100 x 25 x 98 mm (width x height x depth).
Specifications
Management features
- Switch type: Managed
- Quality of Service (QoS) support: Yes
- Cloud-managed: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 5
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
- Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x
- 10G support: No
- Port mirroring: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- VLAN support: Yes
- Virtual LAN features: MTU VLAN, Port-based VLAN, Tagged VLAN
Optical fiber
- Transmission distance (max): 0.25 km
Data transmission
- Switching capacity: 10 Gbit/s
- Forwarding rate: 7.4 Mpps
- MAC address table: 8000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 15
- Packet buffer memory: 4 MB
Security
- DHCP features: DHCP client
- IGMP snooping: Yes
- Loop protection: Yes
Design
- Product colour: Black

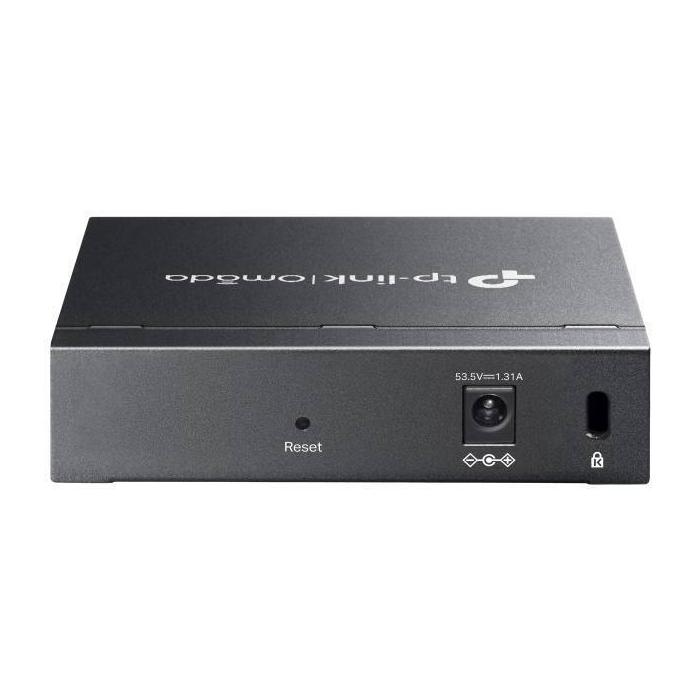

- Reset button: Yes
- LED indicators: Yes

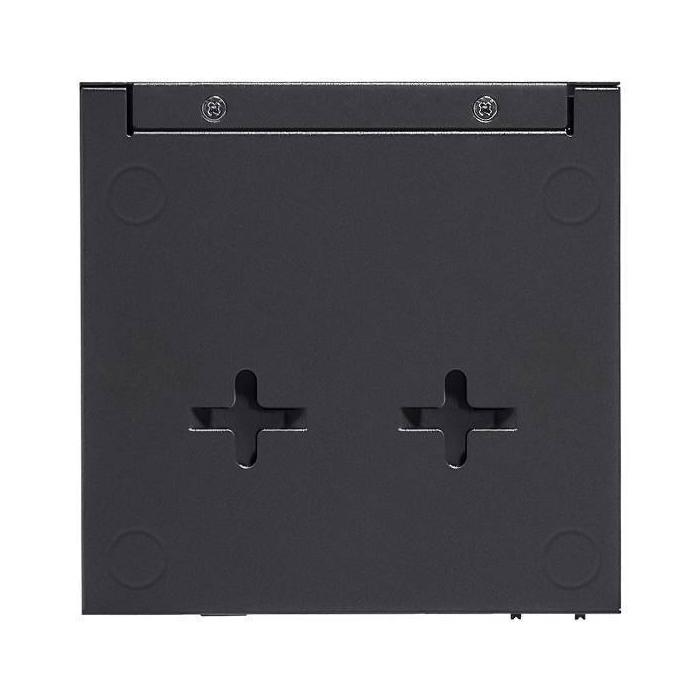

- Wall mountable: Yes
Performance
- Fanless: Yes
Power
- Power source: AC/DC
- Power supply included: Yes
- DC input voltage: 53.5 V
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 4
- Power over Ethernet plus (PoE+) ports quantity: 4
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 65 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 100 mm
- Depth: 98 mm
- Height: 25 mm
Packaging content
- User guide: Yes
Packaging data
- Package type: Box
Certificates
- Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
