Description

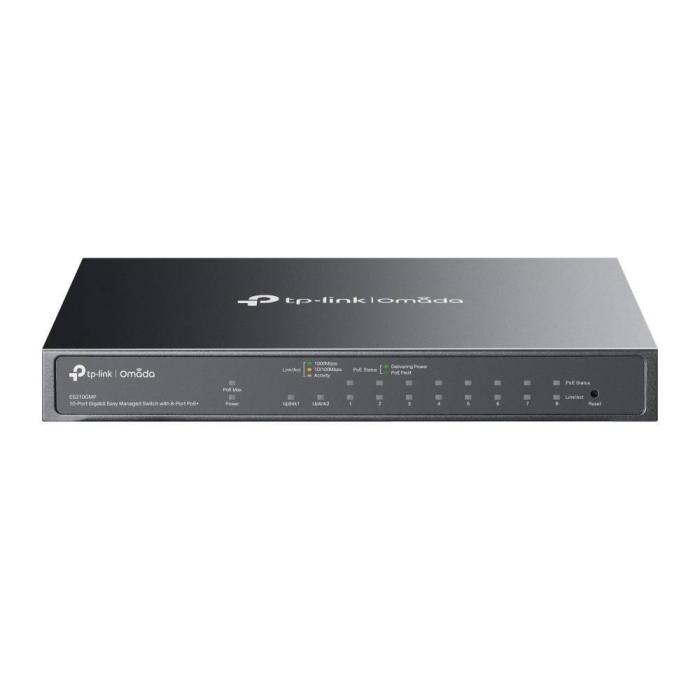

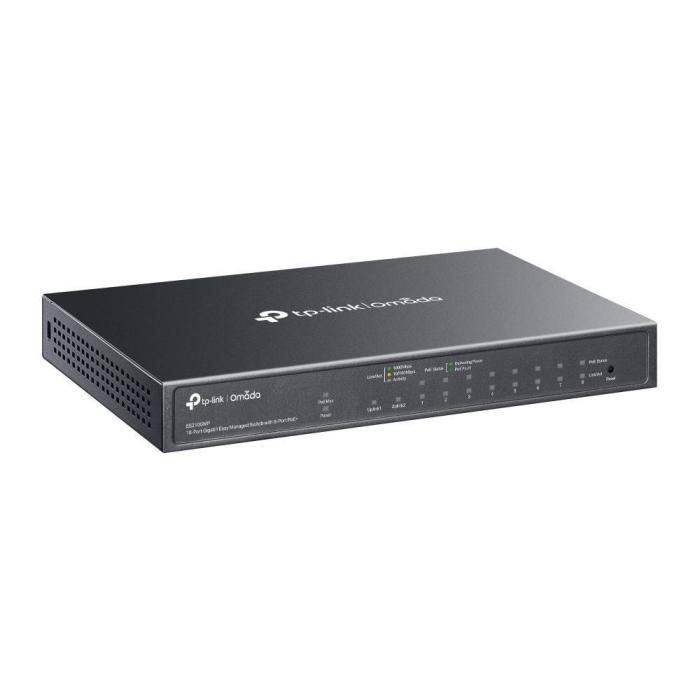

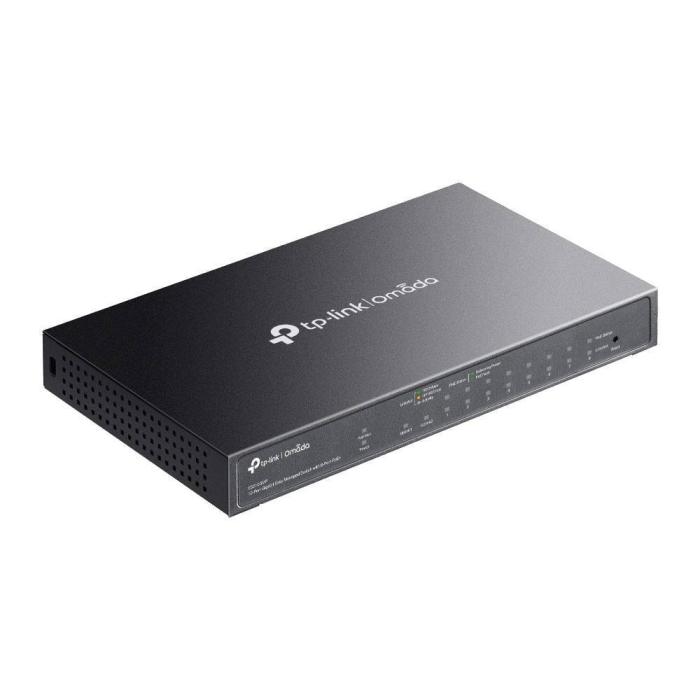

The TP-Link Omada ES210GMP managed switch comes in black and measures 209 x 26 x 126 mm (width x height x depth). It incorporates ten Gigabit Ethernet RJ-45 ports (10/100/1000) and one SFP combo port, designed to expand and segment wired networks. Its management is administered, with control also via the cloud, and includes QoS support to prioritise traffic. As for connectivity, it complies with the IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at and IEEE 802.3x standards, and offers virtual LAN functions such as MTU VLAN, Port-based VLAN and Tagged VLAN. It adds auto-negotiation, Auto MDI/MDI-X, flow control, link aggregation and port mirroring to organise traffic between devices. It stores up to 8000 entries in its MAC address table and works with store and forward. The maximum fibre transmission distance reaches 0.25 km.
Specifications
Management features
- Switch type: Managed
- Quality of Service (QoS) support: Yes
- Cloud-managed: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 10
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Combo SFP ports quantity: 1
Network
- Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
- 10G support: No
- Port mirroring: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Auto MDI/MDI-X: Yes
- Auto-negotiation: Yes
- VLAN support: Yes
- Virtual LAN features: MTU VLAN, Port-based VLAN, Tagged VLAN
Optical fiber
- Transmission distance (max): 0.25 km
Data transmission
- Switching capacity: 20 Gbit/s
- Forwarding rate: 14.88 Mpps
- MAC address table: 8000 entries
- Store-and-forward: Yes
- Jumbo frames support: Yes
- Jumbo frames: 15
- Packet buffer memory: 4 MB
Security
- DHCP features: DHCP client
- IGMP snooping: Yes
Design
- Product colour: Black
- Reset button: Yes

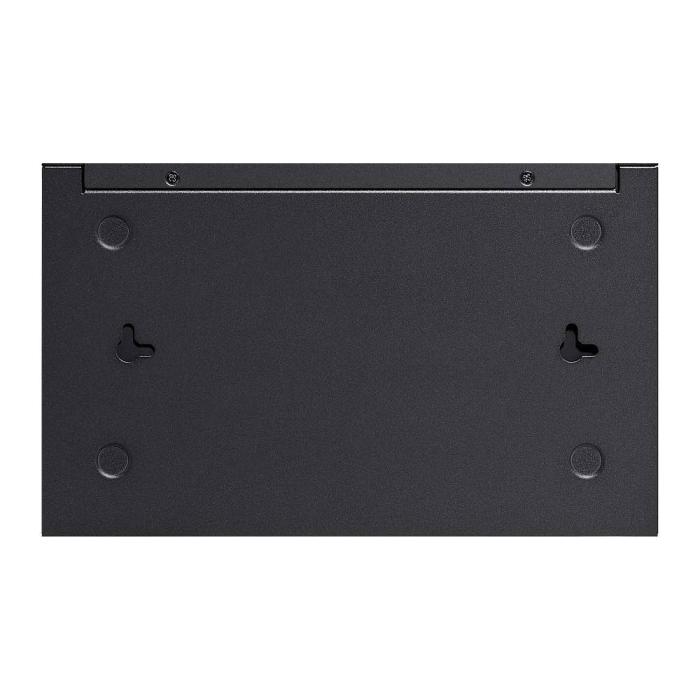

- Wall mountable: Yes
Performance
- Fanless: Yes
Power
- Power source: DC
- Power supply included: Yes
- DC input voltage: 53.5 V
- Input current: 2.43 A
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet plus (PoE+) ports quantity: 8
- Power over Ethernet (PoE) power per port: 30 W
- Total Power over Ethernet (PoE) budget: 123 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 209 mm
- Depth: 126 mm
- Height: 26 mm
Packaging content
- Cables included: AC
- User guide: Yes
Packaging data
- Package type: Box
Certificates
- Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
