Description

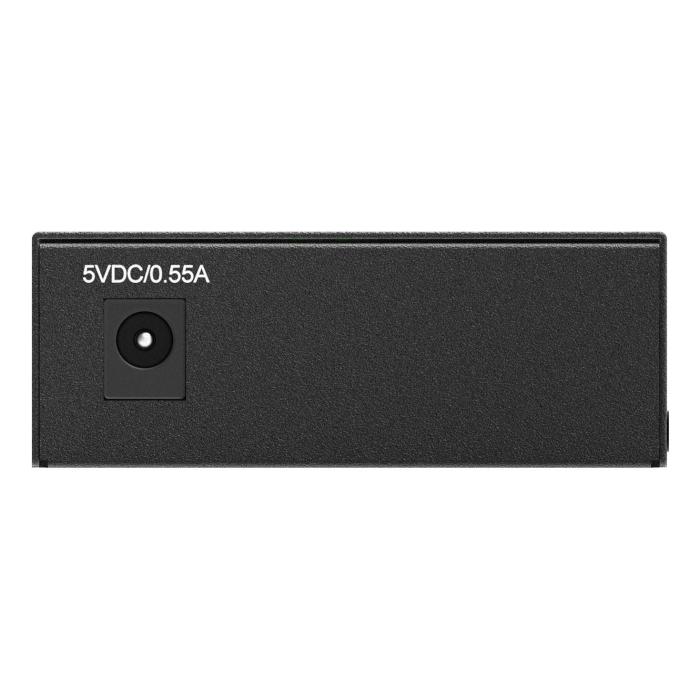

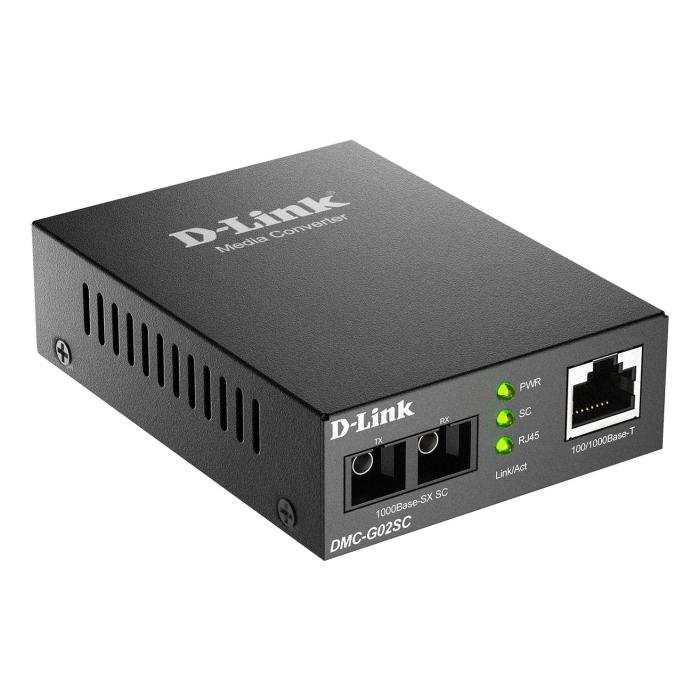

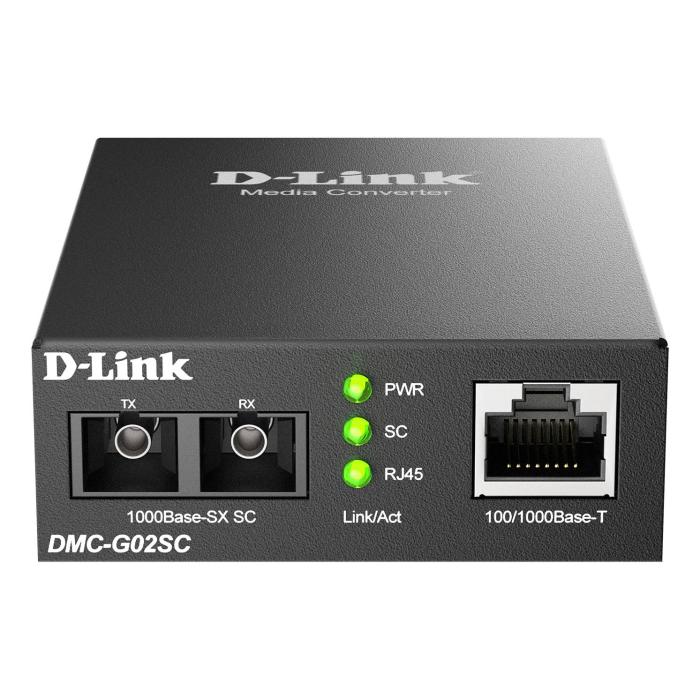

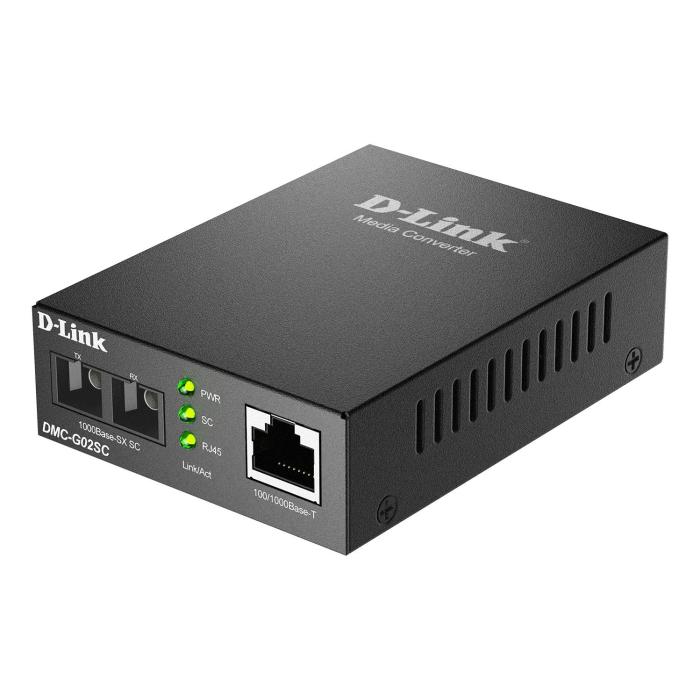

The D-Link DMC-G02SC/B media converter transforms Ethernet signals into multi-mode fibre optic at a maximum data transfer rate of 1000 Mbit/s. It features an RJ-45 Ethernet LAN port and an SC fibre optic connector, with 10Base-T, 100Base-T and 1000Base-T input interface and 1000Base-SX output interface, and supports the IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x and IEEE 802.3z network standards. It includes Auto MDI/MDI-X for automatic cabling adjustment and reaches a maximum transfer distance of 550 m over multi-mode fibre. Its LED indicators show activity, link and power, and its connectivity technology is wired. It is powered through the DC input socket, with an output voltage of 5 V, an output current of 0.55 A and a maximum power consumption of 1.65 W. It has dimensions of 93.5 x 26 x 70.5 mm (width x height x depth) and a weight of 124 g.
Specifications
Network
- Maximum data transfer rate: 1000 Mbit/s
- Converter input interface: 10Base-T, 100Base-T, 1000Base-T
- Converter output interface: 1000Base-SX
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- Auto MDI/MDI-X: Yes
Performance
- Maximum transfer distance: 550 m
- Fiber mode structure: Multi-mode
Features
- Internal: No
- LED indicators: Activity, Link, Power
Ports & interfaces
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber optic connector: SC
- DC-in jack: Yes
Power
- Output voltage: 5 V
- Output current: 0.55 A
- Power consumption (max): 1.65 W
Weight & dimensions
- Width: 93.5 mm
- Depth: 70.5 mm
- Height: 26 mm
- Weight: 124 g
Operational conditions
- Operating temperature (T-T): 0 - 55 °C
- Storage temperature (T-T): -25 - 70 °C
- Operating relative humidity (H-H): 20 - 80%
