Description

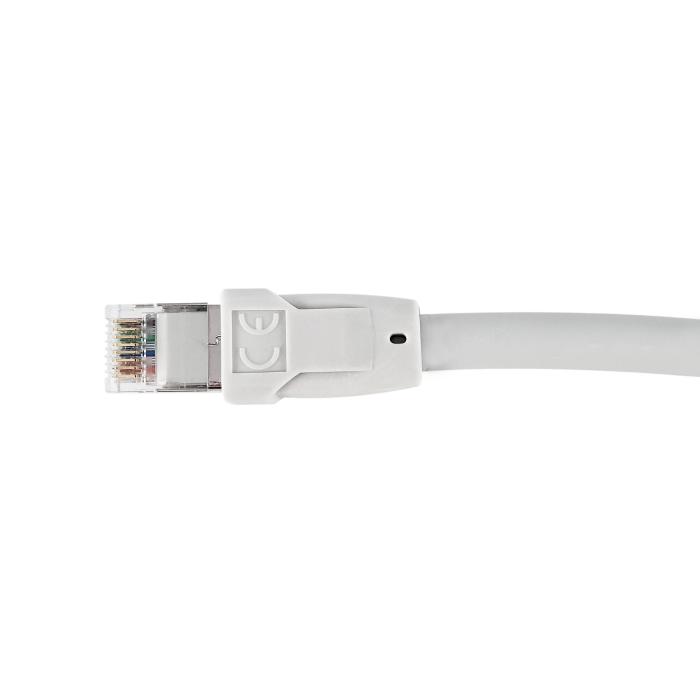

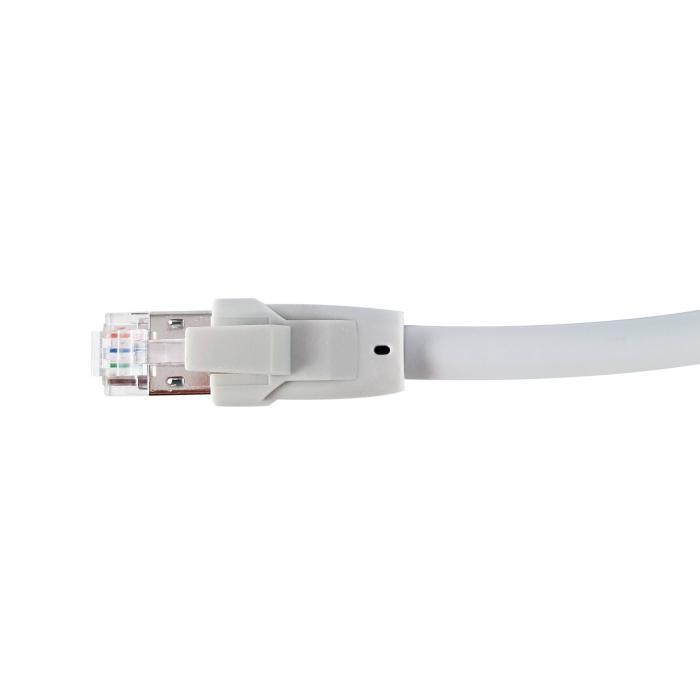

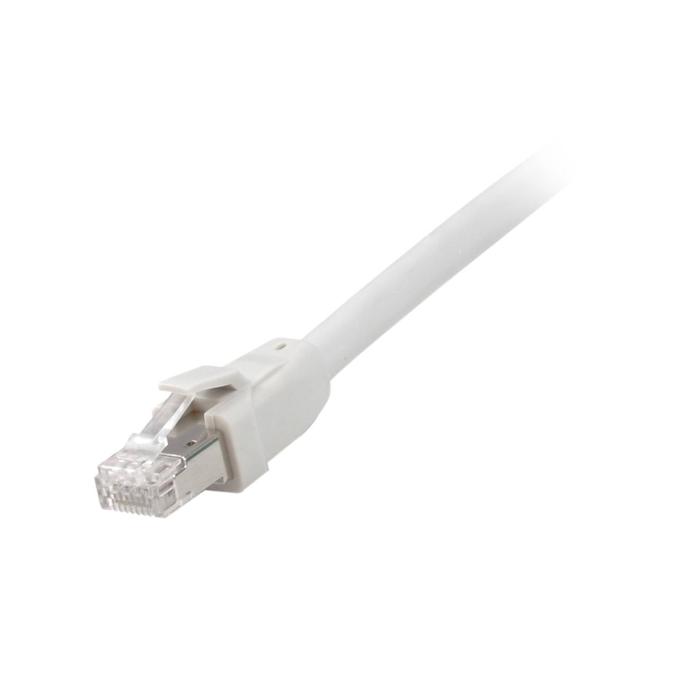

5 m grey EQUIP network cable, designed for installations requiring high and stable performance. Its Cat8.1 construction with S/FTP (S-STP) shielding and AWG 24/7 stranded conductors allows it to reach a frequency of 2000 MHz and a data transfer rate of 40000 Mbit/s. It is compatible with 40GBase-T and with 10 Gigabit Ethernet, 40 Gigabit Ethernet, Gigabit Ethernet and Fast Ethernet networks, and complies with IEEE 802.3 and IEEE 802.5 standards. Its two male connectors are straight and feature gold-plated contacts, which favours reliable transmission on every connection. It supports Power over Ethernet (PoE), so it can power devices through the cable itself. The cable is round, weighs 350 g and measures 8 x 5000 x 8 mm.
Specifications
Features
- Product colour: Grey
- Cable length: 5 m
- Cable standard: Cat8.1
- Cable shielding: S/FTP (S-STP)
- Connector 1: RJ-45
- Connector 2: RJ-45
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Gold
- Jacket material: Low smoke zero halogen (LSZH)
- Cable shape: Round
- Conductor type: Stranded
- Conductor material: Copper
- Cabling technology: 40GBase-T
- Ethernet interface type: 10 Gigabit Ethernet, 40 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- Networking standards: IEEE 802.3, IEEE 802.5
- AWG wire size: 24/7
- Data transfer rate: 40000 Mbit/s
- Frequency: 2000 MHz
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) type supported: PoE+, PoE++ (4PPoE)
- Plug and Play: Yes
- Country of origin: China
Sustainability
- Doesn't contain: Halogen
Certificates
- Compliance certificates: CE, REACH, RoHS
Weight & dimensions
- Width: 8 mm
- Depth: 8 mm
- Height: 5000 mm
- Outer diameter: 8 mm
- Weight: 350 g
Packaging content
- Quantity per pack: 1 pc(s)
Packaging data
- Package width: 330 mm
- Package depth: 16 mm
- Package height: 200 mm
- Package weight: 410 g
- Package type: Polybag
Logistics data
- Harmonized System (HS) code: 84733080
- Master (outer) case width: 300 mm
- Master (outer) case length: 380 mm
- Master (outer) case gross weight: 15 kg
- Master (outer) case height: 400 mm
- Products per master (outer) case: 40 pc(s)
Technical details
- Sustainability compliance: Yes
