Description

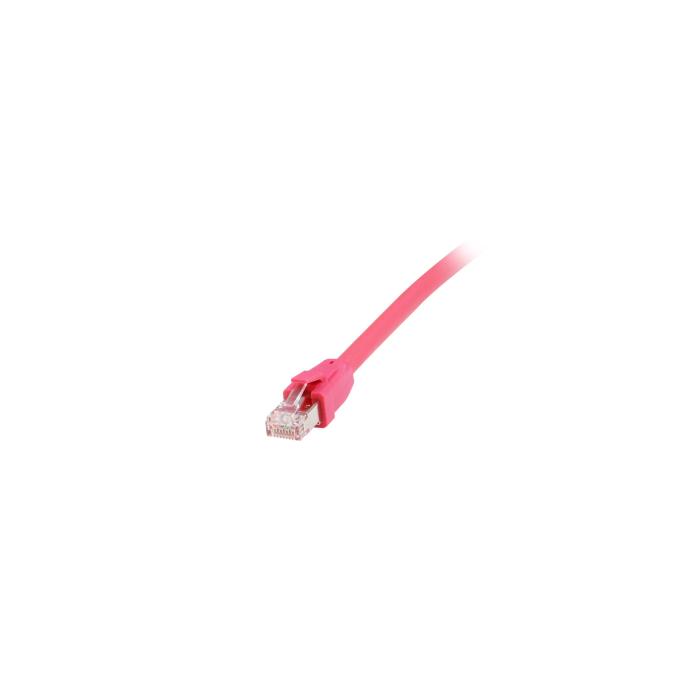

The Equip 608020 network cable is a red patch cable with a length of 1 m, dimensions of 8 x 1000 x 8 mm and a weight of 85.6 g. It is a Cat8.1 cable with S/FTP (S-STP) shielding, designed for installations that demand high data transmission performance. Its two RJ-45 connectors are male and straight, with gold-plated contacts to promote a stable connection. The conductor is stranded, with AWG 24/7 gauge, and the cable is round, which makes it easier to handle during cabling. It supports a frequency of 2000 MHz and a data transfer rate of 40000 Mbit/s, falling within 40GBase-T cabling technology. It is compatible with Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet and 40 Gigabit Ethernet networks, and complies with IEEE 802.3 and IEEE 802.5 standards. It also supports Power over Ethernet (PoE), so it can power devices through the cable itself.
Specifications
Features
- Product colour: Red
- Cable length: 1 m
- Cable standard: Cat8.1
- Cable shielding: S/FTP (S-STP)
- Connector 1: RJ-45
- Connector 2: RJ-45
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Gold
- Jacket material: Low smoke zero halogen (LSZH)
- Cable shape: Round
- Conductor type: Stranded
- Conductor material: Copper
- Cabling technology: 40GBase-T
- Ethernet interface type: 10 Gigabit Ethernet, 40 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- Networking standards: IEEE 802.3, IEEE 802.5
- AWG wire size: 24/7
- Data transfer rate: 40000 Mbit/s
- Frequency: 2000 MHz
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) type supported: PoE+, PoE++ (4PPoE)
- Plug and Play: Yes
- Country of origin: China
Sustainability
- Doesn't contain: Halogen
Certificates
- Compliance certificates: CE, REACH, RoHS
Weight & dimensions
- Width: 8 mm
- Depth: 8 mm
- Height: 1000 mm
- Outer diameter: 8 mm
- Weight: 85.6 g
Packaging content
- Quantity per pack: 1 pc(s)
Packaging data
- Package width: 275 mm
- Package depth: 16 mm
- Package height: 175 mm
- Package weight: 100 g
- Package type: Polybag
Logistics data
- Harmonized System (HS) code: 84733080
- Master (outer) case width: 300 mm
- Master (outer) case length: 380 mm
- Master (outer) case gross weight: 11.7 kg
- Master (outer) case height: 400 mm
- Products per master (outer) case: 125 pc(s)
Technical details
- Sustainability compliance: Yes
