Description

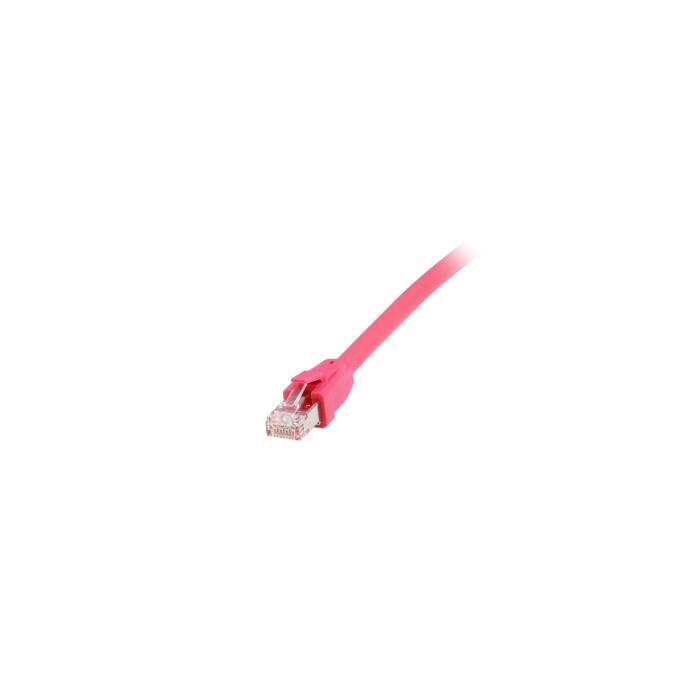

The EQUIP 608022 network cable in red with a 3 m cable connects your devices via two straight male RJ-45 connectors. Its S/FTP (S-STP) construction with copper conductors and gold-plated contacts offers reliable transmission under the Cat8.1 standard, ready for 40GBase-T cabling technology. The halogen-free sheath (LSZH) contributes to safer behaviour in the event of fire exposure, while the cable gauge is 24/7. It is compatible with PoE, PoE+ and PoE++ (4PPoE) power, so it can power network devices through the cabling itself. Thanks to its plug and play function, you only need to plug in both ends to start working. With a weight of 220 g and dimensions of 8 x 3000 x 8 mm (width x height x depth), it is manageable in desktop and rack installations.
Specifications
Features
- Product colour: Red
- Cable length: 3 m
- Cable standard: Cat8.1
- Cable shielding: S/FTP (S-STP)
- Connector 1: RJ-45
- Connector 2: RJ-45
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Gold
- Jacket material: Low smoke zero halogen (LSZH)
- Cable shape: Round
- Conductor type: Stranded
- Conductor material: Copper
- Cabling technology: 40GBase-T
- Ethernet interface type: 10 Gigabit Ethernet, 40 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- Networking standards: IEEE 802.3, IEEE 802.5
- AWG wire size: 24/7
- Data transfer rate: 40000 Mbit/s
- Frequency: 2000 MHz
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) type supported: PoE+, PoE++ (4PPoE)
- Plug and Play: Yes
- Country of origin: China
Sustainability
- Doesn't contain: Halogen
Certificates
- Compliance certificates: CE, REACH, RoHS
Weight & dimensions
- Width: 8 mm
- Depth: 8 mm
- Height: 3000 mm
- Outer diameter: 8 mm
- Weight: 220 g
Packaging content
- Quantity per pack: 1 pc(s)
Packaging data
- Package width: 330 mm
- Package depth: 16 mm
- Package height: 200 mm
- Package weight: 270 g
- Package type: Polybag
Logistics data
- Harmonized System (HS) code: 84733080
- Master (outer) case width: 300 mm
- Master (outer) case length: 380 mm
- Master (outer) case gross weight: 12 kg
- Master (outer) case height: 400 mm
- Products per master (outer) case: 50 pc(s)
Technical details
- Sustainability compliance: Yes
