Description

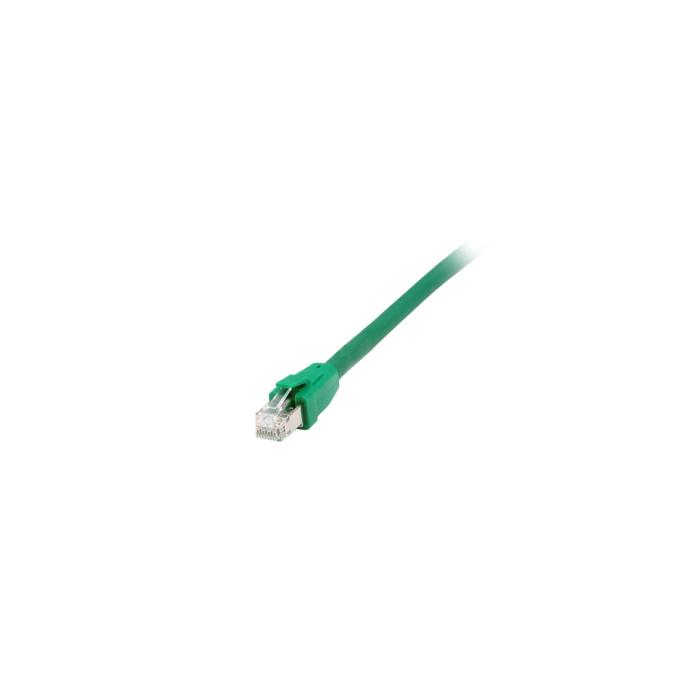

Equip 608040 network cable in green is a 1 m length patch cable with straight RJ-45 connectors at both ends. Its Cat8.1 S/FTP (S-STP) construction with 24/7 AWG stranded copper conductors and gold-plated contacts offers an operating frequency of 2000 MHz and supports 40GBase-T cabling technology. The halogen-free jacket (LSZH) and S/FTP shielding contribute to reliable performance in demanding installations, complying with IEEE 802.3 and IEEE 802.5 standards. It supports Power over Ethernet (PoE), so it can power compatible devices through the cable itself. The round shape of the cable facilitates handling in conduits and tight spaces. It is a plug-and-play product, ready to operate without additional configuration. Its dimensions are 8 x 1000 x 8 mm (width x height x depth) and its weight is 85.6 g.
Specifications
Features
- Product colour: Green
- Cable length: 1 m
- Cable standard: Cat8.1
- Cable shielding: S/FTP (S-STP)
- Connector 1: RJ-45
- Connector 2: RJ-45
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Gold
- Jacket material: Low smoke zero halogen (LSZH)
- Cable shape: Round
- Conductor type: Stranded
- Conductor material: Copper
- Cabling technology: 40GBase-T
- Ethernet interface type: 10 Gigabit Ethernet, 40 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- Networking standards: IEEE 802.3, IEEE 802.5
- AWG wire size: 24/7
- Data transfer rate: 40000 Mbit/s
- Frequency: 2000 MHz
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) type supported: PoE+, PoE++ (4PPoE)
- Plug and Play: Yes
- Country of origin: China
Sustainability
- Doesn't contain: Halogen
Certificates
- Compliance certificates: CE, REACH, RoHS
Weight & dimensions
- Width: 8 mm
- Depth: 8 mm
- Height: 1000 mm
- Outer diameter: 8 mm
- Weight: 85.6 g
Packaging content
- Quantity per pack: 1 pc(s)
Packaging data
- Package width: 275 mm
- Package depth: 16 mm
- Package height: 175 mm
- Package weight: 100 g
- Package type: Polybag
Logistics data
- Harmonized System (HS) code: 84733080
- Master (outer) case width: 300 mm
- Master (outer) case length: 380 mm
- Master (outer) case gross weight: 11.7 kg
- Master (outer) case height: 400 mm
- Products per master (outer) case: 125 pc(s)
Technical details
- Sustainability compliance: Yes
