Description

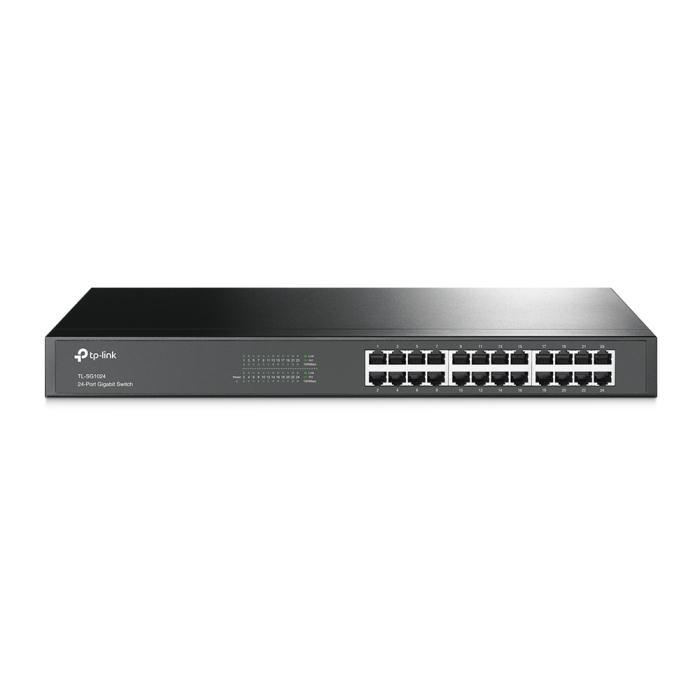

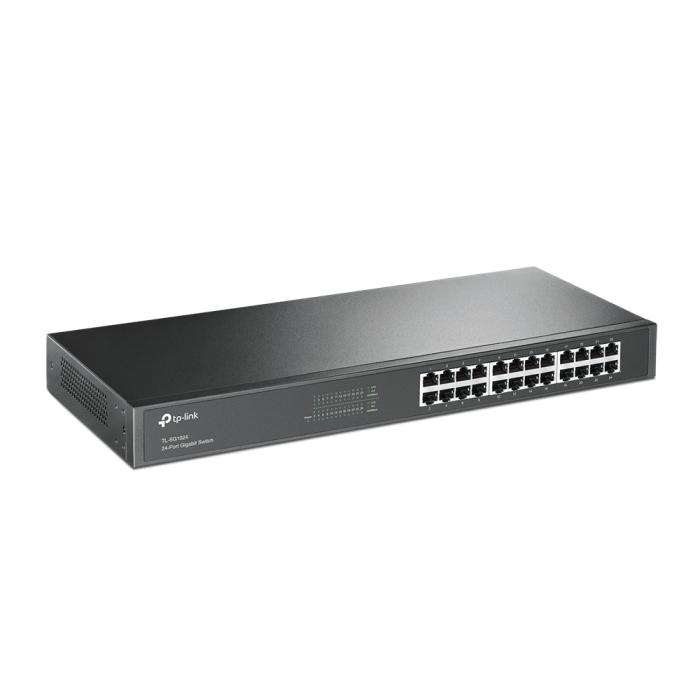

The TP-Link TL-SG1024 switch is an unmanaged L2 device in black, designed to expand the local network with wired connections. It offers 24 Gigabit Ethernet RJ-45 ports (10/100/1000), so you can connect computers, printers and other equipment at gigabit speeds. It includes switching functions such as rate limiting, storm transmission control, link aggregation and port mirroring, as well as auto MDI/MDI-X and full duplex. It supports Quality of Service (QoS), flow control and up to 32 VLANs, and works with the IEEE 802.1Q, 802.1p, 802.3, 802.3ab and 802.3u standards over 10BASE-T, 100BASE-TX and 1000BASE-T copper cabling. Its packet buffer memory is 4.1 MB and it has 4 queues for managing traffic. With dimensions of 294 x 44 x 180 mm (width x height x depth), it fits easily into cabinets and on desks.
Specifications
Management features
- Switch type: Unmanaged
- Switch layer: L2
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
- Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- 10G support: No
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- Port mirroring: Yes
- Full duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- Auto MDI/MDI-X: Yes
- Number of VLANs: 32
Data transmission
- Switching capacity: 48 Gbit/s
- Throughput: 35.7 Mpps
- MAC address table: 8000 entries
- Store-and-forward: Yes
- Number of queues: 4
- Jumbo frames support: Yes
- Jumbo frames: 10000
- Packet buffer memory: 4.1 MB
Security
- IGMP snooping: Yes
Design
- Rack mounting: Yes
- Product colour: Black
- LED indicators: Yes
Power
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (typical): 14.19 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Heat dissipation: 48.39 BTU/h
Weight & dimensions
- Width: 294 mm
- Depth: 180 mm
- Height: 44 mm
Packaging content
- Cables included: AC
- User guide: Yes
- Rack mount kit: Yes
Packaging data
- Package type: Box
Certificates
- Certification: FCC, CE, RoHS
Logistics data
- Harmonized System (HS) code: 85176990
