Description

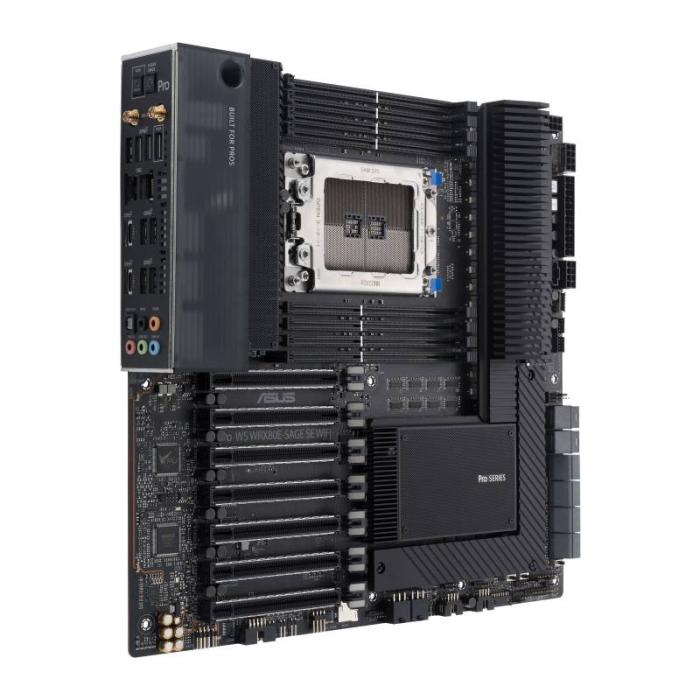

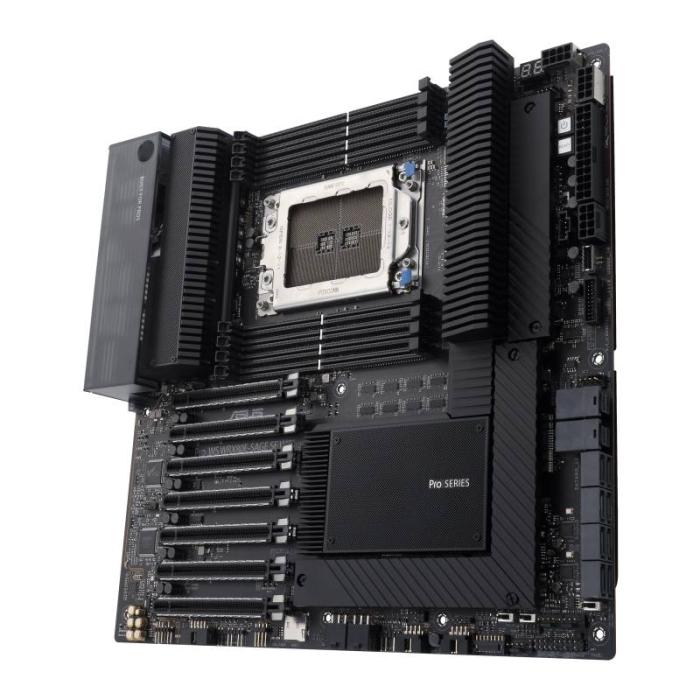

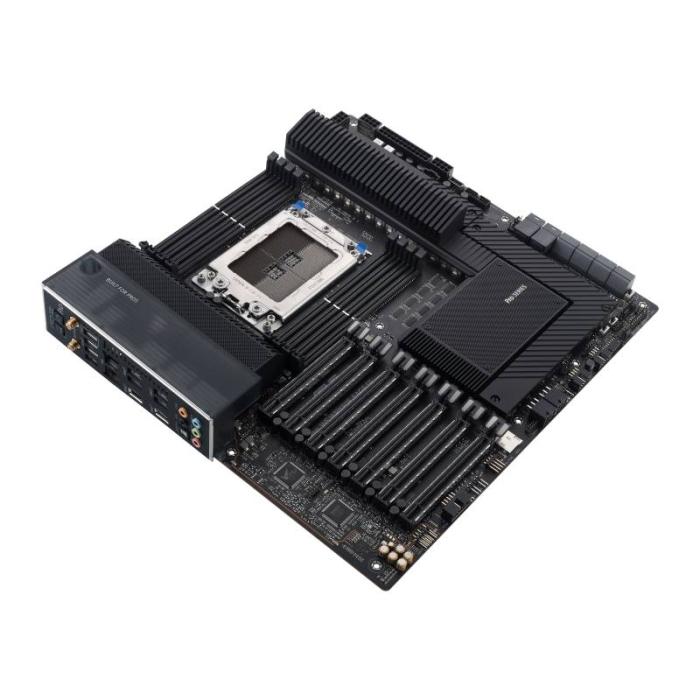

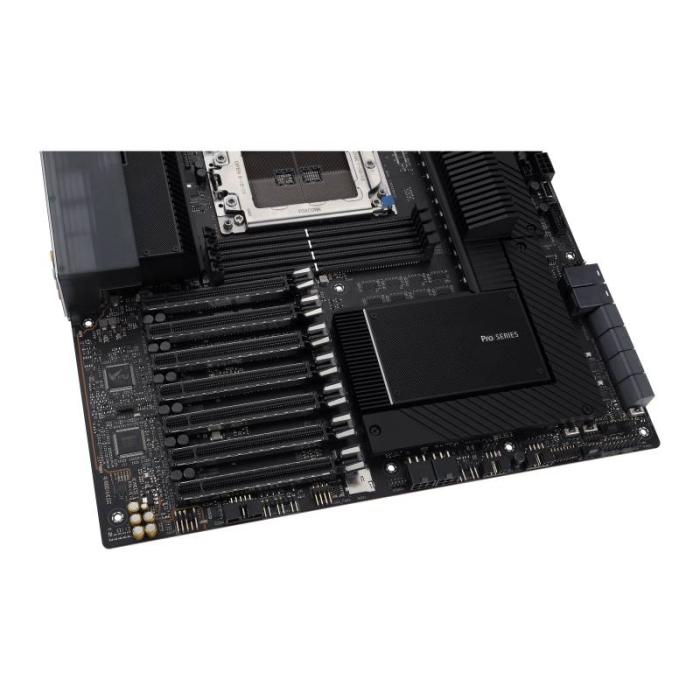

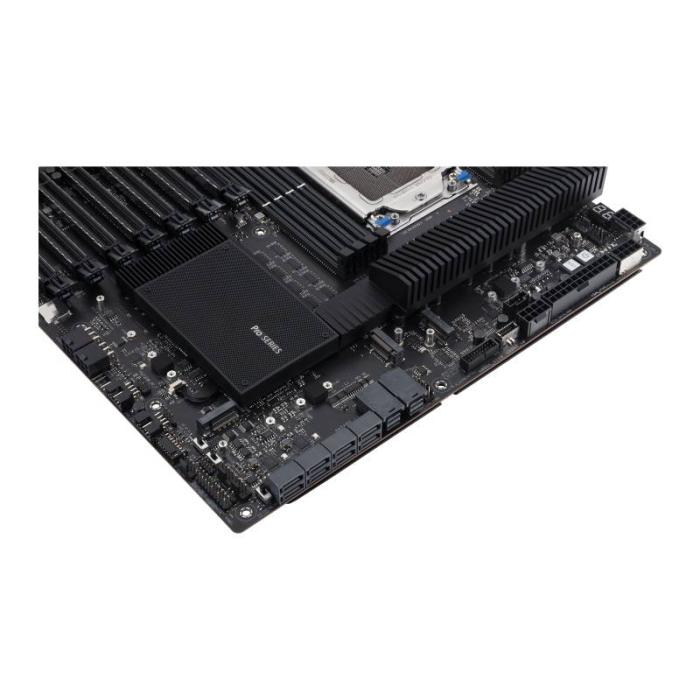

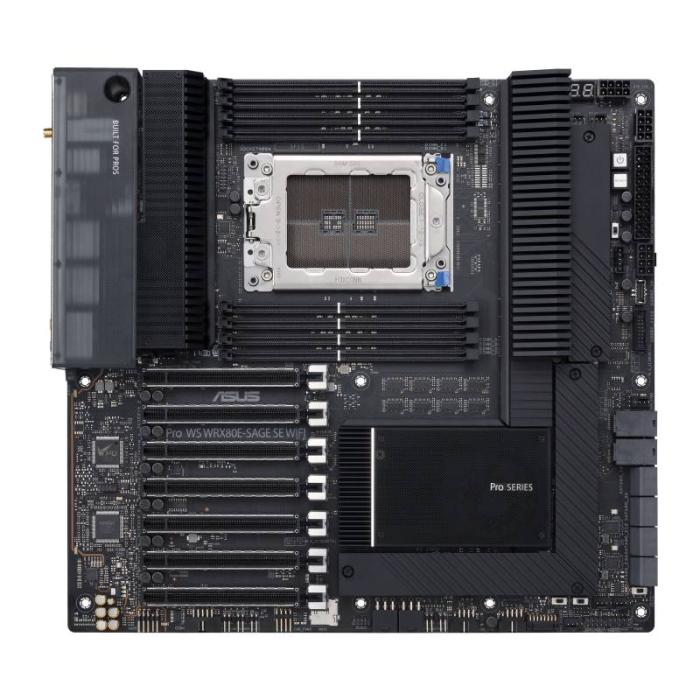

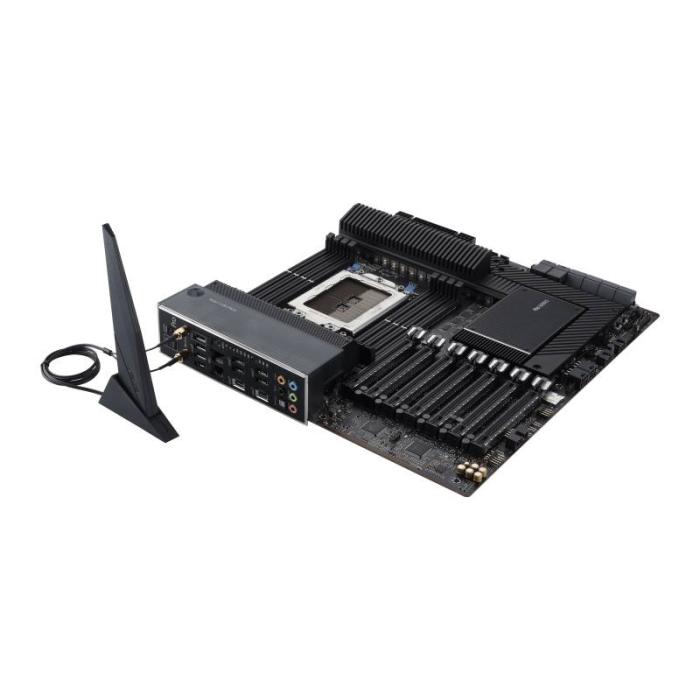

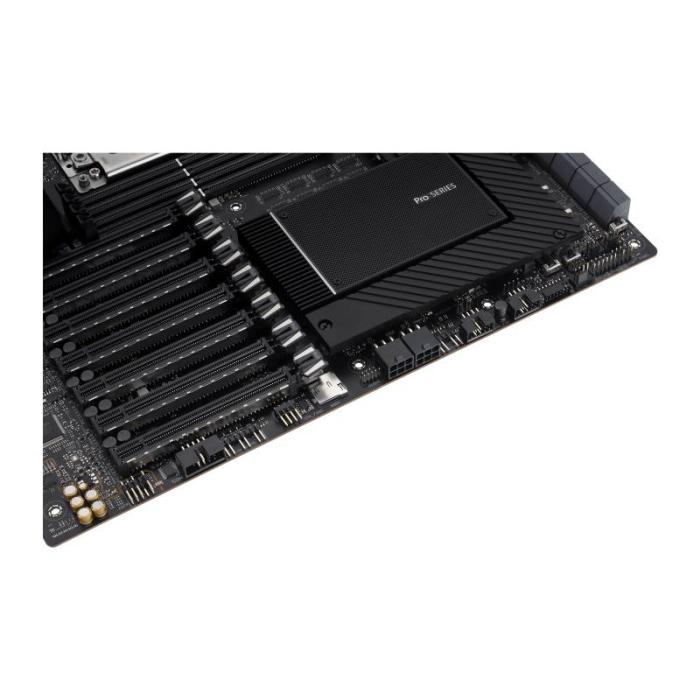

The ASUS WRX80E-SAGE SE WIFI motherboard is an extended ATX board for Socket SP3, compatible with AMD Ryzen Threadripper PRO 3000 WX-Series processors and with support for up to 64 cores. It integrates eight DIMM slots for DDR4-SDRAM memory in an eight-channel configuration, with supported clock speeds of 2133, 2400, 2666, 2800, 2933, 3000 and 3200 MHz, ECC and non-ECC compatibility, and a maximum internal memory of 2.05 TB. For storage it offers eight SATA III connectors and RAID support at levels 0, 1, 5 and 10. In the graphics section it supports 2-Way SLI, 3-Way SLI and 4-Way SLI configurations, and supports a single processor. Its dimensions are 309.8 x 108 x 330 mm (width x height x depth) and its weight is 572 g.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket SP3
- Compatible processor series: AMD Ryzen Threadripper PRO 3000 WX-Series
- Maximum number of SMP processors: 1
- Processor number of cores supported: 64
- Processor cores: 64
Memory
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 8
- Memory slots type: DIMM
- Memory channels: Octa-channel
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 2133, 2400, 2666, 2800, 2933, 3000, 3200 MHz
- Maximum internal memory: 2.05 TB
Storage controllers
- Supported storage drive interfaces: SATA III
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Graphics
- Parallel processing technology support: 2-Way SLI, 3-Way SLI, 4-Way SLI
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 8
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 6
- Chassis intrusion connector: Yes
- EPS power connector (8-pin): Yes
- TPM connector: Yes

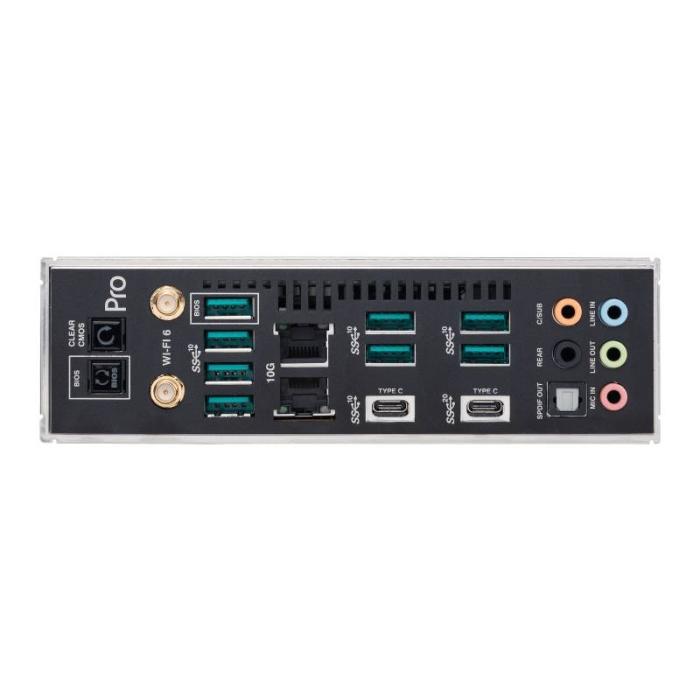

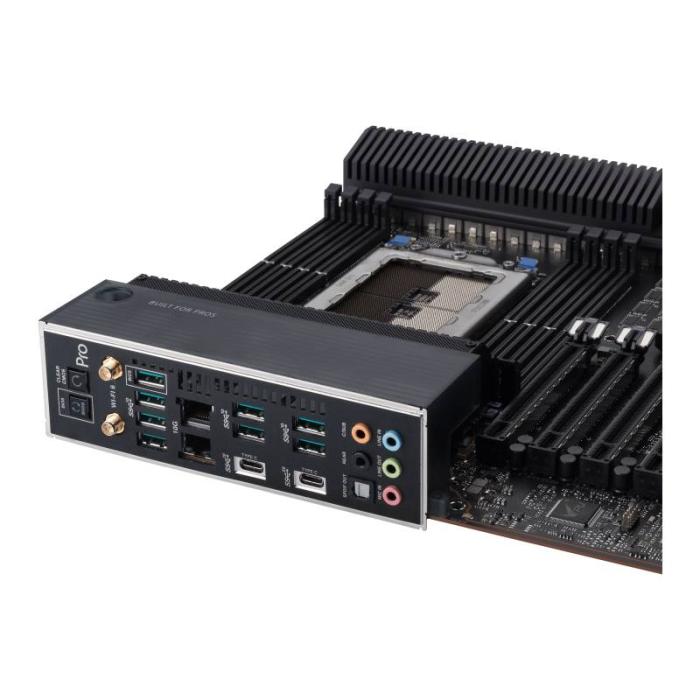

Rear panel I/O ports
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 9
- VGA (D-Sub) ports quantity: 1
- Headphone outputs: 1
Network
- Ethernet LAN: Yes
- Ethernet interface type: 10 Gigabit Ethernet
- LAN controller: Intel X550-T2
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Features
- Motherboard chipset: AMD WRX80
- Component for: PC
- Motherboard form factor: Extended ATX
- Motherboard chipset family: AMD
- Cooling type: Passive
- Windows operating systems supported: Windows 10 x64
- Compatible operating systems: Windows 10
Expansion slots

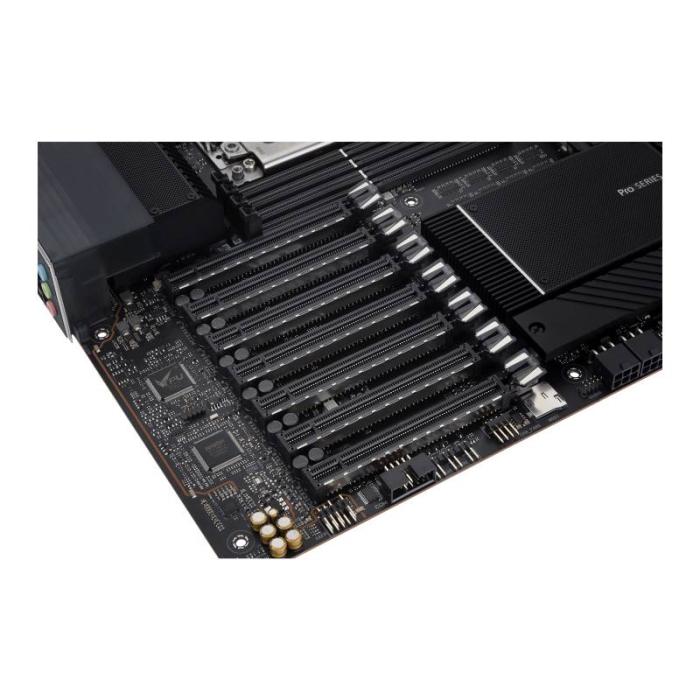

- PCI Express x16 slots: 7
- Number of M.2 (M) slots: 3
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- Clear CMOS button: Yes
Processor special features
- Trusted Platform Module (TPM): Yes
Logistics data
- Harmonized System (HS) code: 84733020
Weight & dimensions
- Width: 309.8 mm
- Depth: 330 mm
- Height: 108 mm

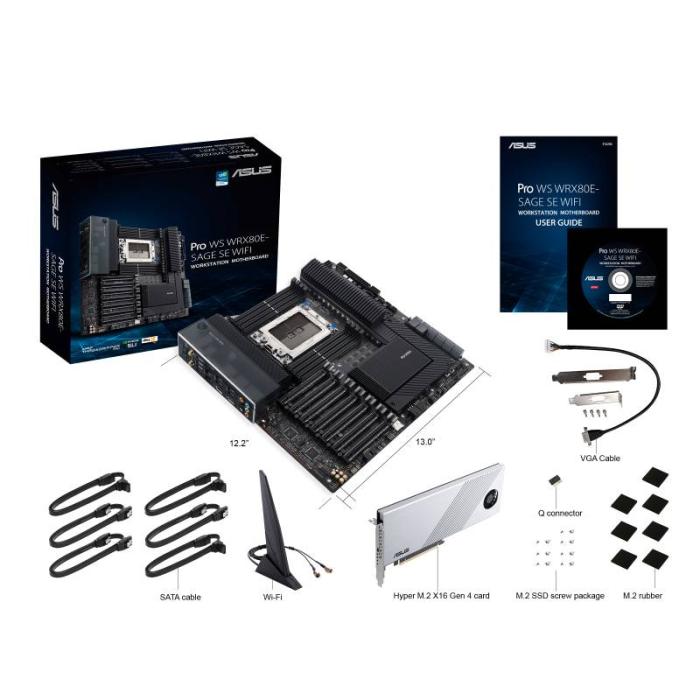

Packaging content
- Cables included: SATA, VGA
- Drivers included: Yes
Other features
- Weight: 572 g
- Number of processors supported: 1
