Description

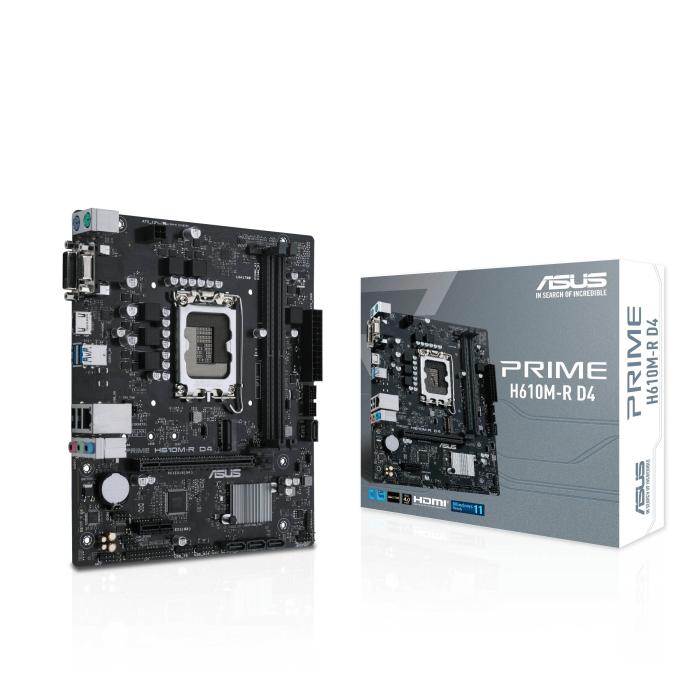

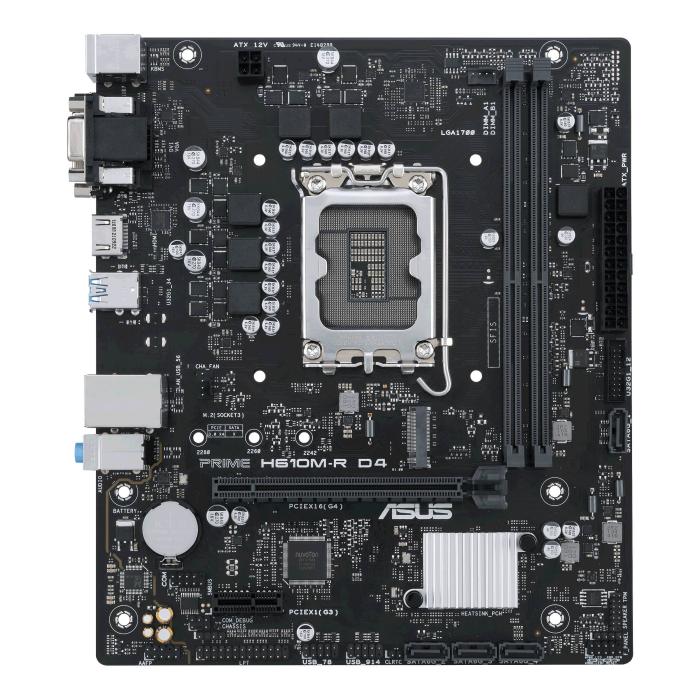

The ASUS PRIME H610M-R D4 motherboard is a micro ATX board with an LGA 1700 socket, designed for Intel Celeron, Pentium G processors and the Core i3, i5, i7 and i9 families. It supports up to 64 GB of DDR4-SDRAM memory spread across two DIMM slots, with dual-channel operation and clock speeds of 2133, 2400, 2666, 2800, 2933, 3000 and 3200 MHz. As for storage, it accommodates five drives between HDDs and SSDs via M.2 and SATA III interfaces, so you can combine a fast SSD with higher-capacity drives. Its integrated graphics reach a maximum resolution of 3840 x 2160 pixels, enough to work in detail on high-definition screens. It includes a 24-pin ATX power connector to complete the build of the system. The board measures 226 x 51 x 193 mm (width x height x depth) and weighs 842 g, so it fits easily into compact-format cases.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
- Supported processor sockets: LGA 1700
Memory
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 2133, 2400, 2666, 2800, 2933, 3000, 3200 MHz
- Maximum internal memory: 64 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of storage drives supported: 5
Graphics
- Parallel processing technology support: Not supported
- Maximum resolution: 3840 x 2160 pixels
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- Audio connector: Yes
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 1
- Chassis intrusion connector: Yes
- Number of COM connectors: 1
- TPM connector: Yes
- 12V power connector: Yes
Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 2
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- DVI-D ports quantity: 1
- Headphone outputs: 3
- Microphone in: Yes
- USB connector type: USB Type-A
Network
- Ethernet LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- Wake-on-LAN ready: Yes
- Wi-Fi: No
Features
- Motherboard chipset: Intel H610
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: Intel
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
Expansion slots
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 1
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 128 Mbit
- Clear CMOS jumper: Yes
Logistics data
- Harmonized System (HS) code: 84733020
Weight & dimensions
- Width: 226 mm
- Depth: 193 mm
- Height: 51 mm
Packaging content
- Cables included: SATA
- Drivers included: Yes
Other features
- Weight: 842 g
