Description

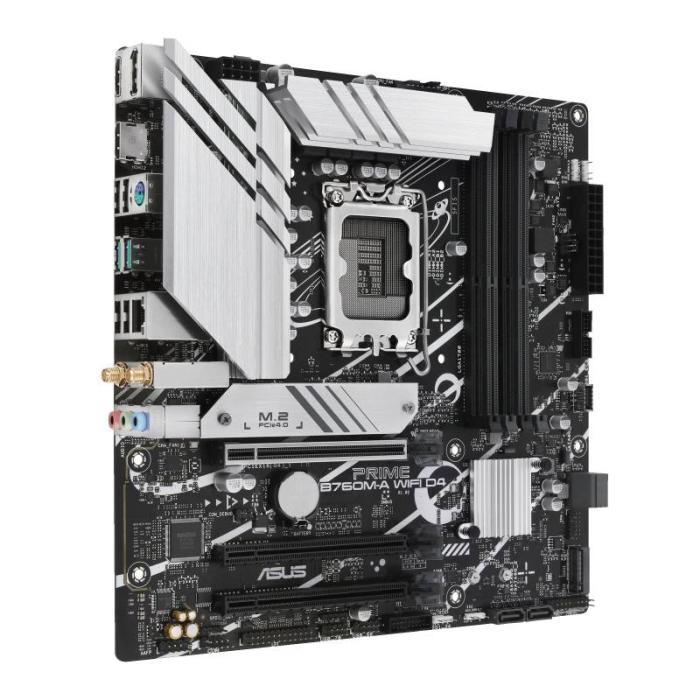

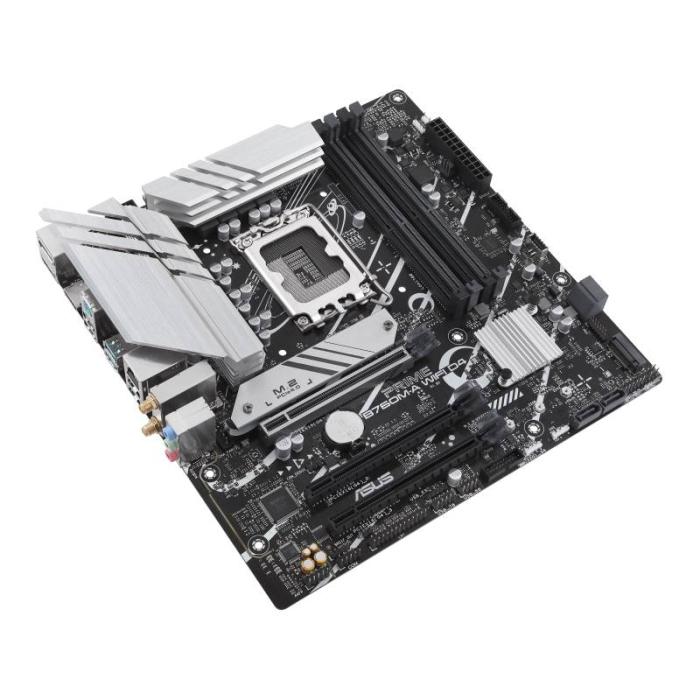

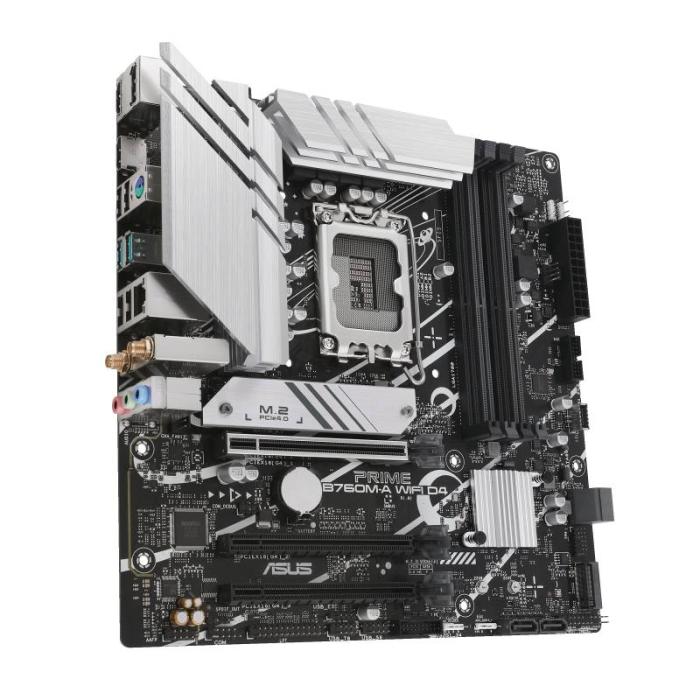

The ASUS PRIME B760M-A WIFI D4 motherboard is a micro ATX board with an LGA 1700 socket, compatible with Intel Core i3, i5, i7 and i9 processors, as well as Pentium Gold and Celeron. It features four DIMM slots for dual-channel DDR4-SDRAM memory, with support for up to 128 GB and clock speeds of up to 5333 MHz. It offers compatibility with RAID 0, 1, 5 and 10 configurations, and supports up to six storage drives between HDDs and SSDs via M.2 and SATA III interfaces. Its unbuffered memory and unavailable ECC compatibility make it suitable for conventional desktop computers. With integrated WiFi connectivity, this motherboard is suitable for compact builds that require performance and flexible storage.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- Supported processor sockets: LGA 1700
Memory
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 4000, 4266, 4400, 4600, 4800, 5000, 5066, 5333 MHz
- Supported memory clock speed (max): 5333 MHz
- Maximum internal memory: 128 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of storage drives supported: 6
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Graphics
- Parallel processing technology support: Not supported
Internal I/O
- USB 2.0 connectors: 3
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3
- Number of SATA III connectors: 4
- S/PDIF out connector: Yes
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 2
- EPS power connector (8-pin): Yes
- Number of COM connectors: 1
- TPM connector: Yes
- 12V power connector: Yes
- RGB LED pin header: Yes

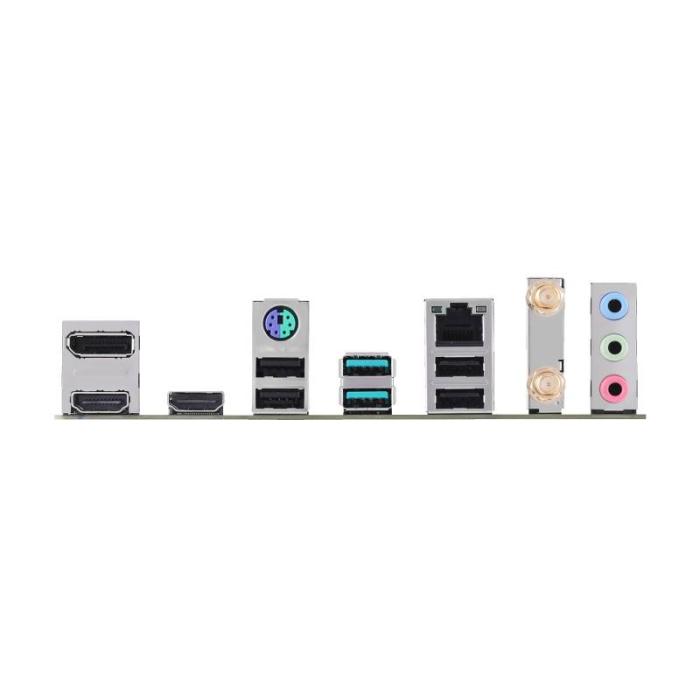

Rear panel I/O ports
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- HDMI ports quantity: 2
- HDMI version: 2.1
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
- Headphone outputs: 3
- Line-in: Yes
- Microphone in: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- Bluetooth: Yes
- Bluetooth version: 5.2
Features
- Motherboard chipset: Intel B760
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: Intel
- Windows operating systems supported: Windows 10 x64, Windows 11
Expansion slots
- PCI Express x16 (Gen 4.x) slots: 3
- Number of M.2 (M) slots: 2
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 128 Mbit
- Clear CMOS button: Yes
Packaging data
- Package width: 275 mm
- Package depth: 275 mm
- Package height: 67.5 mm
- Package weight: 1.4 kg
Weight & dimensions
- Width: 244 mm
- Depth: 244 mm

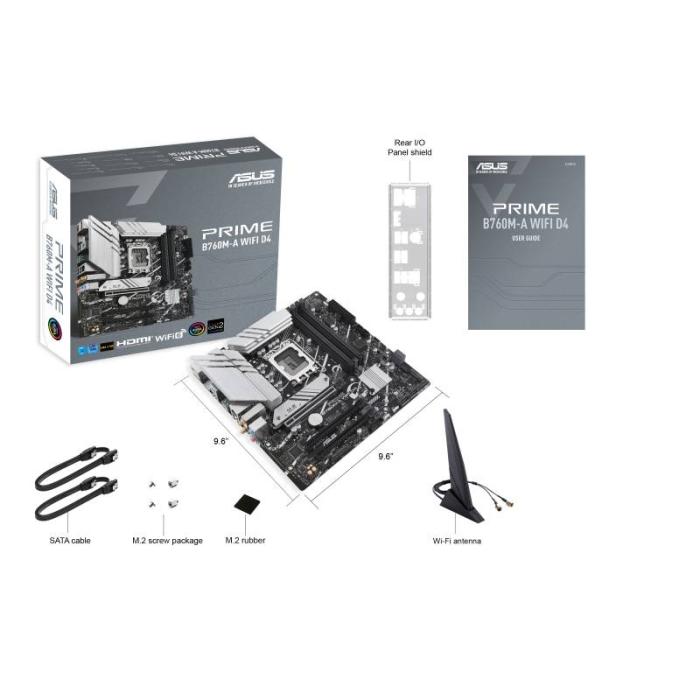

Packaging content
- Cables included: SATA
