Description

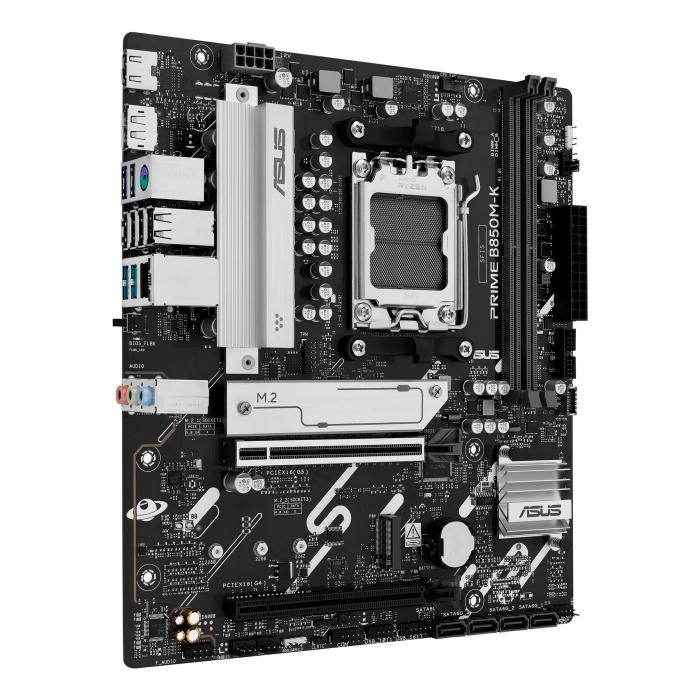

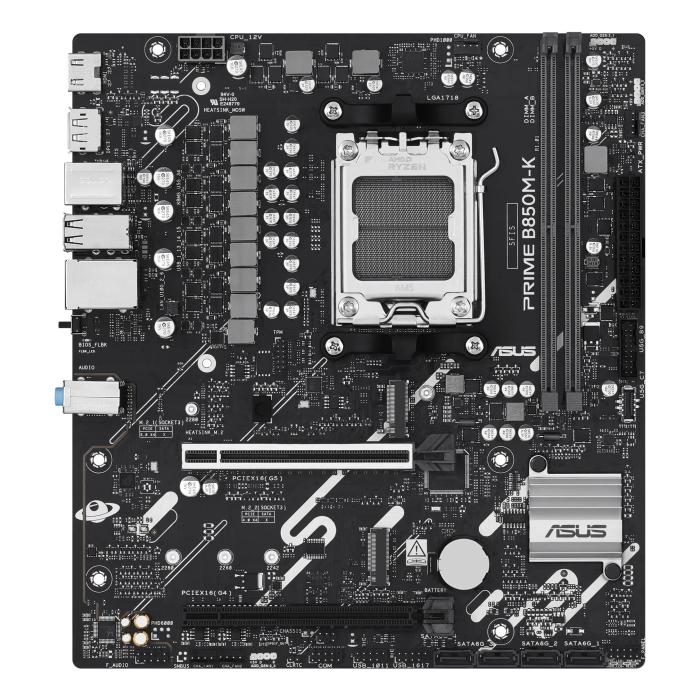

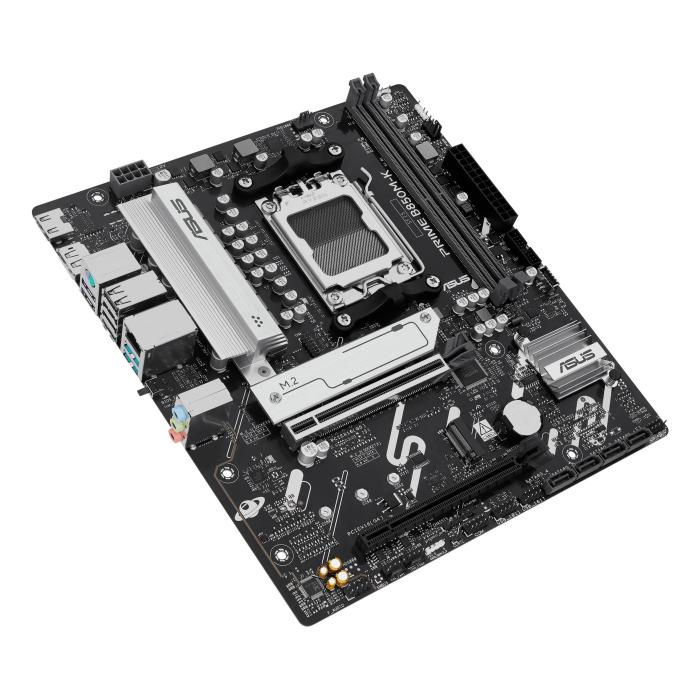

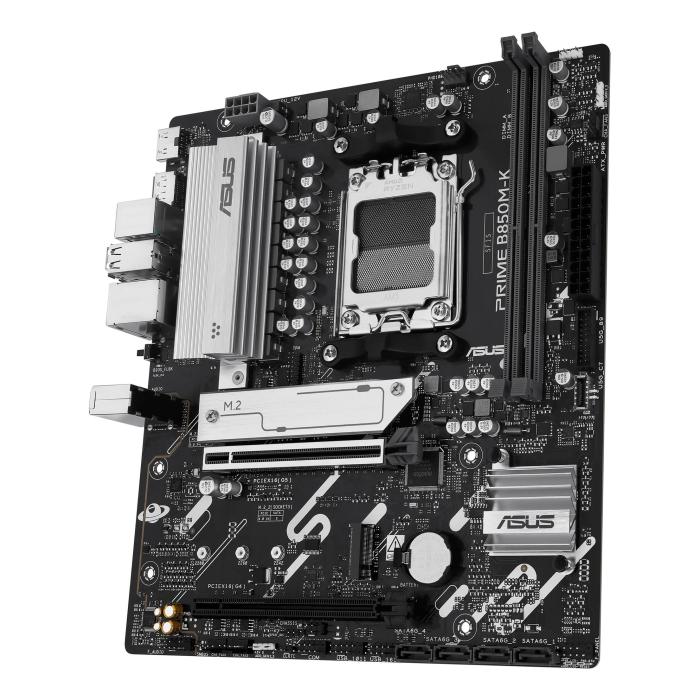

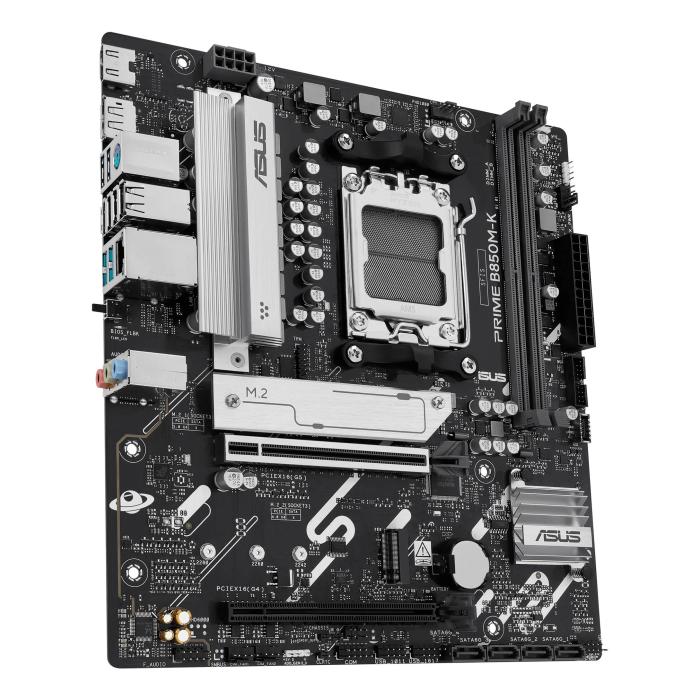

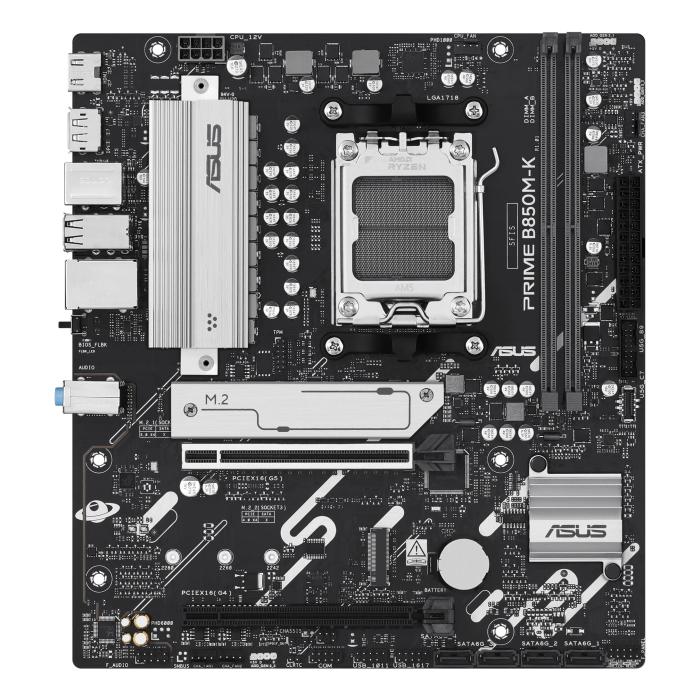

The ASUS PRIME B850M-K motherboard, in black and with a micro ATX form factor, is designed around AMD's AM5 socket. It supports AMD Ryzen 7000 Series, AMD Ryzen 8000 Series and AMD Ryzen 9000 Series processors, so you can build a current configuration on a foundation with room to grow. In the memory department it supports DDR5-SDRAM in two DIMM slots, with a maximum capacity of 128 GB and dual channel operation, as well as being compatible with buffered and unbuffered modules and with ECC and non-ECC memory. For storage it offers M.2 and SATA III interfaces, with support for HDD and SSD drives, up to six compatible drives and four HDDs, and allows RAID configurations at levels 0, 1, 5 and 10. With these credentials, the ASUS PRIME B850M-K fits into compact systems that need disk speed and room for memory expansion without giving up the micro ATX format.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- Supported processor sockets: Socket AM5
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Maximum internal memory: 128 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 6
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Graphics
- Parallel processing technology support: Not supported
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Number of SATA III connectors: 4
- S/PDIF out connector: Yes
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of CPU fan connectors: 1
- Number of chassis fan connectors: 3
- EPS power connector (8-pin): Yes
- Number of COM connectors: 1
- TPM connector: Yes
- 12V power connector: Yes
- RGB LED pin header: Yes

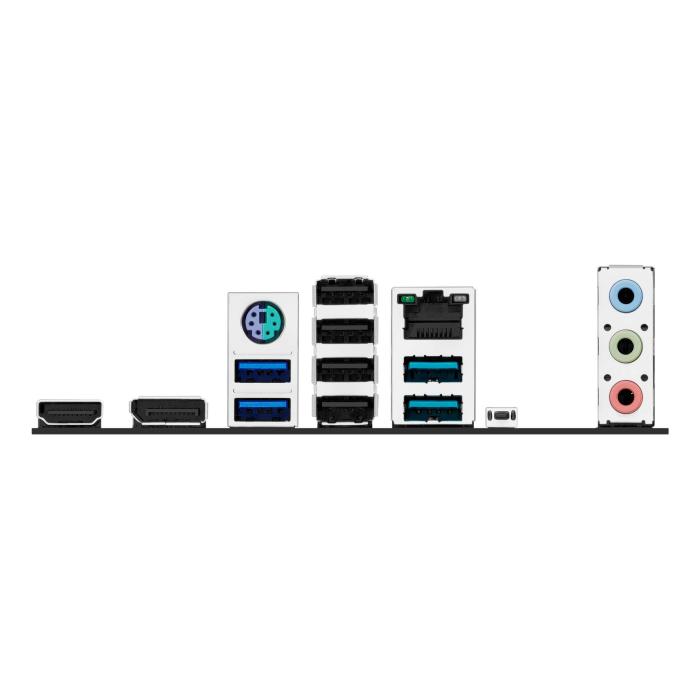

Rear panel I/O ports
- Line-in: Yes
- Microphone in: Yes
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: No
Features
- Motherboard chipset: AMD B850
- Audio output channels: 7.1 channels
- Product colour: Black
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- Cooling type: Passive
- Windows operating systems supported: Windows 10 x64, Windows 11
Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 2
- 1st M.2 largest key size: 2280
- 1st M.2 highest PCI Express generation: 5.0
- 2nd M.2 largest key size: 2280
- 2nd M.2 highest PCI Express generation: 4.0
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
Packaging data
- Package width: 564 mm
- Package depth: 288 mm
- Package height: 297 mm
- Package weight: 1.07 kg
Weight & dimensions
- Width: 244 mm
- Depth: 221 mm

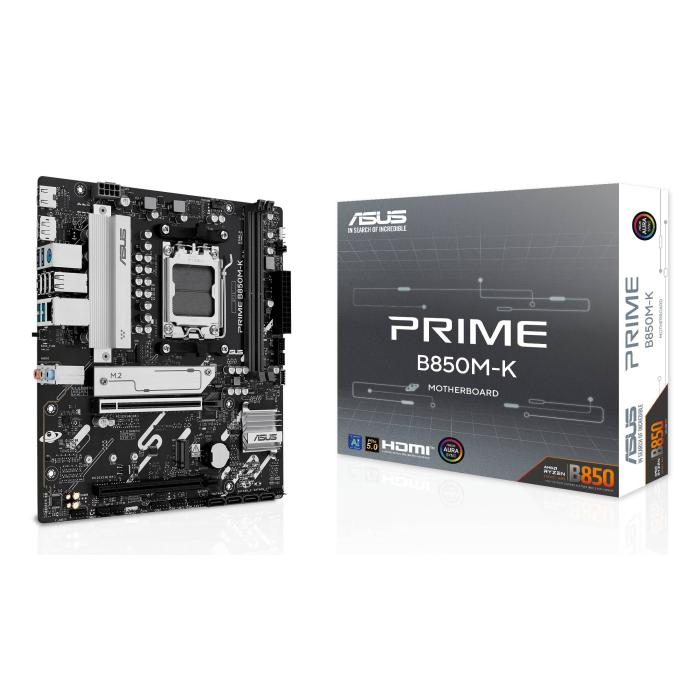

Packaging content
- Cables included: SATA
- Screws included: Yes
