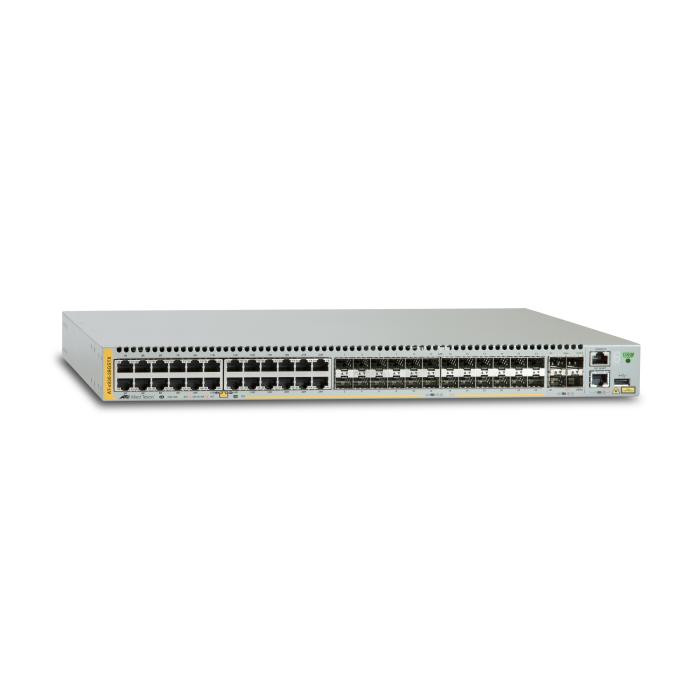

Allied Telesis AT-x930-28GSTX Managed L3 Gigabit Ethernet (10/100/1000) Grey
More info
Brand: ALLIED TELESIS
5,989.09 €
SKU:
112846
PRC:
144738
EAN:
767035199498
PN:
990-003841-00
Description
Allied Telesis AT-x930-28GSTX, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Traffic classification: Yes
- ARP inspection: Yes
- System event log: Yes
- MIB support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Combo SFP ports quantity: 24
- SFP+ module slots quantity: 4
Network
- Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3,
- 10G support: Yes
- Port mirroring: Yes
- Full duplex: Yes
- Policy-based routing: Yes
- Routing entries: 2000
- Link aggregation: Yes
- Spanning tree protocol: Yes
- VLAN support: Yes
- Virtual LAN features: Private VLAN
- Number of VLANs: 4094
Data transmission
- Switching capacity: 288 Gbit/s
- Throughput: 214.3 Mpps
- MAC address table: 64000 entries
- Latency (1 Gbps): 3.7 µs
- Latency (10 Gbps): 2.6 µs
Security
- DHCP features: DHCP server, DHCPv6 relay, DHCPv6 server, DHCP client
- IGMP snooping: Yes
- Security algorithms: 802.1x RADIUS
Multicast features
- Multicast support: Yes
- Multicast MAC address table: 2000 entries
Design
- Rack mounting: Yes
- Stackable: Yes
- Product colour: Grey
- LED indicators: Yes
- Safety: UL60950-1, CAN/CSA-C22.2 No.60950-1-03, EN60950-1, EN60825-1, AS/NZS60950.1, UL, cUL
Performance
- Expansion module support: Yes
- Memory type: DDR-SDRAM
- Internal memory: 2048 MB
- Flash memory: 256 MB
- Noise level: 39.7 dB
- Firmware upgradeable: Yes
Power
- AC input voltage: 90 - 260 V
- AC input frequency: 47/63 Hz
- Power consumption (typical): 97 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -25 - 70 °C
- Operating relative humidity (H-H): 5 - 90%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3048 m
- Heat dissipation: 329 BTU/h
Weight & dimensions
- Width: 440 mm
- Depth: 420 mm
- Height: 44 mm
- Weight: 5.1 kg
