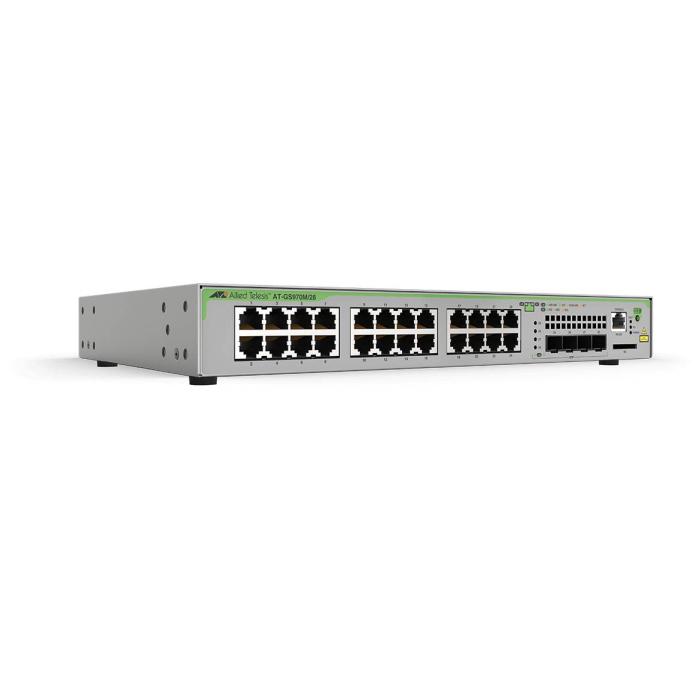

Allied Telesis GS970M Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
More info
Brand: ALLIED TELESIS
908.73 €
757.27 €
without VAT
Stock available: 12 units.
Get it
on the
September 23
/
September 24
SKU:
80350
PRC:
201268
EAN:
767035211329
PN:
990-005793-50
Description
The Allied Telesis GS970M managed switch is an L3 layer switch in 1U grey format, measuring 440 x 44 x 290 mm and weighing 4.7 kg. It features 24 Gigabit Ethernet (10/100/1000) RJ-45 ports, plus 4 SFP combo ports and an RJ-45 console port for configuration. Being managed, it allows web-based administration, system event logging and Quality of Service (QoS) support. In terms of connectivity it supports spanning tree protocol, port mirroring, flow control and link aggregation. Its virtual network management covers Private VLAN, Tagged VLAN, Protocol-based VLAN and Port-based VLAN, with capacity for 2048 VLANs. It also includes ARP inspection to strengthen traffic control.
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- ARP inspection: Yes
- System event log: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Combo SFP ports quantity: 4
- Console port: RJ-45
Network
- Networking standards: IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3
- 10G support: No
- Port mirroring: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Spanning tree protocol: Yes
- VLAN support: Yes
- Virtual LAN features: Private VLAN, Tagged VLAN, Protocol-based VLAN, Port-based VLAN
- Number of VLANs: 2048
Data transmission
- Switching capacity: 56 Gbit/s
- Throughput: 41.7 Mpps
- MAC address table: 16000 entries
- Latency (10-100 Mbps): 8.6 µs
- Latency (1 Gbps): 4.3 µs
- Jumbo frames support: Yes
- Jumbo frames: 10000
- Packet buffer memory: 1.5 MB
Security
- DHCP features: DHCP server, DHCP client
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, DES, MD5, SHA-1, SHA-2, SHA-256
- MAC address filtering: Yes
- SSH/SSL support: Yes
- Loop protection: Yes
- BPDU filtering/protection: Yes
- Authentication: MAC-based authentication, Web-based authentication
Multicast features
- Multicast support: Yes
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Grey
- LED indicators: Yes
Performance
- Memory type: DDR-SDRAM
- Internal memory: 256 MB
- Flash memory: 64 MB
- Noise level: 42 dB
Power
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 520 W
- AC input voltage: 100 - 240 V
Power over Ethernet (PoE)
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 24
- Power over Ethernet plus (PoE+) ports quantity: 12
- Total Power over Ethernet (PoE) budget: 370 W
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 5 - 90%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3000 m
- Non-operating altitude: 0 - 4000 m
- Heat dissipation: 303 BTU/h
Weight & dimensions
- Width: 440 mm
- Depth: 290 mm
- Height: 44 mm
- Weight: 4.7 kg
Packaging data
- Package width: 530 mm
- Package depth: 430 mm
- Package height: 150 mm
- Package weight: 6.35 kg
Logistics data
- Harmonized System (HS) code: 85176990
