Description
Viewsonic PA503S, 3600 ANSI lumens, DLP, SVGA (800x600), 4:3, 762 - 7620 mm (30 - 300''), 1.1 - 13 m
Specifications
Projector
- Screen size compatibility: 762 - 7620 mm (30 - 300")
- Projection distance: 1.1 - 13 m
- Projector brightness: 3600 ANSI lumens
- Projection technology: DLP
- Projector native resolution: SVGA (800x600)
- Native aspect ratio: 4:3
- Number of colours: 1.073 billion colours
- Horizontal scan range: 15 - 102 kHz
- Vertical scan range: 23 - 120 Hz
- Keystone correction, vertical: -40 - 40°
- Matrix size: 1.4 cm (0.55")
- Matrix type: DMD
Light source
- Light source type: Lamp
- Service life of light source: 4500 h
- Service life of light source (economic mode): 15000 h
- Lamp power: 190 W
- Lamps quantity: 1 lamp(s)
Lens system
- Focus: Manual
- Zoom capability: Yes
- Zoom type: Manual
- Optical zoom: 1.1x
- Throw ratio: 1.96 - 2.15:1
Video
- Analog signal format system: NTSC, PAL, PAL 60, SECAM
- 3D Ready: Yes
- Supported graphics resolutions: 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (
- Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

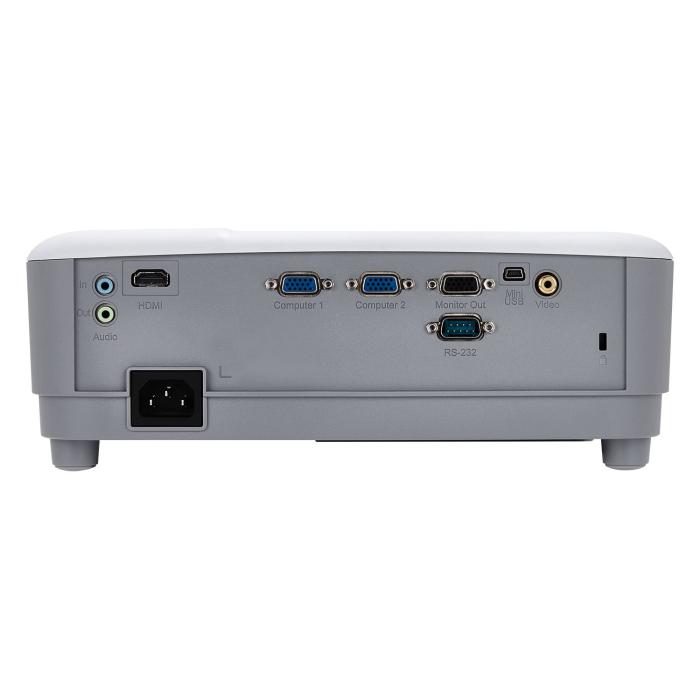

Ports & interfaces
- HDMI connector type: Full-size
- HDMI version: 1.4
- Serial interface type: RS-232
- PC Audio in: Yes
- PC Audio out: Yes
- VGA (D-Sub) ports quantity: 3
- HDMI ports quantity: 1
- Composite video in: 1
- DVI port: No
- AC (power) in: Yes
Network
- Ethernet LAN: No
- Wi-Fi: No
Storage
- Card reader integrated: No
Features
- Certification: FCC (ICES-003), cTUVus
Multimedia
- Built-in speaker(s): Yes
- RMS rated power: 2 W
- Number of built-in speakers: 1
Design
- Product type: Standard throw projector
- Product colour: Grey, White
- Placement: Desktop
- Cable lock slot: Yes
- Cable lock slot type: Kensington
Display
- Built-in display: No
Power
- Power source: AC
- Power consumption (typical): 260 W
- Power consumption (standby): 0.5 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 10 - 90%
- Operating altitude: 0 - 1499 m
Weight & dimensions
- Width: 294 mm
- Depth: 218 mm
- Height: 110 mm
- Weight: 2.2 kg
- Package width: 365 mm
- Package depth: 188 mm
- Package height: 300 mm
- Package weight: 3.24 kg
Packaging content
- Remote control included: Yes
- Cables included: AC, VGA
- Quick start guide: Yes
Logistics data
- Harmonized System (HS) code: 85286200
Other features
- RS-232 ports: 1
