Description

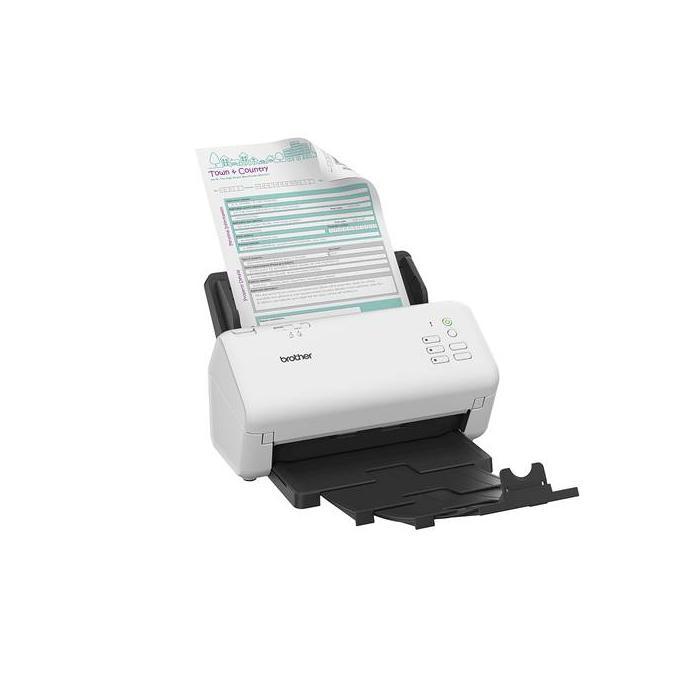

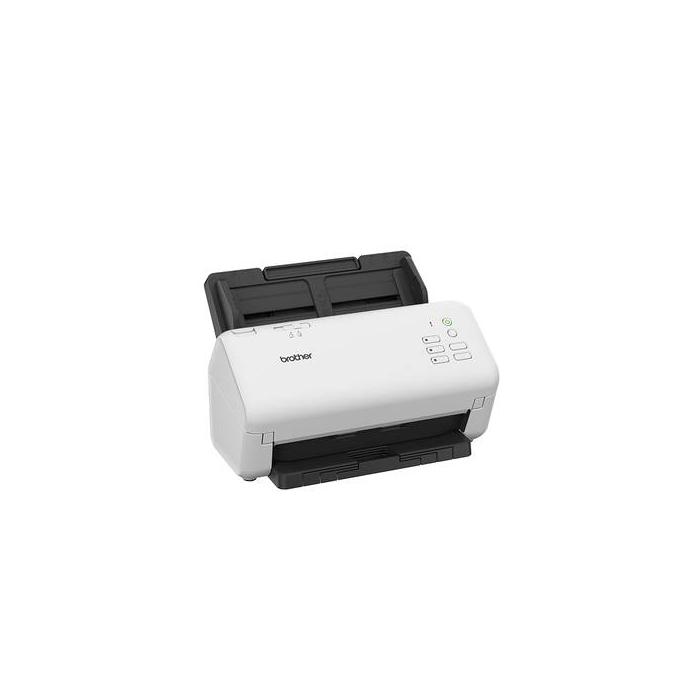

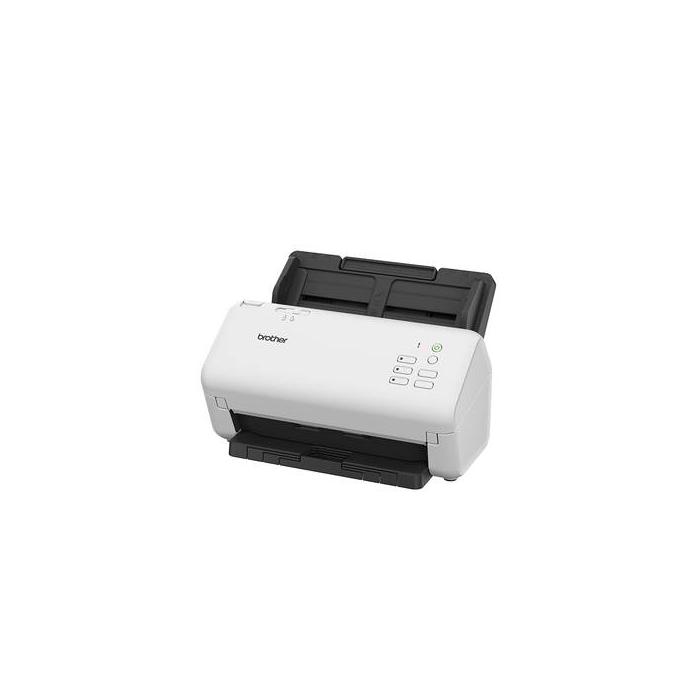

Brother ADS-4300N, 600 x 600 DPI, 1200 x 1200 DPI, 48 bit, 24 bit, 8 bit, 40 ppm
Specifications
Scanning
- Optical scanning resolution: 600 x 600 DPI
- Enhanced scan resolution: 1200 x 1200 DPI
- Colour scanning: Yes
- Duplex scanning: Yes
- Input colour depth: 48 bit
- Output colour depth: 24 bit
- Output greyscale depth: 8 bit
- Greyscale levels: 256
- ADF scan speed (b/w, A4): 40 ppm
- ADF scan speed (colour, A4): 40 ppm
- Duplex ADF scan speed (b/w, A4): 80 ipm
- Duplex ADF scan speed (colour, A4): 80 ipm
Design
- Scanner type: ADF scanner
- Product colour: Black, White
- Control type: Buttons
- Built-in display: No
Performance
- Sensor type: Dual CIS
- Light source: LED
- Scan file formats: JPEG, PDF, TIFF
- Daily duty cycle (max): 6000 pages
- Maximum duty cycle: 120000 pages per month
- Scan to: FTP, Image, PC, SMB, USB
- Scan drivers: ICA, SANE, TWAIN, WIA
- Scanning noise level: 59 dB
Input capacity
- Auto document feeder (ADF) input capacity: 80 sheets
Paper handling
- Scanning media types supported: Business Card, Plain paper, Plastic Card, Recycled paper, Thick paper, Thin paper
- Maximum ISO A-series paper size: A4
- Card thickness (max): 1.1 mm
- Paper tray media weight: 40 - 200 g/m²
- Auto Document Feeder (ADF) media weight: 40 - 200 g/m²
- Maximum scan width: 21.6 cm
- Maximum scan length: 5 m
Ports & interfaces
- USB port: Yes
- USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)
Network
- Ethernet LAN: Yes
- Security algorithms: EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, HTTPS, PEAP, SMTP-AUTH, SNMPv3, SSL/TLS
- Supported network protocols (IPv6): RA, DNS Resolver, mDNS, LLMNR responder, Web Services(Scan), SNTP Client, HTTP/HTTPS server, ICMPv6
- Supported network protocols (IPv4): DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR respo
- IPv6 support: Yes
- Supported network protocols: DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR respo
Power
- Power supply type: AC
- Power consumption (typical): 24 W
- Power consumption (standby): 6.8 W
- Power consumption (off): 0.1 W
- AC input frequency: 50 - 60 Hz
- Power consumption (sleep): 1.7 W
- Output voltage: 24 V
- Output current: 1.9 A
Weight & dimensions
- Width: 243 mm
- Depth: 320 mm
- Height: 391 mm
- Weight: 3.09 kg
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 391 mm
- Package depth: 320 mm
- Package height: 243 mm
- Package weight: 3.74 kg
Packaging content
- Cables included: AC, USB
Sustainability
- Sustainability compliance: Yes
System requirements
- Server operating systems supported: Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
- Windows operating systems supported: Yes
- Mac operating systems supported: Yes
- Linux operating systems supported: Yes
Operational conditions
- Operating temperature (T-T): 5 - 35 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 20 - 80%
- Storage relative humidity (H-H): 10 - 90%
Other features
- Compliance certificates: RoHS
- Certification: GS Mark ISIS WHQL KofaxTM 5,10 VRS Elite 5.2.0 Kofax Express 3.3.0
- Spare part retention: 5 year(s)
Technical details
- Pallet type: 800 x 1200 mm
Logistics data
- Products per pallet: 40 pc(s)
- Country of origin: China
- Master (outer) cases per pallet: 40 pc(s)
- Layers per pallet: 5 pc(s)
- Pallet gross weight: 166.4 kg
- Pallet gross height: 17.8 cm
- Master (outer) cases per pallet layer: 8 pc(s)
- Harmonized System (HS) code: 84716070
