Description

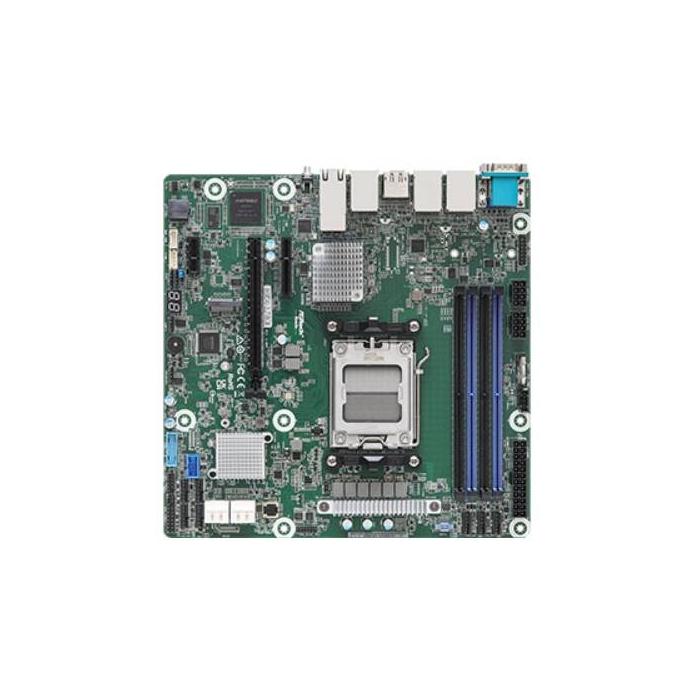

ASROCK B650D4U-2L2T/BCM motherboard in micro ATX form factor for Socket AM5, compatible with AMD Ryzen 3 and Ryzen 5 processors. Supports up to 32 GB of DDR5-SDRAM memory across its 4 DIMM slots, with speeds of 3600 and 5200 MHz, and supports ECC and non-ECC modules. Includes integrated Aspeed AST2600 graphics and storage via M.2 and SATA III interfaces, with RAID levels 0, 1, and 10. Features 8-pin EPS and 24-pin ATX power connectors, along with a memory voltage of 1.1 V, ideal for basic server or workstation configurations.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Compatible processor series: AMD Ryzen™ 3, AMD Ryzen™ 5
- Maximum number of SMP processors: 1
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory voltage: 1.1 V
- ECC сompatibility: ECC & Non-ECC
- Supported memory clock speeds: 3600, 5200 MHz
- Supported memory clock speed (max): 5200 MHz
- Maximum internal memory: 32 GB
Storage controllers
- Supported storage drive interfaces: M.2, SATA III
- RAID support: Yes
- RAID levels: 0, 1, 10
Graphics
- On-board graphics card model: Aspeed AST2600
Internal I/O
- Number of SATA III connectors: 4
- ATX Power connector (24-pin): Yes
- EPS power connector (8-pin): Yes
- Number of COM connectors: 1
- TPM connector: Yes

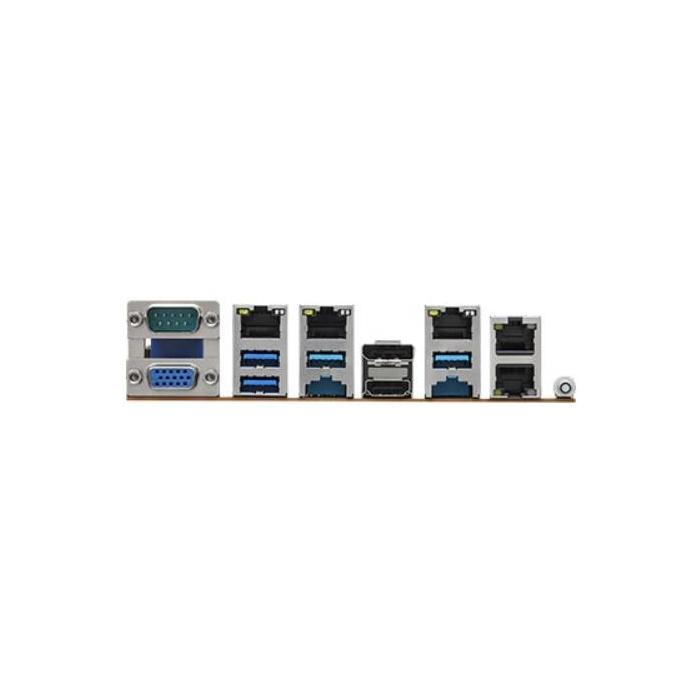

Rear panel I/O ports
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- Ethernet LAN (RJ-45) ports: 4
- IPMI LAN (RJ-45) port: Yes
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- Serial ports quantity: 1
Network
- Ethernet LAN: Yes
- Wi-Fi: No
Features
- Component for: Server
- Motherboard form factor: micro ATX
- Motherboard chipset family: AMD
- Motherboard chipset: AMD B650 Express
- PC health monitoring: CPU, Fan, Voltage
Expansion slots
- PCI Express x4 (Gen 4.x) slots: 1
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- ACPI version: 6.4
- Clear CMOS jumper: Yes
- System management BIOS (SMBIOS) version: 3.5
Operational conditions
- Storage temperature (T-T): -40 - 70 °C
- Operating temperature (T-T): 10 - 35 °C
- Operating relative humidity (H-H): 20 - 90%
Weight & dimensions
- Width: 243.8 mm
- Depth: 243.8 mm
