Description

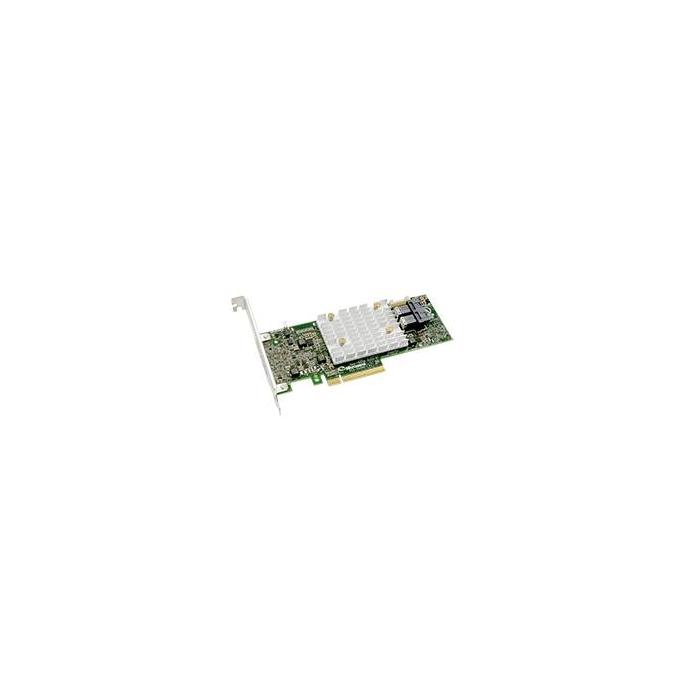

SmartRAID 3152-8i, 12Gbps, 8x PCI-E 3.0
Specifications
Ports & interfaces
- Supported storage drive interfaces: SAS
- Host interface: PCI Express x8
- PCI Express slots version: 3.0
- PCI Card form factor: Half-height (low-profile)
- Internal mini-SAS HD ports: 2
Performance
- RAID levels: 0,1,5,6,10,50,60
- RAID Level Migration: Yes
- Data transfer rate: 12 Gbit/s
- SSD support: Yes
- Internal memory: 2048 MB
- Internal memory type: DDR4
- Memory clock speed: 2100 MHz
- S.M.A.R.T. support: Yes
- Hot-Plug support: Yes
- Mean time between failures (MTBF): 1370000 h
- Certification: CE, FCC, UL, C-tick, VCCI, KCC, CNS
System requirements
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
Operational conditions
- Operating temperature (T-T): 0 - 55 °C
Weight & dimensions
- Width: 167 mm
- Height: 64 mm
