Description

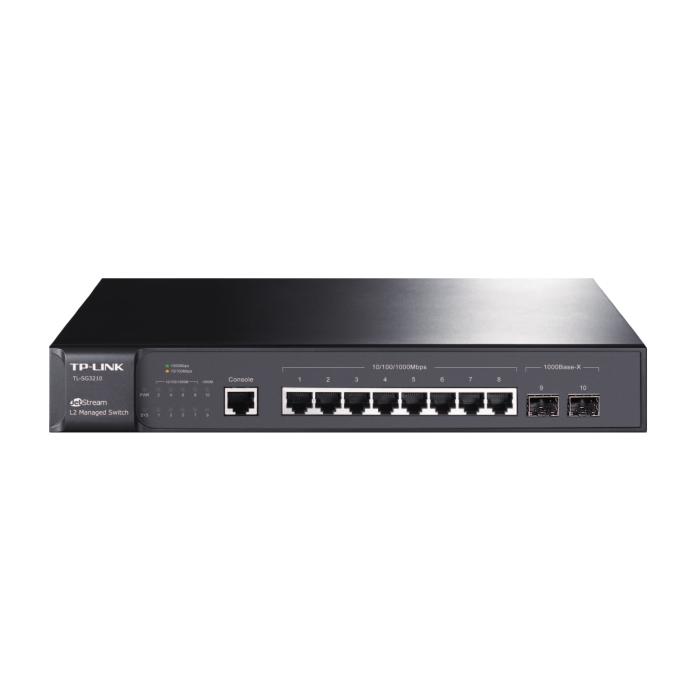

TP-Link JetStream 8-Port Gigabit L2 Managed Network Switch with 2 SFP Slots, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- System event log: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 8
- SFP module slots quantity: 2
- Console port: RJ-45
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.
- Port mirroring: Yes
- Full duplex: Yes
- Half duplex: Yes
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- Spanning tree protocol: Yes
- VLAN support: Yes
- Virtual LAN features: MAC address-based VLAN, Multicast VLAN, Port-based VLAN, Protocol-based VLAN
- Number of VLANs: 4000
Data transmission
- Switching capacity: 20 Gbit/s
- Forwarding rate: 14.9 Mpps
- MAC address table: 8000 entries
- Jumbo frames support: Yes
- Jumbo frames: 10240
Security
- DHCP features: DHCP Option 82, DHCP client, DHCP snooping
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Static port security: Yes
- SSH/SSL support: Yes
Multicast features
- Multicast support: Yes
Protocols
- GARP VLAN Registration Protocol (GVRP): Yes
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Black
- LED indicators: Yes
Performance
- Firmware upgradeable: Yes
- Fanless: Yes
- Minimum system requirements: Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux.
Power
- Power source: AC
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
Other features
- Dimensions (WxDxH): 294 x 180 x 44 mm
- Connectivity technology: Wired
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 294 mm
- Depth: 180 mm
- Height: 44 mm
Packaging content
- Quick start guide: Yes
- Rack mount kit: Yes
Packaging data
- Package width: 400 mm
- Package depth: 275 mm
- Package height: 80 mm
- Package weight: 2.57 kg
Certificates
- Certification: CE, FCC, RoHS
Logistics data
- Harmonized System (HS) code: 85176990
