Name: ATEN 2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder
Brand: ATEN
Price: 223.64 EUR
Availability: InStock

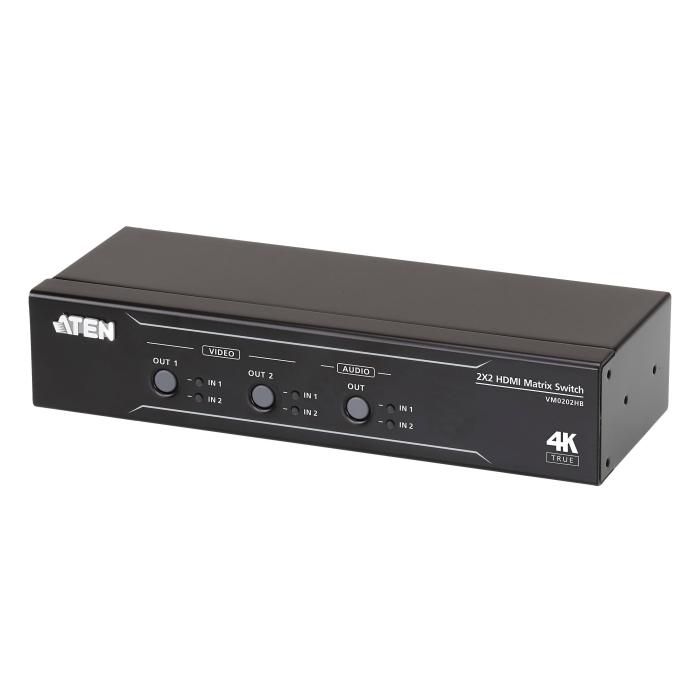

ATEN 2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder

Brand: ATEN

223.64 €

181.82 € without VAT

Description

ATEN 2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder, AV matrix switcher, 18 Gbit/s, 600 MHz, 4096 x 2160 pixels, 4096 x 2160, 3840 x 2160, Black

Specifications

Features

Product type: AV matrix switcher
Data transfer rate: 18 Gbit/s
Maximum pixel clock: 600 MHz
Maximum resolution: 4096 x 2160 pixels
HDCP: Yes
HDCP version: 2.2
3D: Yes
Firmware upgradeable: Yes
Extended display identification data (EDID): Yes
Supported resolutions: 4096 x 2160, 3840 x 2160

Design

Housing colour: Black
Housing material: Metal
Rack mounting: Yes

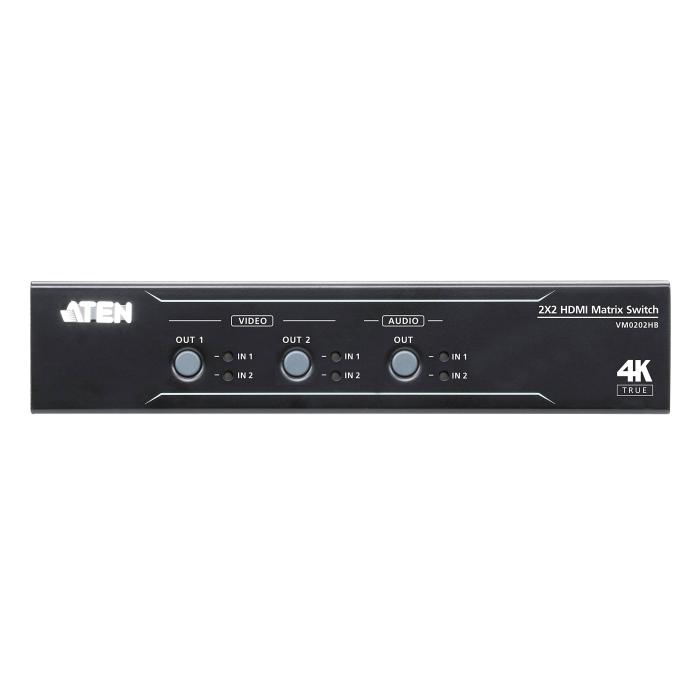

Control type: Buttons
LED indicators: Yes
Remote control included: Yes

Display

Built-in display: No

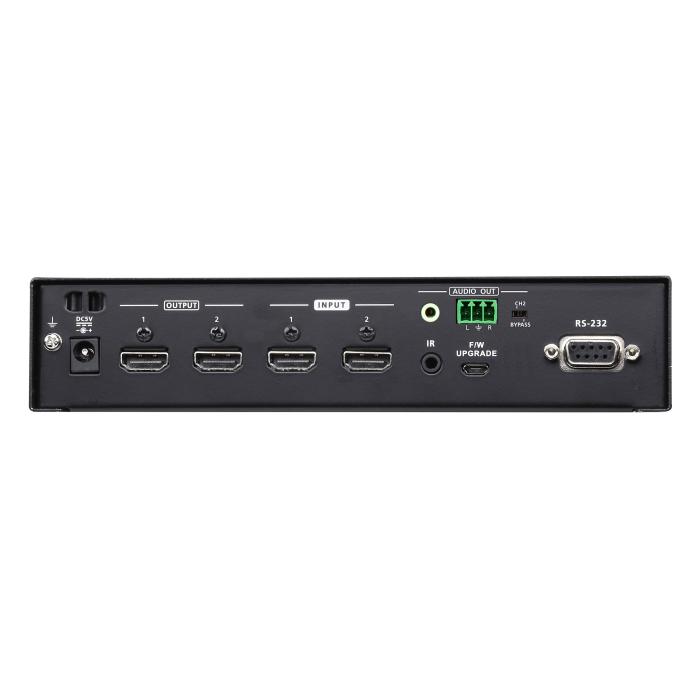

Ports & interfaces

HDMI input ports quantity: 2
HDMI output ports quantity: 2
USB connector type: Micro-USB
USB ports quantity: 1
RS-232 ports: 1
Remote (IR) input: 1
DC-in jack: Yes

Power

Power consumption (typical): 2.47 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%
Storage relative humidity (H-H): 0 - 80%

Logistics data

Products per master (outer) case: 5 pc(s)
Master (outer) case gross weight: 5.25 kg
Master (outer) case length: 325 mm
Master (outer) case width: 250 mm
Master (outer) case height: 175 mm
Master (outer) case net weight: 4.25 kg
Harmonized System (HS) code: 85299097

Weight & dimensions

Width: 200 mm
Depth: 76 mm
Height: 42 mm
Weight: 850 g
Package width: 59 mm
Package depth: 239 mm
Package height: 160 mm
Package weight: 1 kg

Packaging content

Rack mount kit: Yes
Quick start guide: Yes
AC adapter included: Yes
IR receiver included: Yes
